Unit · AXIAL-PISTON MOTOR
A6VMN107HA1/60W-PXB010A-SR909603461
Axial piston motor Bosch Rexroth series A6VM, type code A6VMN107HA1/60W-PXB010A-S, material number R909603461. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R909603461
- Type code
- A6VMN107HA1/60W-PXB010A-S
- Group
- A6VMN 107
- Edition
- 06/2020

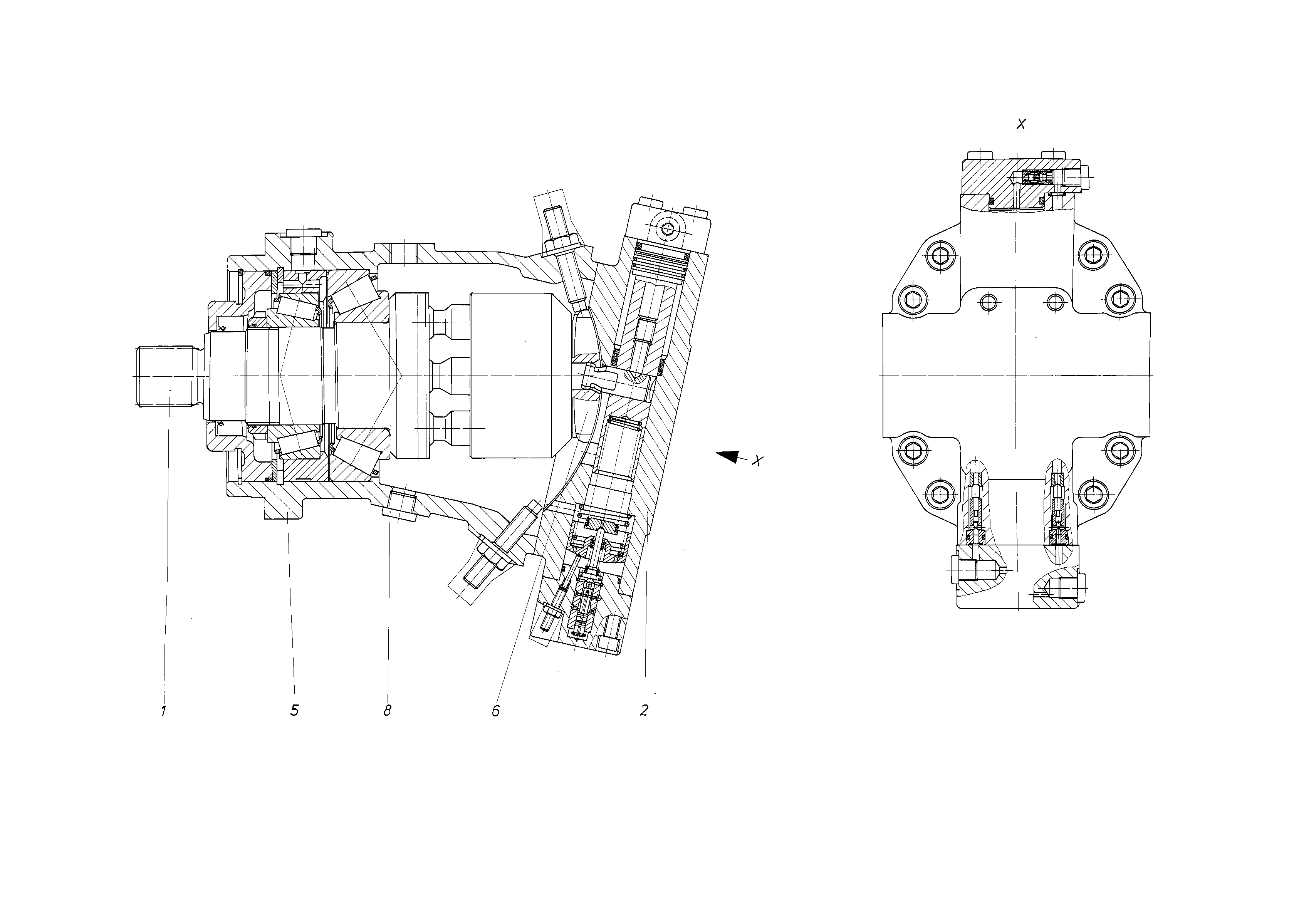

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909446304 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909446971 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909431117 | HOUSING | 1 | |
| 6 | R909921788 | CONTROL LENS | 1 | |
| 8 | R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 107 | 107 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
