Unit · AXIAL-PISTON MOTOR
A6VE107HZ/62W-NVL020B-SR909603561
Axial piston motor Bosch Rexroth series A6VM, type code A6VE107HZ/62W-NVL020B-S, material number R909603561. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909603561
- Type code
- A6VE107HZ/62W-NVL020B-S
- Group
- A6VE 107
- Edition
- 06/2020

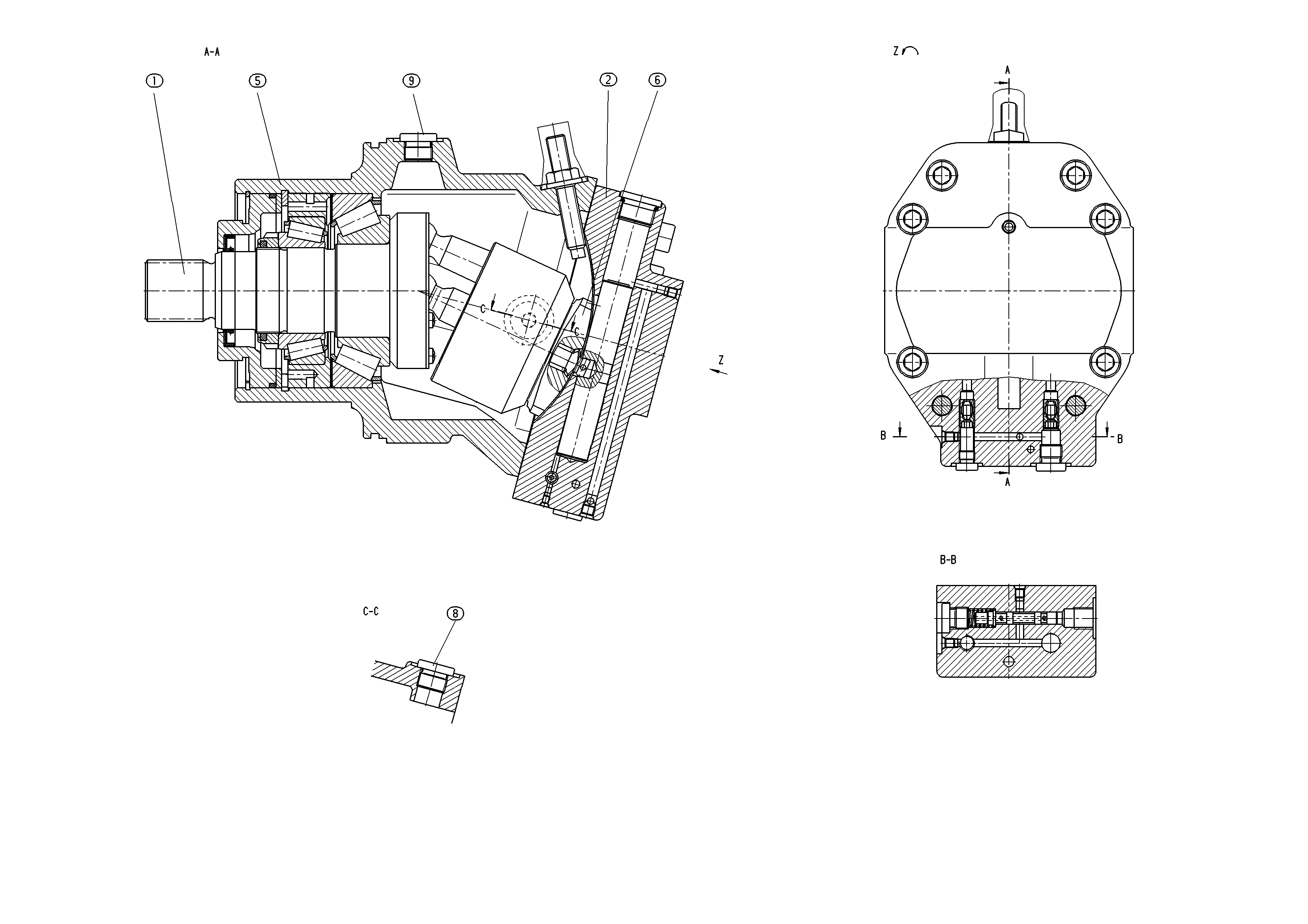

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437257 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909442112 | CONTROL Assembly parts list →L | 1 | ||
| R909435910 | HOUSING | 1 | ||
| R909921788 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 107 | 107 |
| Control device | Two-point control, hydraulic | HZ |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
