Unit · AXIAL-PISTON PUMP
A7VTO80LRDG/61L-WZB01R909603894
Axial piston pump Bosch Rexroth series A7VTO, type code A7VTO80LRDG/61L-WZB01, material number R909603894.
- Number
- R909603894
- Type code
- A7VTO80LRDG/61L-WZB01
- Group
- A7VTO 80
- Edition
- 06/2020

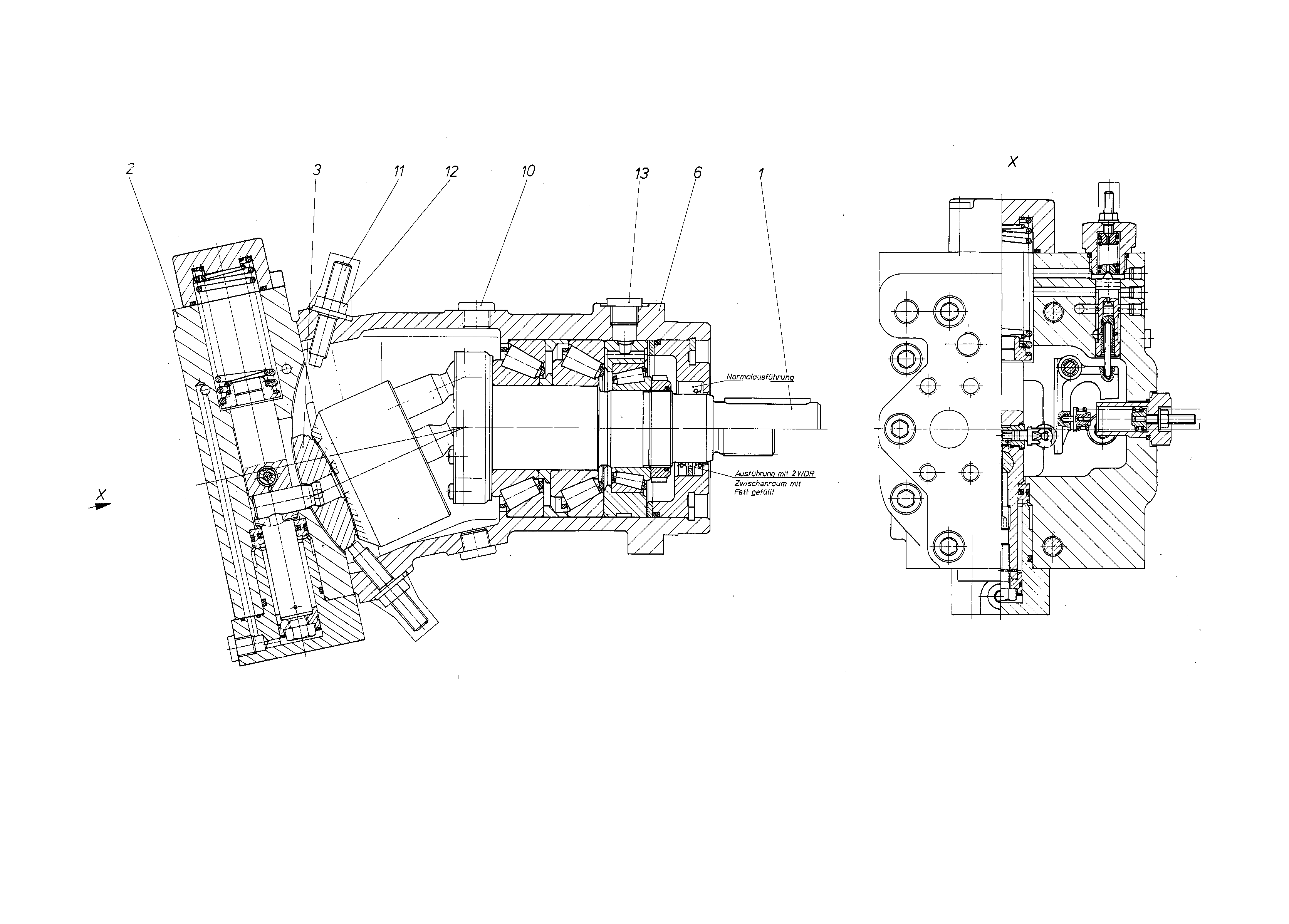

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909603901 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909603896 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650452 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| R909412269 | HOUSING | 1 | ||
| R909156651 | SCREW PLUGD | 2 | ||
| 11 | R909447152 | SETSCREW Assembly parts list →L | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909156651 | SCREW PLUGD | 1 |
