Unit · AXIAL-PISTON MOTOR
A6VM160HD1D/60W-PAB380B-SKR909603993
Axial piston motor Bosch Rexroth series A6VM, type code A6VM160HD1D/60W-PAB380B-SK, material number R909603993. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: port plate with 1-stage pressure relief valves Without valve 0 (pilot operated) for mounting a counterbalance valve MHB 38 (380). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909603993
- Type code
- A6VM160HD1D/60W-PAB380B-SK
- Group
- A6VM 160
- Edition
- 06/2020

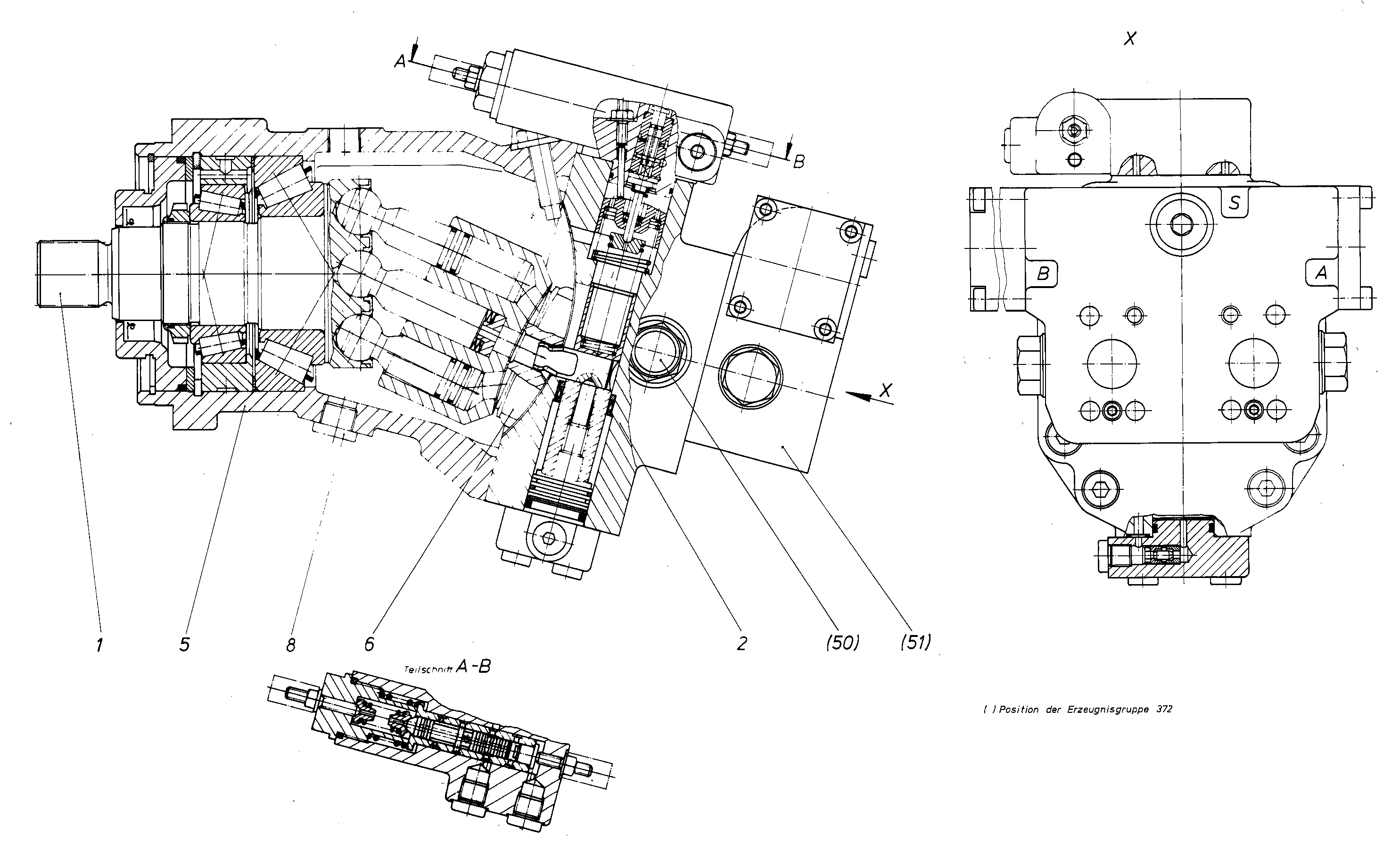

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909603994 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902603807 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 | ||
| R909831641 | DUMMY | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | Port plate with 1-stage pressure relief valves Without valve 0 (pilot operated) for mounting a counterbalance valve MHB 38 | 380 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
