Unit · AXIAL-PISTON MOTOR
A6VE160HD2/61W-NAL010DBR909604548
Axial piston motor Bosch Rexroth series A6VM, type code A6VE160HD2/61W-NAL010DB, material number R909604548. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, hydraulic ΔpSt = 25 bar (HD2). Direction of rotation: viewed on drive shaft variable (W). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909604548
- Type code
- A6VE160HD2/61W-NAL010DB
- Group
- A6VE 160
- Edition
- 06/2020

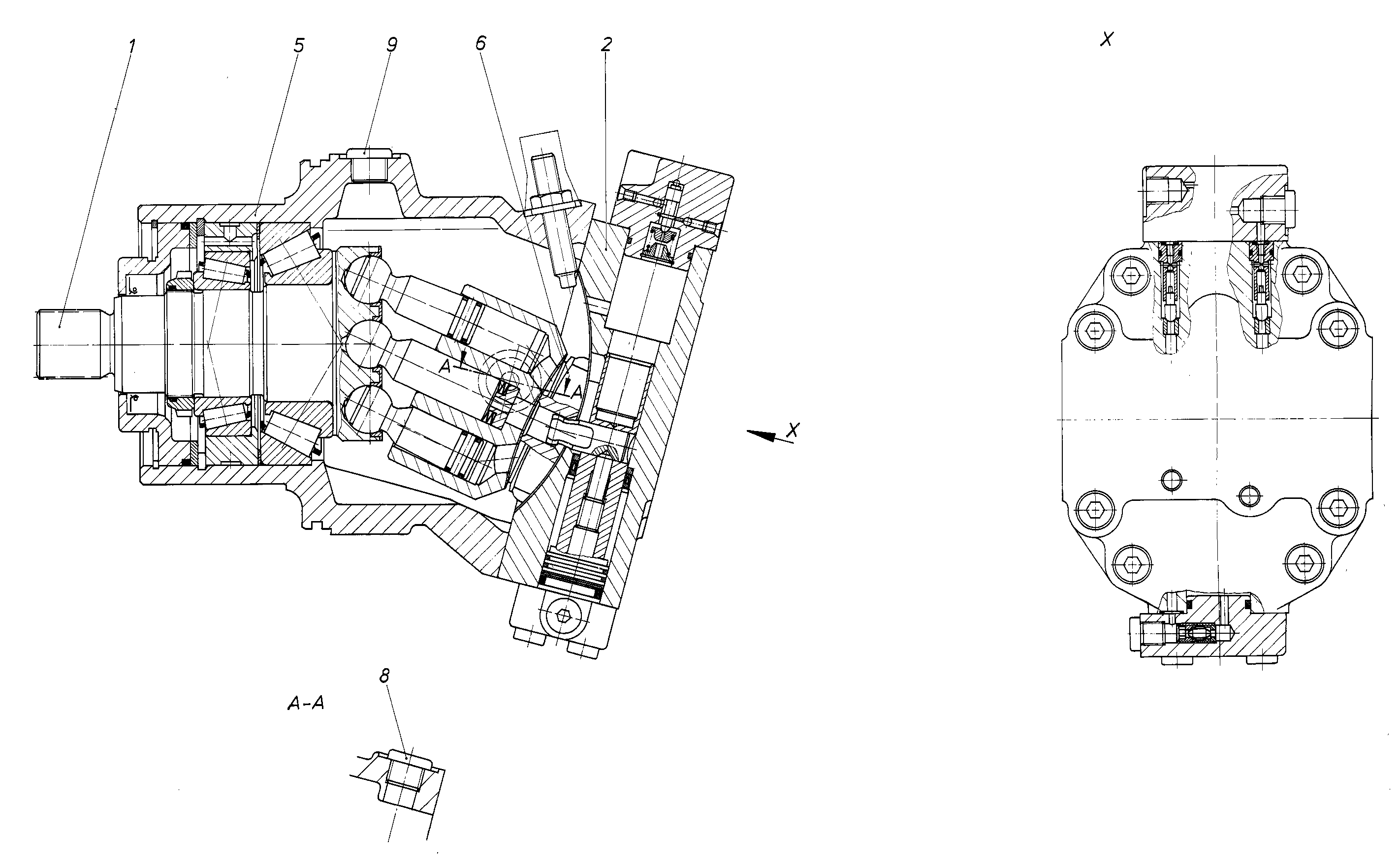

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434125 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909420725 | CONTROL Assembly parts list →L | 1 | ||
| R909436776 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, hydraulic ΔpSt = 25 bar | HD2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
