Unit · AXIAL-PISTON MOTOR
AA6VM160EP2D/60W-PSD520BR909604652

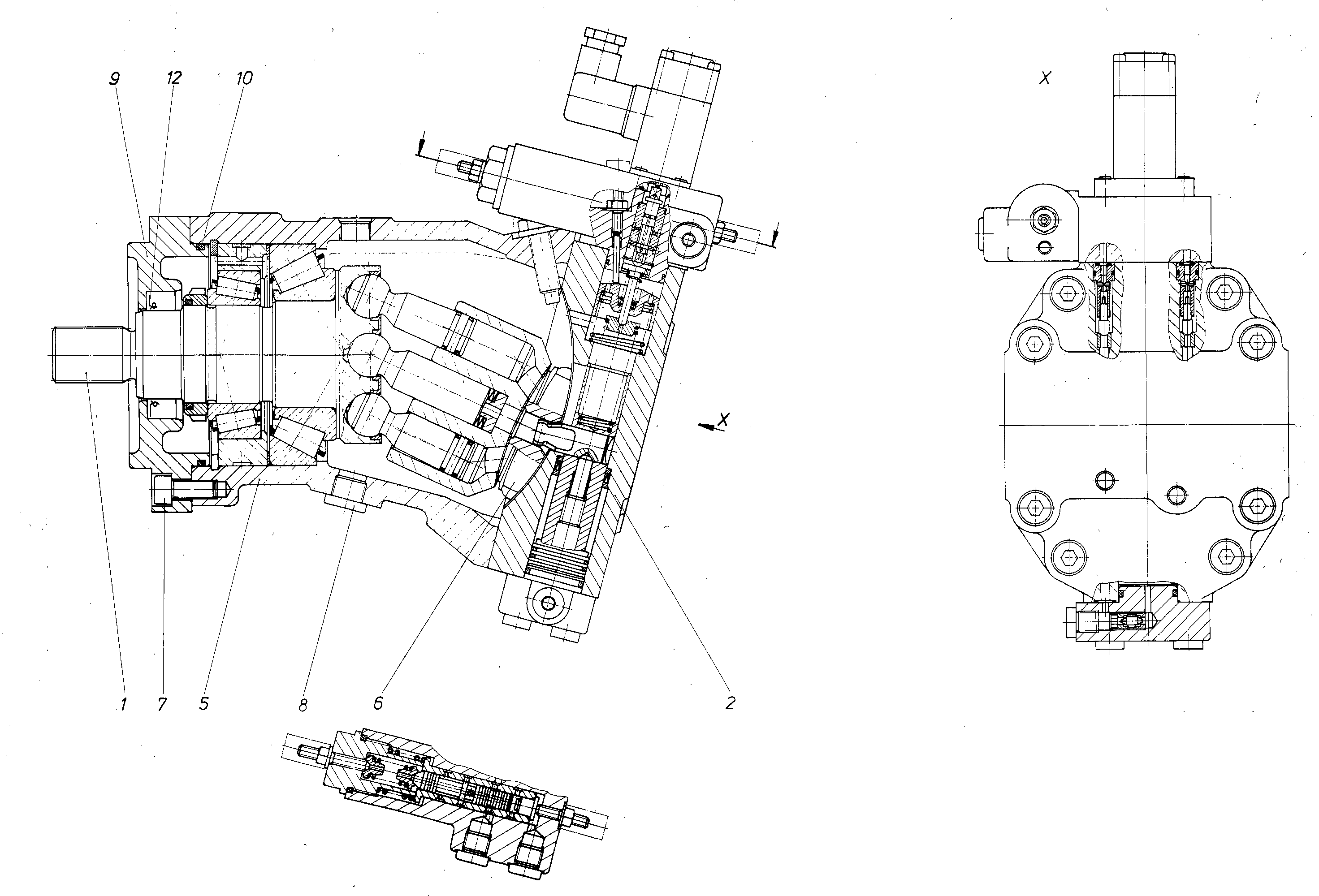

Axial piston motor Bosch Rexroth series A6VM, type code AA6VM160EP2D/60W-PSD520B, material number R909604652. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft bidirectional (W). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909604652
- Type code
- AA6VM160EP2D/60W-PSD520B
- Group
- A6VM 160
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414757 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909604651 | CONTROL Assembly parts list →L | 1 | ||
| R909416970 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909422226 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083832 | O-RINGD | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 52 | 520 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
