Unit · AXIAL-PISTON MOTOR
A6VM28DA1/60W-NZB026BR909605235
Axial piston motor Bosch Rexroth series A6VM, type code A6VM28DA1/60W-NZB026B, material number R909605235. Nominal size: NG 28. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: automatic control speed-related, negative control electr. travel direction valve + U = 12 V electr. Vg max override (DA1). Swivel angle detection: neutral position switch (N). Stroking time damping: without damping (standard with HP and EP) (0).
- Number
- R909605235
- Type code
- A6VM28DA1/60W-NZB026B
- Group
- A6VM 28
- Edition
- 06/2020

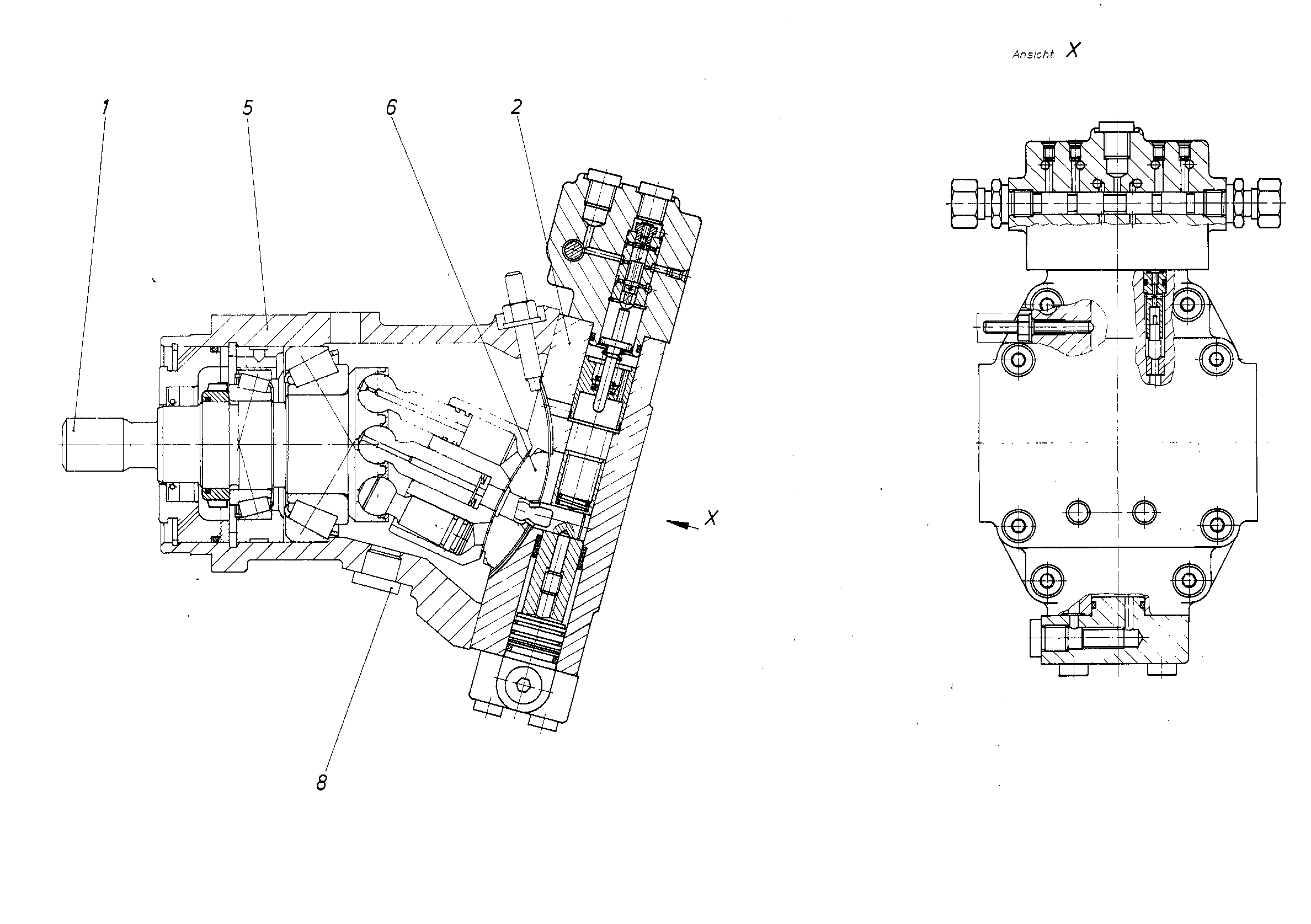

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416234 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909427669 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909420492 | HOUSING | 1 | |
| 6 | R909427742 | CONTROL LENS | 1 | |
| 8 | R909153816 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 28 | 28 |
| Control device | Automatic control speed-related, negative control electr. travel direction valve + U = 12 V electr. Vg max override | DA1 |
| Swivel angle detection | Neutral position switch | N |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | 26 | 26 |
