Unit · AXIAL-PISTON MOTOR
A6VE28HA1U/61W-PAL020AR909605241
Axial piston motor Bosch Rexroth series A6VM, type code A6VE28HA1U/61W-PAL020A, material number R909605241. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R909605241
- Type code
- A6VE28HA1U/61W-PAL020A
- Group
- A6VE 28
- Edition
- 06/2020

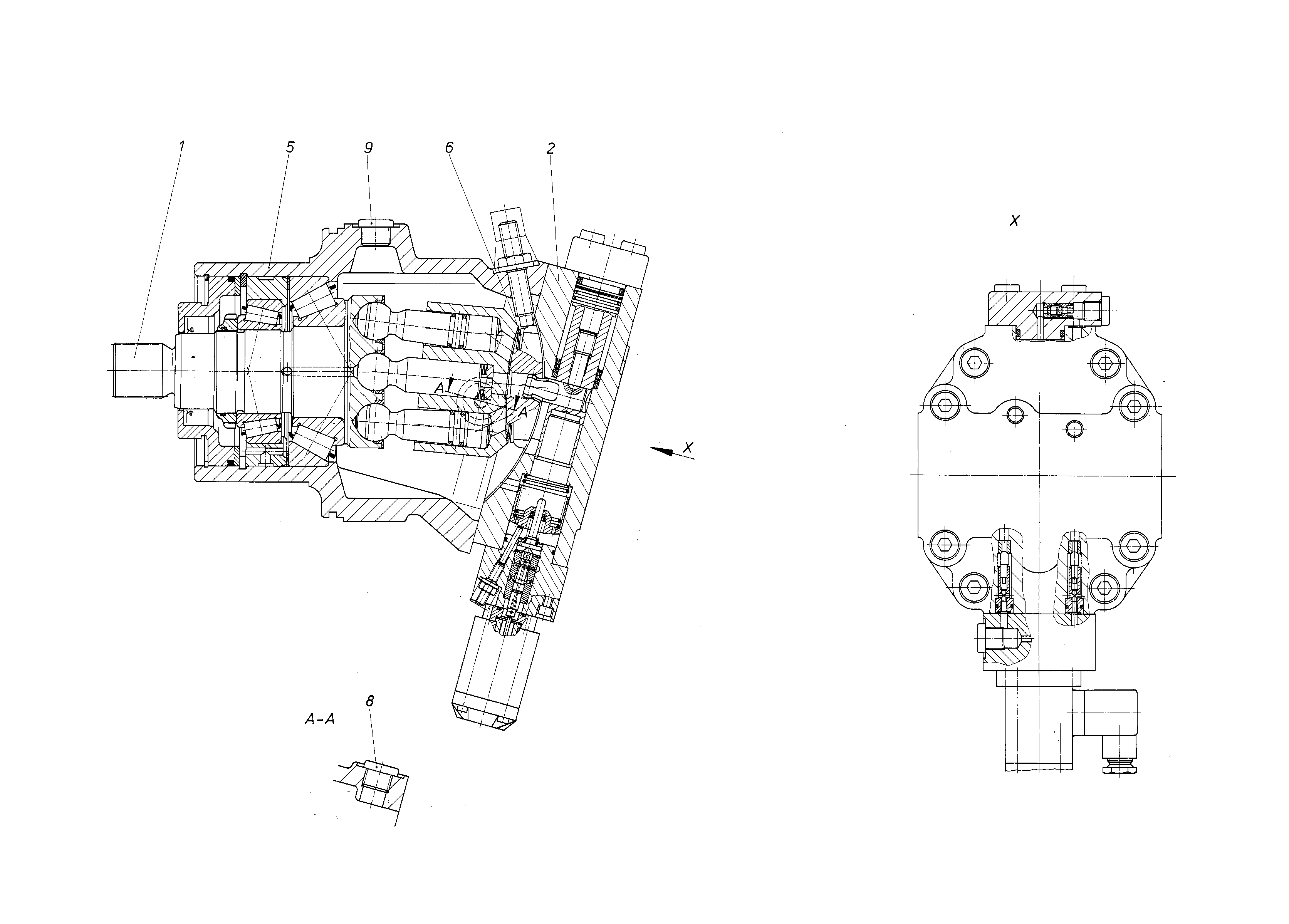

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909425017 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909433603 | CONTROL Assembly parts list →L | 1 | |
| 5 | R909445112 | HOUSING | 1 | |
| 6 | R909921785 | CONTROL LENS | 1 | |
| 8 | R909153816 | SCREW PLUGD | 1 | |
| 9 | R909153816 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 28 | 28 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
