Unit · AXIAL-PISTON MOTOR
A6VM107HDX/60W-PAB027B-SR909605753
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107HDX/60W-PAB027B-S, material number R909605753. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909605753
- Type code
- A6VM107HDX/60W-PAB027B-S
- Group
- A6VM 107
- Edition
- 06/2020

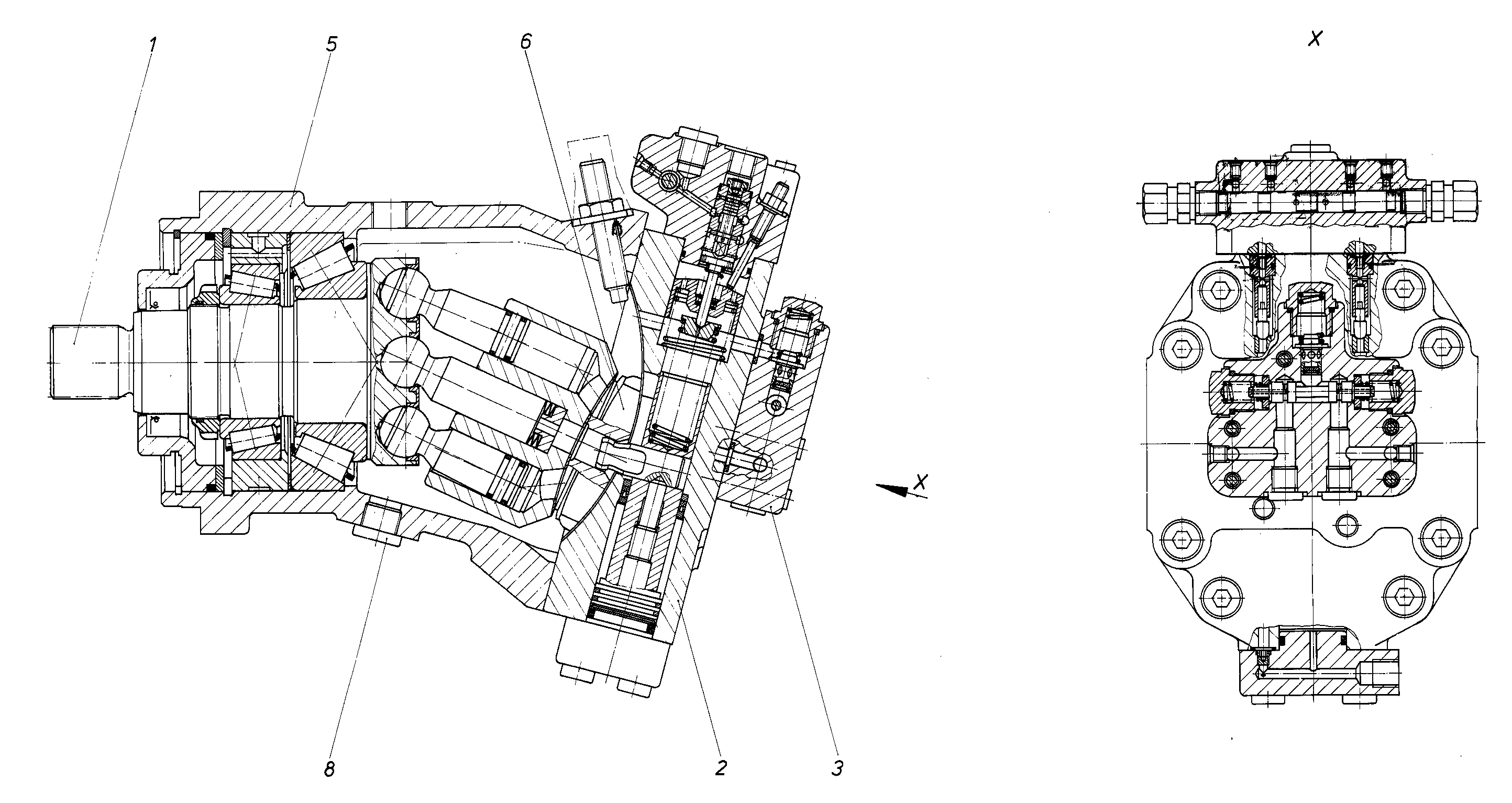

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420627 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909605754 | CONTROL Assembly parts list →L | 1 | ||
| R909420889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R909412761 | HOUSING | 1 | ||
| R909921788 | CONTROL LENS | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
