Unit · AXIAL-PISTON PUMP
AA11VLO200LG2DH6/11R-NXDXXKXX-SR909607657
Axial piston pump Bosch Rexroth series A11VO, type code AA11VLO200LG2DH6/11R-NXDXXKXX-S, material number R909607657. Nominal size: NG 200. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: with override pilot-pressure related positive control, with pressure cut-off (LG2D). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Mounting flange: SAE J744 ‒ 4-hole (D). Standard/special version: special version (S).
- Number
- R909607657
- Type code
- AA11VLO200LG2DH6/11R-NXDXXKXX-S
- Group
- A11VLO 200
- Edition
- 06/2020

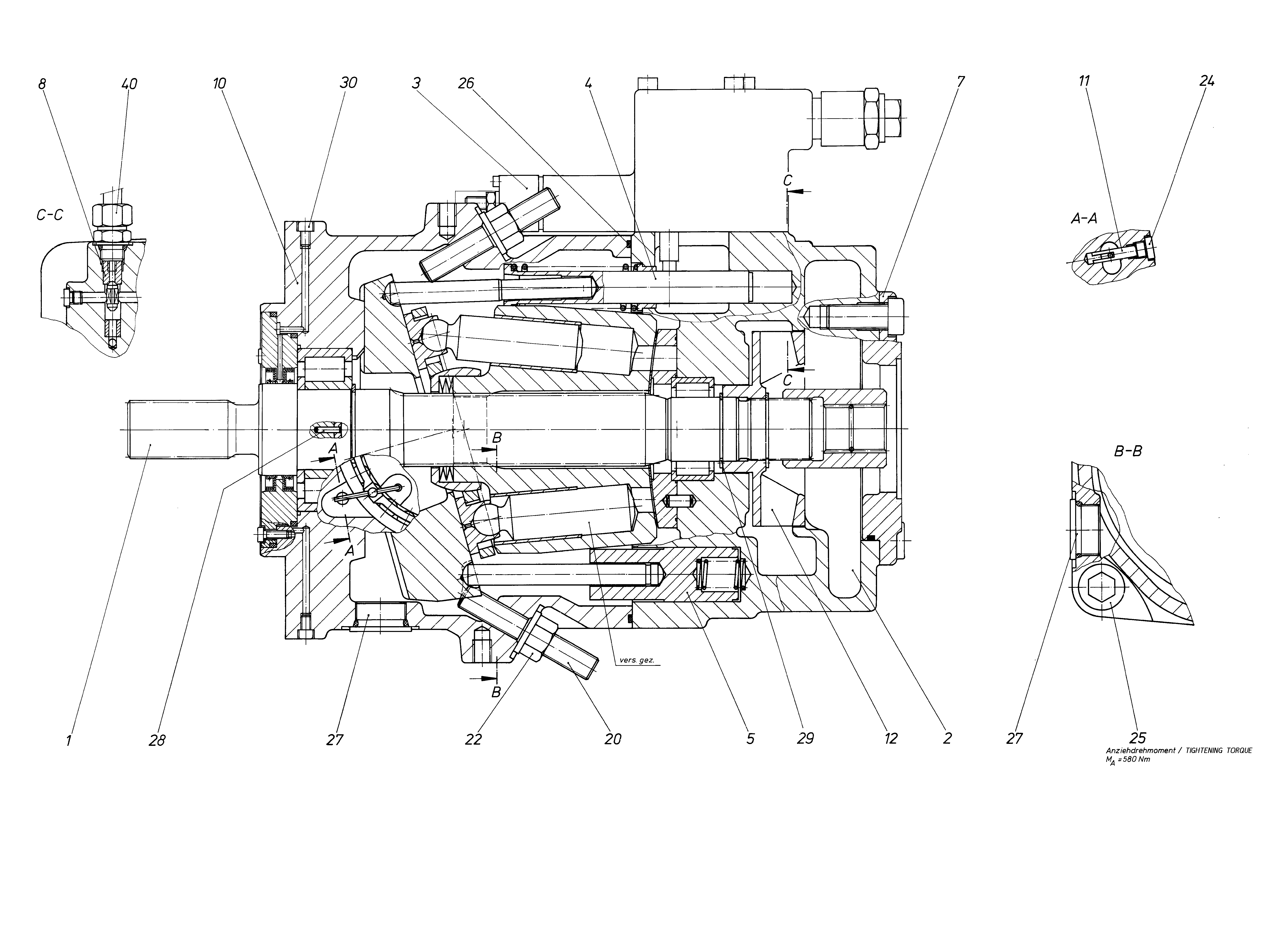

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909607600 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909607658 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902019679 | REGULATOR Assembly parts list →L | 1 | ||
| R909601301 | CONTROL Assembly parts list →L | 1 | ||
| R909601299 | CONTROL Assembly parts list →L | 1 | ||
| R909607642 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902220058 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909650690 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449866 | IMPELLER, RIGHT-HAND ROTATION | 1 | ||
| R909921095 | SETSCREW | 2 | ||
| R909153328 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909084762 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601050 | O-RINGD | 1 | ||
| R909153378 | SCREW PLUGD | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909083362 | RETAINING RING | 2 | ||
| R909086465 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 200 | 200 |
| Control device | with override pilot-pressure related positive control, with pressure cut-off | LG2D |
| Index | Size 145 … 260 | 1 |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Standard/special version | Special version | S |
