Unit · AXIAL-PISTON PUMP
AA4VG56HWD2/32R-NSC52F075D-SR909608128
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG56HWD2/32R-NSC52F075D-S, material number R909608128. Nominal size: NG 56. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control hydraulic mechanical servo (HW). Pressure cut-off: pressure cut-off (D). DA control valve: DA control valve, fixed setting (2). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (52). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP (07). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 3600 to 6100 psi direct operated, fixed setting (250 to 420 bar) with bypass (5). Filtration boost circuit/external boost pressure supply: filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) (D).
- Number
- R909608128
- Type code
- AA4VG56HWD2/32R-NSC52F075D-S
- Group
- A4VG 56
- Edition
- 12/2019

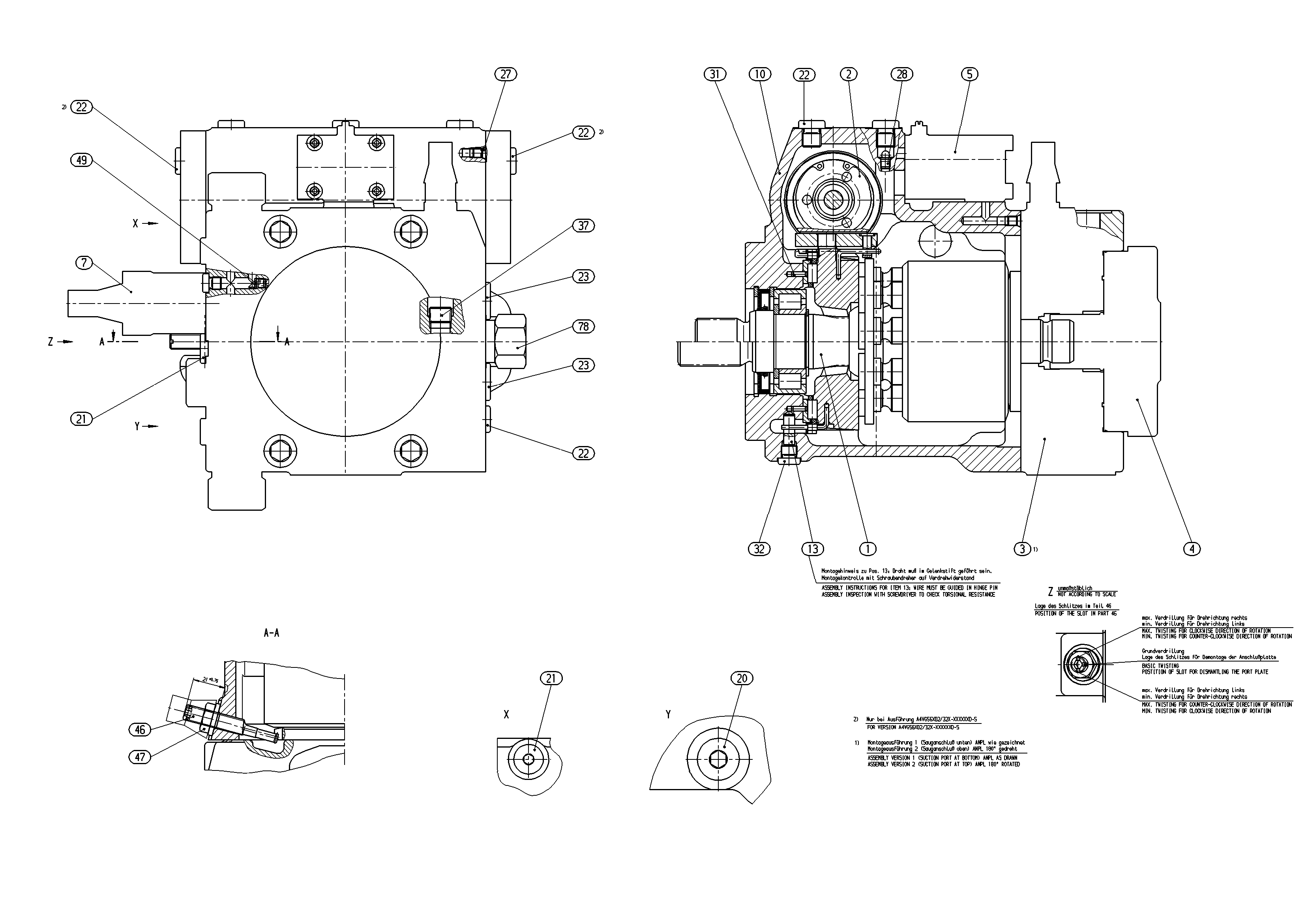

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909607707 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909601439 | CONTROL Assembly parts list →L | 1 | ||
| R909609352 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606380 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902018885 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909414719 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R909449449 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154478 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156496 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R909607033 | THREADED PART Assembly parts list →L | 1 | ||
| 98 | R902095505 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 56 | 56 |
| Control device | Proportional control hydraulic mechanical servo | HW |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | DA control valve, fixed setting | 2 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 52 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP | 07 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 3600 to 6100 psi direct operated, fixed setting (250 to 420 bar) with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Standard/special version | Special version | -S |
