Unit · AXIAL-PISTON PUMP
AA4VG90HDD1/32L-NXFXXF001D-SR909608180
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG90HDD1/32L-NXFXXF001D-S, material number R909608180. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Mounting flange: SAE J744 2+4-hole (F). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) (1). Filtration boost circuit/external boost pressure supply: filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) (D). Standard/special version: special version (-S).
- Number
- R909608180
- Type code
- AA4VG90HDD1/32L-NXFXXF001D-S
- Group
- A4VG 90
- Edition
- 06/2020

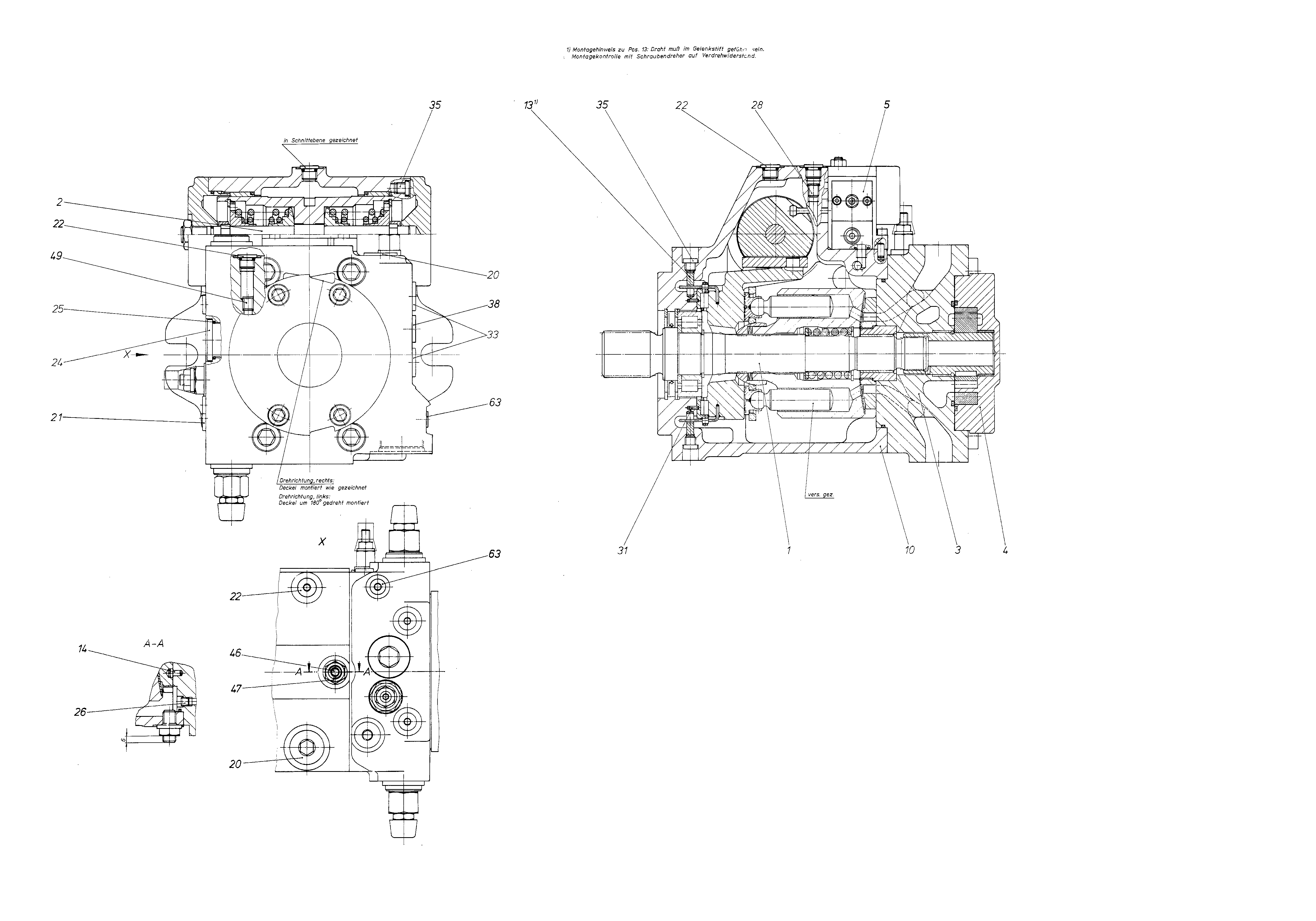

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902008470 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909607624 | CONTROL Assembly parts list →L | 1 | ||
| R902026766 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606812 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909613664 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909922043 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 5 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| 37 | R909087913 | SCREW PLUG | 1 | |
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909426706 | NOZZLE | 1 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| 98 | R902095526 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Mounting flange | SAE J744 2+4-hole | F |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Standard/special version | Special version | -S |
