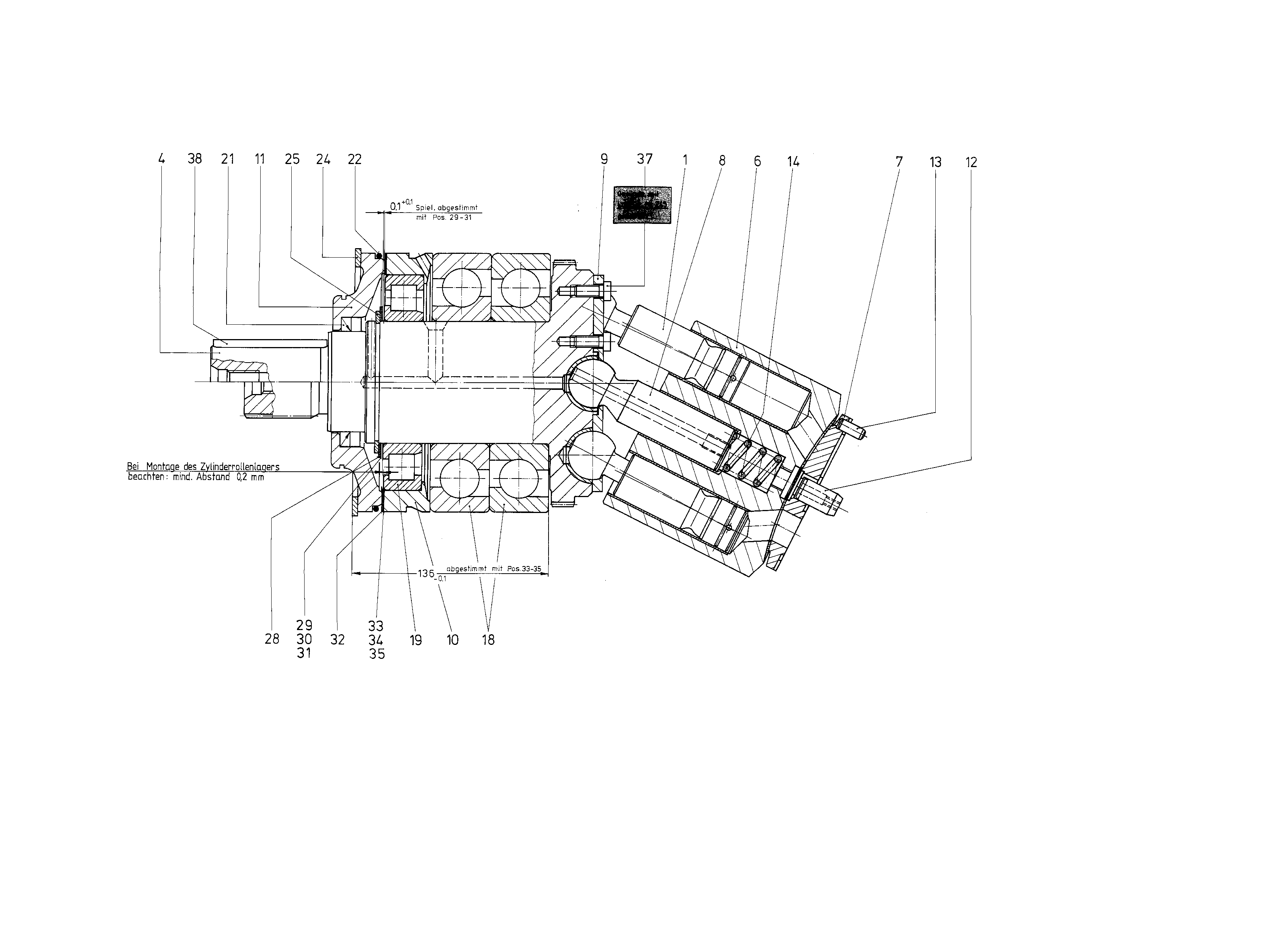

Unit · ROTARY GROUP
TW A2P 250/X5PXR910340146
Rotary group Bosch Rexroth series A2P, type code TWA2P250/X5PX, material number R910340146.
- Number
- R910340146
- Type code
- TW A2P 250/X5PX
- Group
- ROTARY GROUP
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910321427 | PISTON | 7 | ||
| R902407105 | DRIVE FLANGE | 1 | ||
| R910342971 | CYLINDER | 1 | ||
| R910342998 | DISTRIBUTOR PLATE | 1 | ||
| R910795135 | THRUST JOURNAL | 1 | ||
| R902566822 | RETAINING PLATE | 1 | ||
| 10 | R910684961 | BEARING RING | 1 | |
| 11 | R910344044 | SEALING FLANGE | 1 | |
| R902555512 | CENTERING BOLT | 1 | ||
| R910575038 | STRAIGHT PIN | 1 | ||
| R910678783 | COMPRESSION SPRING | 1 | ||
| 18 | R910104302 | ANG. CONTACT BALL BEARING | 2 | |
| 19 | R910693944 | CYL. ROLLER BEARING | 1 | |
| 21 | R910619728 | SHAFT SEALING RINGD | 1 | |
| 22 | R910103101 | O-RINGD | 1 | |
| 24 | R910106151 | RETAINING RING | 1 | |
| 25 | R910188034 | RETAINING RING | 1 | |
| R910203297 | SHIM RING | 1 | ||
| 29 | R910192201 | SHIM RING | 1 | |
| R910181757 | SHIM RING | 2 | ||
| 31 | R910241148 | SHIM RING | 1 | |
| R910239402 | SHIM RING | 1 | ||
| 33 | R910238775 | SHIM RING | 1 | |
| R910226351 | SHIM RING | 2 | ||
| 35 | R910214434 | SHIM RING | 1 | |
| R910584614 | SOCKET HEAD CAP SCREW | 14 | ||
| 38 | R910244848 | PARALLEL KEY | 1 |
