Unit · ROTARY GROUP
TW A2X 250/X5PXR910340154

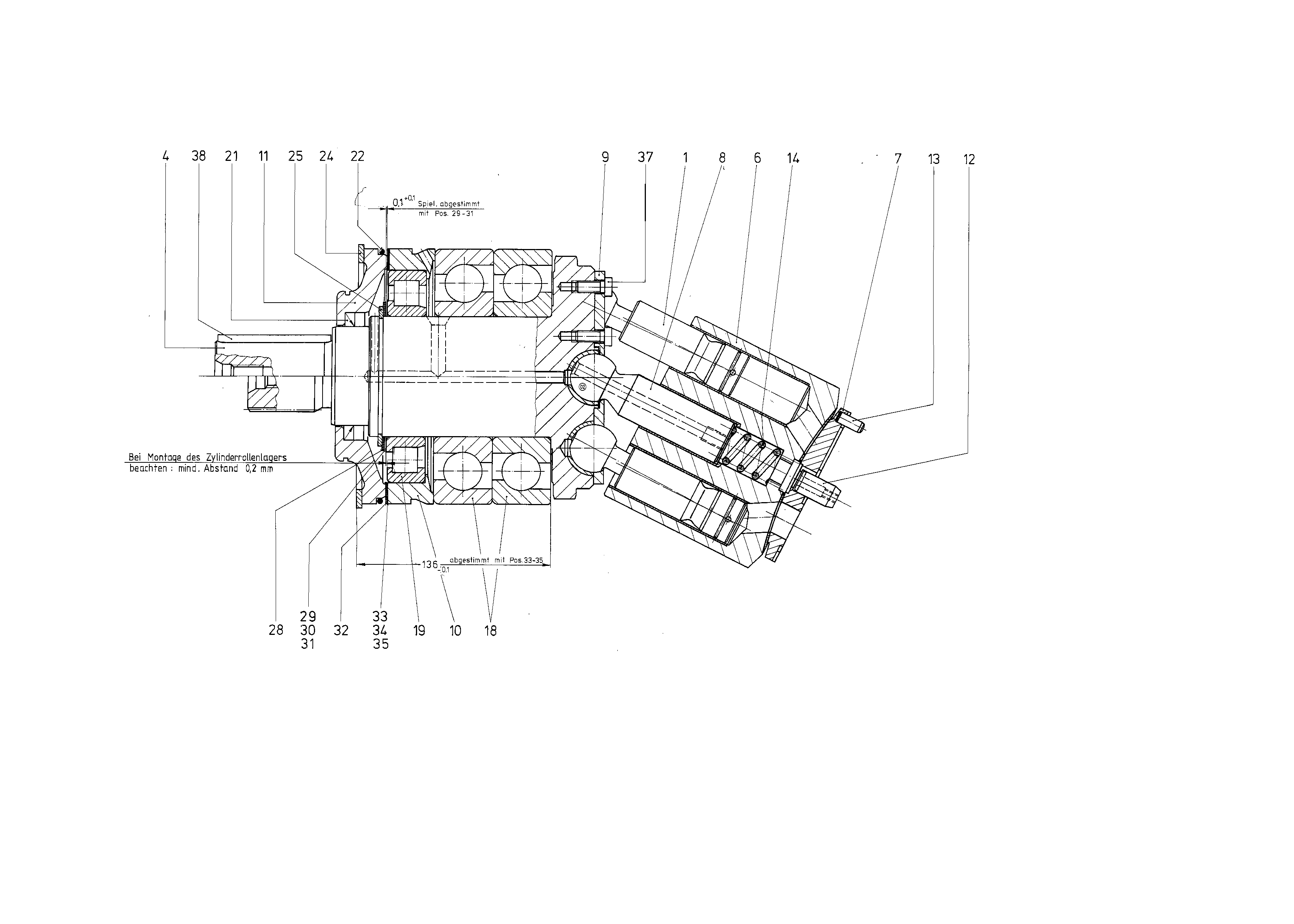

Rotary group Bosch Rexroth series A2X, type code TWA2X250/X5PX, material number R910340154.
- Number
- R910340154
- Type code
- TW A2X 250/X5PX
- Group
- ROTARY GROUP
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910321427 | PISTON | 7 | ||
| R902407115 | DRIVE FLANGE | 1 | ||
| R910342971 | CYLINDER | 1 | ||
| R910342998 | DISTRIBUTOR PLATE | 1 | ||
| R910795135 | THRUST JOURNAL | 1 | ||
| R902566822 | RETAINING PLATE | 1 | ||
| R910684961 | BEARING RING | 1 | ||
| 11 | R910344044 | SEALING FLANGE | 1 | |
| R902555512 | CENTERING BOLT | 1 | ||
| 13 | R910575038 | STRAIGHT PIN | 1 | |
| R910678783 | COMPRESSION SPRING | 1 | ||
| R910104302 | ANG. CONTACT BALL BEARING | 2 | ||
| R910693944 | CYL. ROLLER BEARING | 1 | ||
| R910619728 | SHAFT SEALING RINGD | 1 | ||
| 22 | R910103101 | O-RINGD | 1 | |
| 24 | R910106151 | RETAINING RING | 1 | |
| R910188034 | RETAINING RING | 1 | ||
| 28 | R910203297 | SHIM RING | 1 | |
| R910192201 | SHIM RING | 1 | ||
| 30 | R910181757 | SHIM RING | 2 | |
| R910241148 | SHIM RING | 1 | ||
| 32 | R910239402 | SHIM RING | 1 | |
| R910238775 | SHIM RING | 1 | ||
| R910226351 | SHIM RING | 2 | ||
| R910214434 | SHIM RING | 1 | ||
| R910584614 | SOCKET HEAD CAP SCREW | 14 | ||
| R910244848 | PARALLEL KEY | 1 |
