Unit · ROTARY GROUP
TW A2P 1000/X5PXR910637823

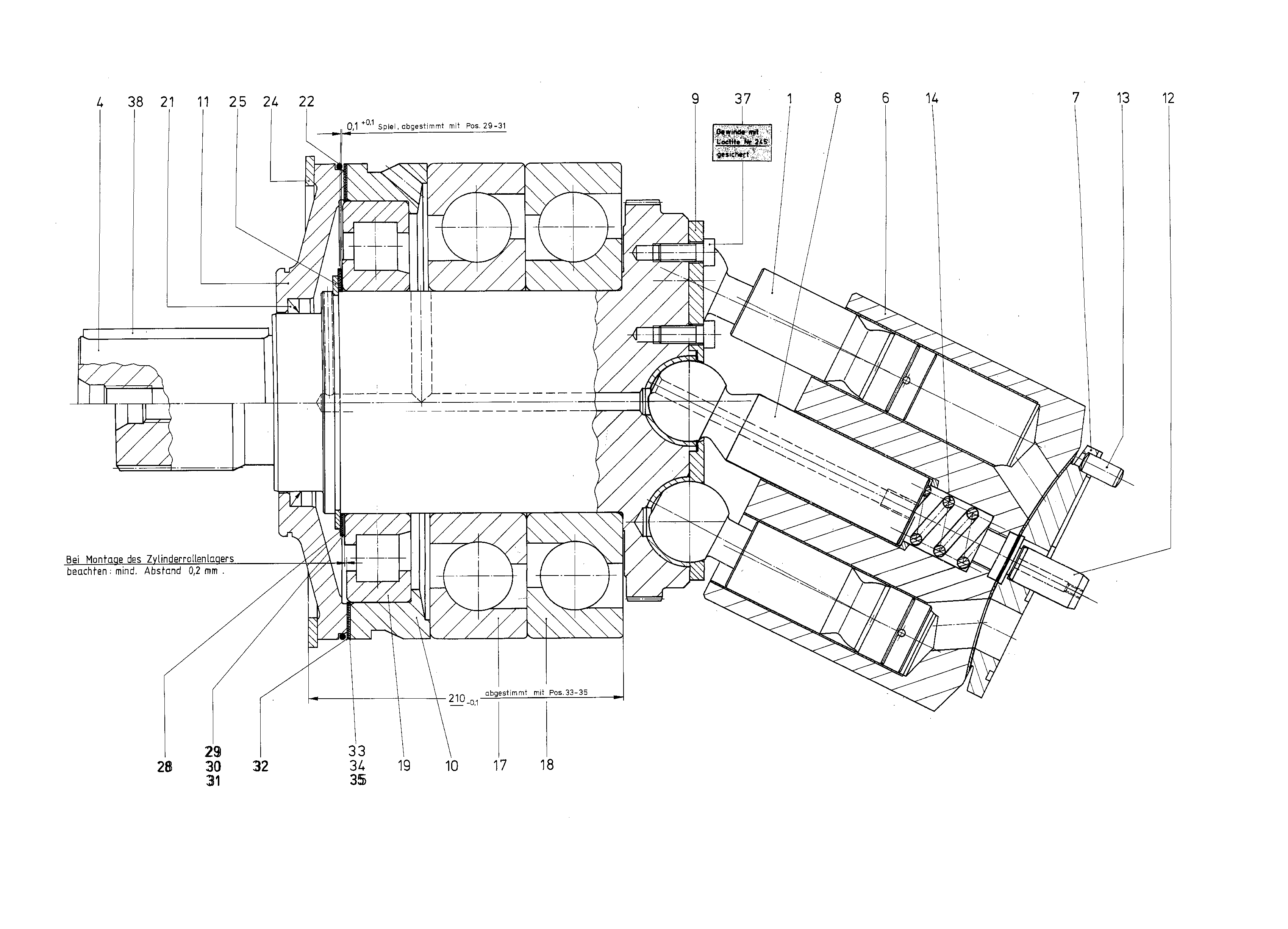

Rotary group Bosch Rexroth series A2P, type code TWA2P1000/X5PX, material number R910637823.
- Number
- R910637823
- Type code
- TW A2P 1000/X5PX
- Group
- ROTARY GROUP
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405235 | PISTON | 7 | ||
| R910924701 | DRIVE FLANGE | 1 | ||
| 6 | R910638048 | CYLINDER | 1 | |
| R910638064 | DISTRIBUTOR PLATE | 1 | ||
| 8 | R910795097 | THRUST JOURNAL | 1 | |
| R910935251 | RETAINING PLATE | 1 | ||
| R910709727 | BEARING RING | 1 | ||
| 11 | R910638145 | SEALING FLANGE | 1 | |
| R902555515 | CENTERING BOLT | 1 | ||
| R910915955 | STRAIGHT PIN | 1 | ||
| R910678759 | COMPRESSION SPRING | 1 | ||
| 17 | R910618241 | ANG. CONTACT BALL BEARING | 1 | |
| R910104345 | ANG. CONTACT BALL BEARING | 1 | ||
| R910784443 | CYL. ROLLER BEARING | 1 | ||
| 21 | R910702684 | SHAFT SEALING RINGD | 1 | |
| 22 | R910103268 | O-RINGD | 1 | |
| 24 | R910638196 | RETAINING RING | 1 | |
| 25 | R910150436 | RETAINING RING | 1 | |
| R910239402 | SHIM RING | 1 | ||
| R910238775 | SHIM RING | 1 | ||
| 30 | R910226351 | SHIM RING | 2 | |
| 31 | R910214434 | SHIM RING | 1 | |
| 32 | R910638242 | SHIM RING | 1 | |
| 33 | R910638234 | SHIM RING | 1 | |
| R910638226 | SHIM RING | 2 | ||
| R910194484 | SOCKET HEAD CAP SCREW | 14 | ||
| 38 | R910638269 | PARALLEL KEY | 1 |
