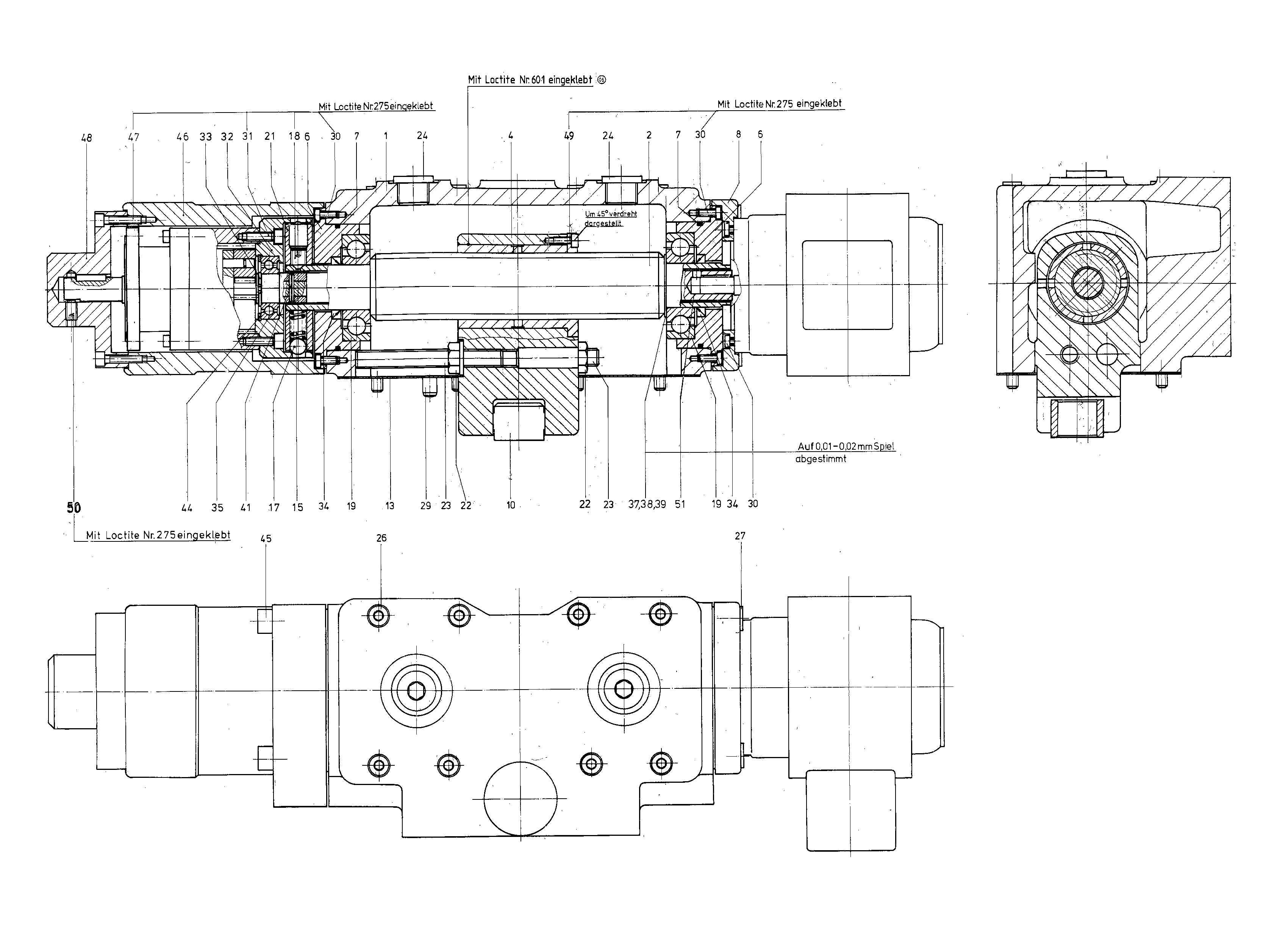

Unit · ELECTRICAL ADJUST. DEVICE
EL.VERST A2V/A2P 250/355R910660132
Axial piston pump Bosch Rexroth series A2V, type code EL.VERSTA2V/A2P250/355, material number R910660132.
- Number
- R910660132
- Type code
- EL.VERST A2V/A2P 250/355
- Group
- ELECTRICAL ADJUST. DEVICE
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910634085 | CONTROL HOUSING | 1 | ||
| R910673749 | THREADED SPINDLE | 1 | ||
| R910729477 | CARRIER | 1 | ||
| 6 | R910682659 | SEALING DISKD | 2 | |
| R910111902 | O-RINGD | 2 | ||
| R910634018 | MOTOR FLANGE | 1 | ||
| 10 | R910619981 | SLIDER | 1 | |
| R910619957 | SEALD | 1 | ||
| 15 | R910659827 | SPRING | 4 | |
| R910101575 | BALL | 4 | ||
| 18 | R910213632 | SETSCREW | 4 | |
| R910513008 | ANG. CONTACT BALL BEARING | 2 | ||
| 21 | R910659533 | COUPLING HALF | 1 | |
| 22 | R910387363 | SELF-LOCKING NUTD | 2 | |
| 23 | R910634638 | SETSCREW | 2 | |
| R909151694 | SCREW PLUGD | 2 | ||
| R910120286 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 4 | ||
| 29 | R910602051 | STRAIGHT PIN | 2 | |
| 30 | R910196827 | SOCKET HEAD CAP SCREW | 12 | |
| 31 | R910109223 | SOCKET HEAD CAP SCREW | 4 | |
| 32 | R910659541 | COUPLING ELEMENT | 1 | |
| 33 | R910105767 | RETAINING RING | 1 | |
| 34 | R910719846 | SHAFT SEALING RINGD | 2 | |
| R910659835 | DEEP-GROOVE BALL BEARING | 1 | ||
| 37 | R910122815 | SHIM RING | 1 | |
| 38 | R910122793 | SHIM RING | 2 | |
| 39 | R910122807 | SHIM RING | 3 | |
| R910106631 | SLOTTED SPRING PIN | 1 | ||
| R910116033 | RETAINING RING | 1 | ||
| R910109657 | SOCKET HEAD CAP SCREW | 4 | ||
| 46 | R910660124 | GEAR COVER | 1 | |
| R910120138 | SOCKET HEAD CAP SCREW | 4 | ||
| R910660116 | CLAMPING-FLANGE | 1 | ||
| R910109215 | SOCKET HEAD CAP SCREW | 8 | ||
| R910344427 | SETSCREW | 1 | ||
| 51 | R910660108 | MOTOR SHAFT | 1 |
