Unit · CONTROL
HYDR.VERST.A2V 250/355 HS FZR910661635

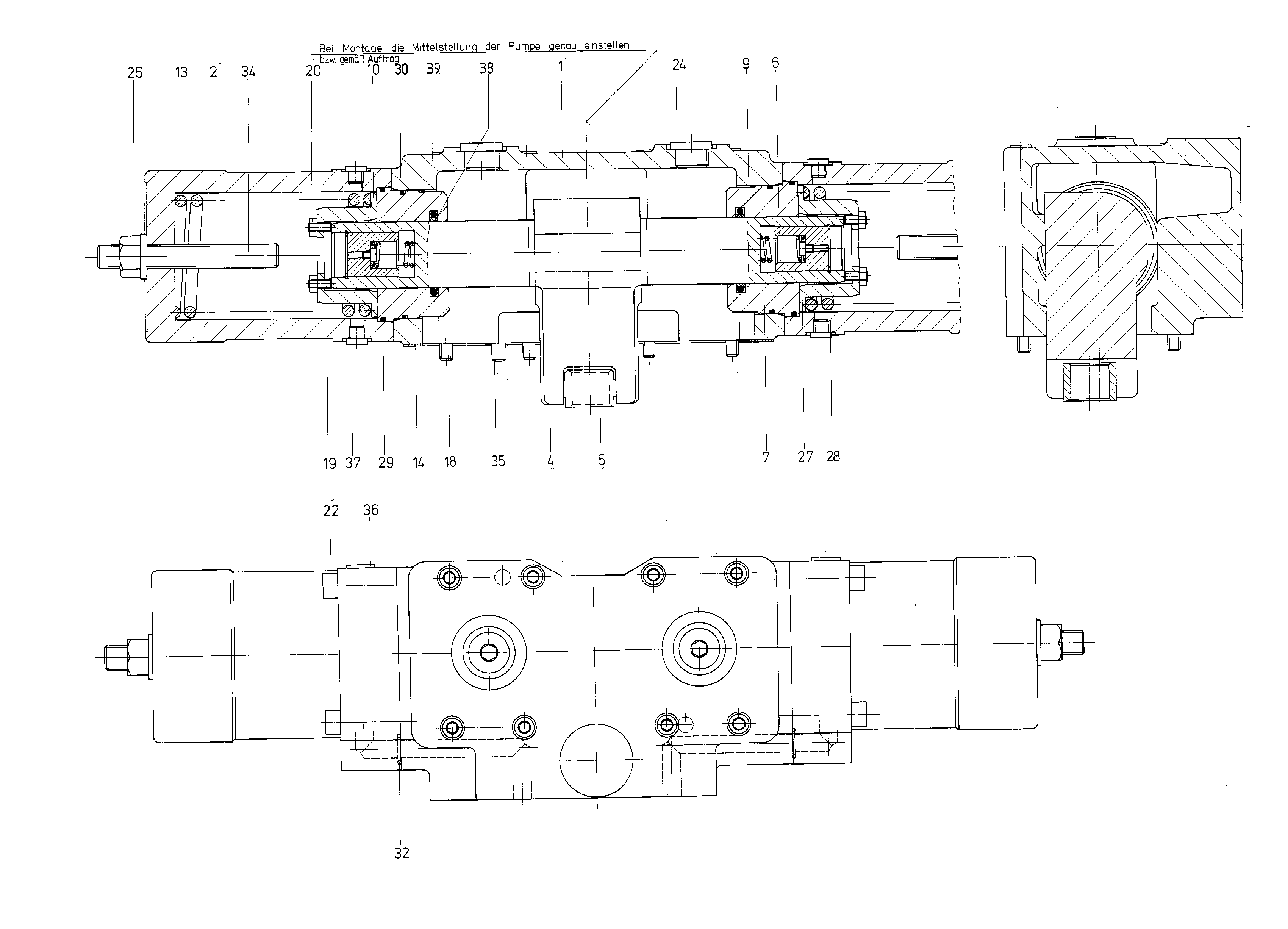

Control Bosch Rexroth series A2V, type code HYDR.VERST.A2V250/355HSFZ, material number R910661635.
- Number
- R910661635
- Type code
- HYDR.VERST.A2V 250/355 HS FZ
- Group
- A2V 250
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910623326 | CONTROL HOUSING | 1 | ||
| R910661678 | CONTROL CYLINDER | 2 | ||
| R910622702 | ADJUSTING PISTON | 1 | ||
| R910619981 | SLIDER | 1 | ||
| R910428256 | DAMPING PISTON | 2 | ||
| R910178055 | COMPRESSION SPRING | 2 | ||
| R910661708 | BUSHING | 2 | ||
| R910661309 | SPRING BUSH | 2 | ||
| R910775339 | COMPRESSION SPRING | 2 | ||
| R910619957 | SEALD | 1 | ||
| R910120286 | SOCKET HEAD CAP SCREW | 8 | ||
| R910187844 | SETSCREW | 8 | ||
| R910105279 | HEXAGON NUT | 8 | ||
| R910661325 | SOCKET HEAD CAP SCREW | 8 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909153328 | SEALING NUTD | 2 | ||
| R910100587 | NOZZLE | 2 | ||
| R910105937 | RETAINING RING | 2 | ||
| R910384275 | O-RINGD | 2 | ||
| R910111902 | O-RINGD | 2 | ||
| R910111082 | O-RINGD | 2 | ||
| R910661716 | SETSCREW | 2 | ||
| R910602051 | STRAIGHT PIN | 2 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R910516147 | ROD SEALD | 2 | ||
| R910514942 | O-RINGD | 2 |
