Unit · BASE UNIT
G A2V 250 OV GX5GP -SOR910709395
Base unit Bosch Rexroth series A2V, type code GA2V250OVGX5GP-SO, material number R910709395.
- Number
- R910709395
- Type code
- G A2V 250 OV GX5GP -SO
- Group
- A2V 250
- Edition
- 06/2020

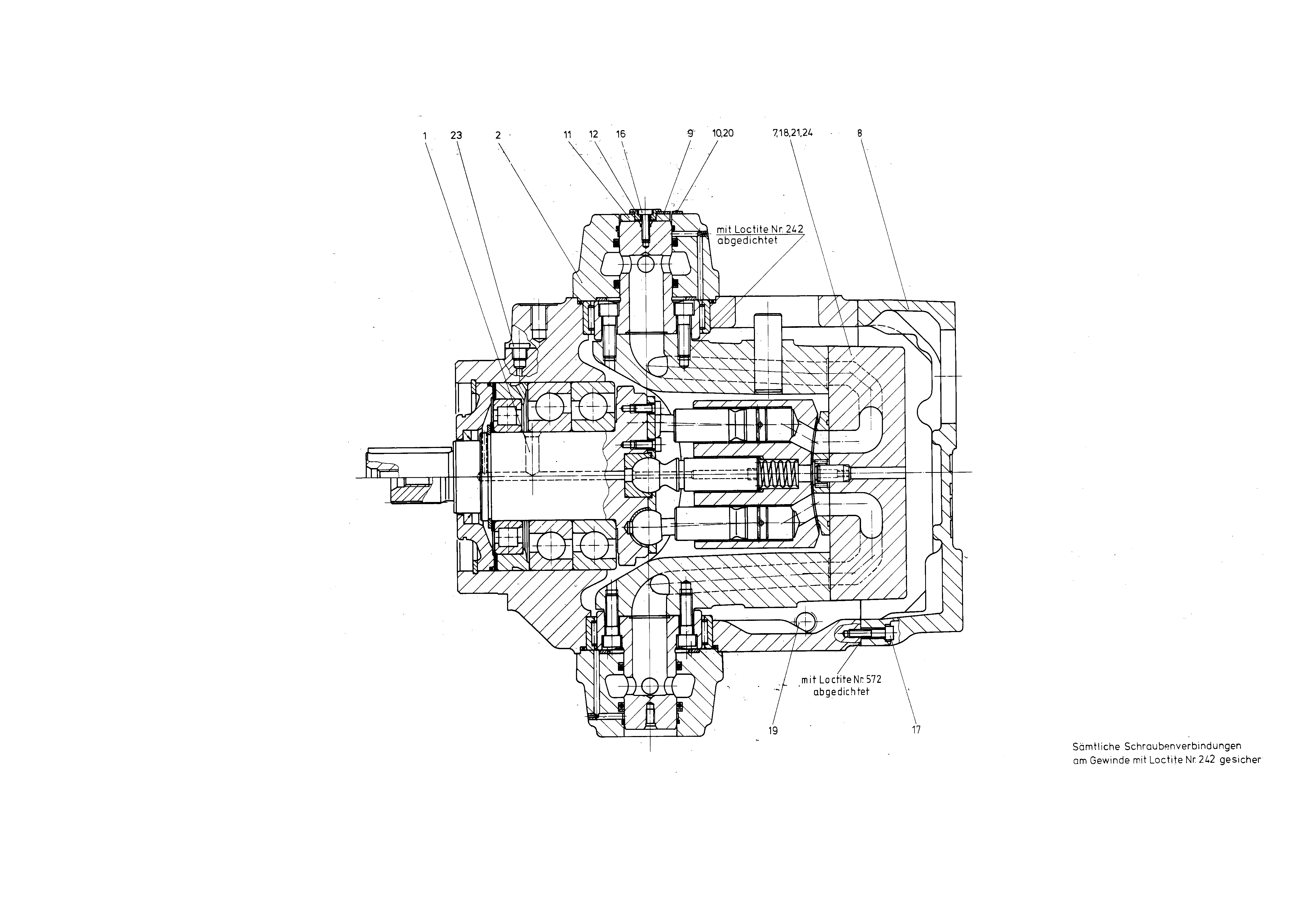

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910402044 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910402001 | PIPE FLANGE Assembly parts list →L | 2 | ||
| R910401935 | CONTROL PLATE | 1 | ||
| R910401919 | HOUSING COVER | 1 | ||
| 9 | R910402672 | POINTER | 1 | |
| 10 | R910402699 | DIAL | 1 | |
| 11 | R910402583 | WASHER | 1 | |
| 12 | R910604623 | BUSHING | 1 | |
| 16 | R910265667 | SOCKET HEAD CAP SCREW | 1 | |
| R910109495 | SOCKET HEAD CAP SCREW | 14 | ||
| 18 | R902572931 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909151694 | SCREW PLUGD | 4 | |
| 20 | R910101265 | ROUND-HEAD GROOVED PIN | 2 | |
| 21 | R910602051 | STRAIGHT PIN | 2 | |
| R909151979 | SCREW PLUGD | 1 | ||
| 24 | R910402222 | SEAL RINGD | 4 |
