Unit · BASE UNIT
G A2P 355 OV GX5GV1Z O.SAUG.BOHR.R910711152
Base unit Bosch Rexroth series A2P, type code GA2P355OVGX5GV1ZO.SAUG.BOHR., material number R910711152.
- Number
- R910711152
- Type code
- G A2P 355 OV GX5GV1Z O.SAUG.BOHR.
- Group
- BASE UNIT
- Edition
- 05/2020

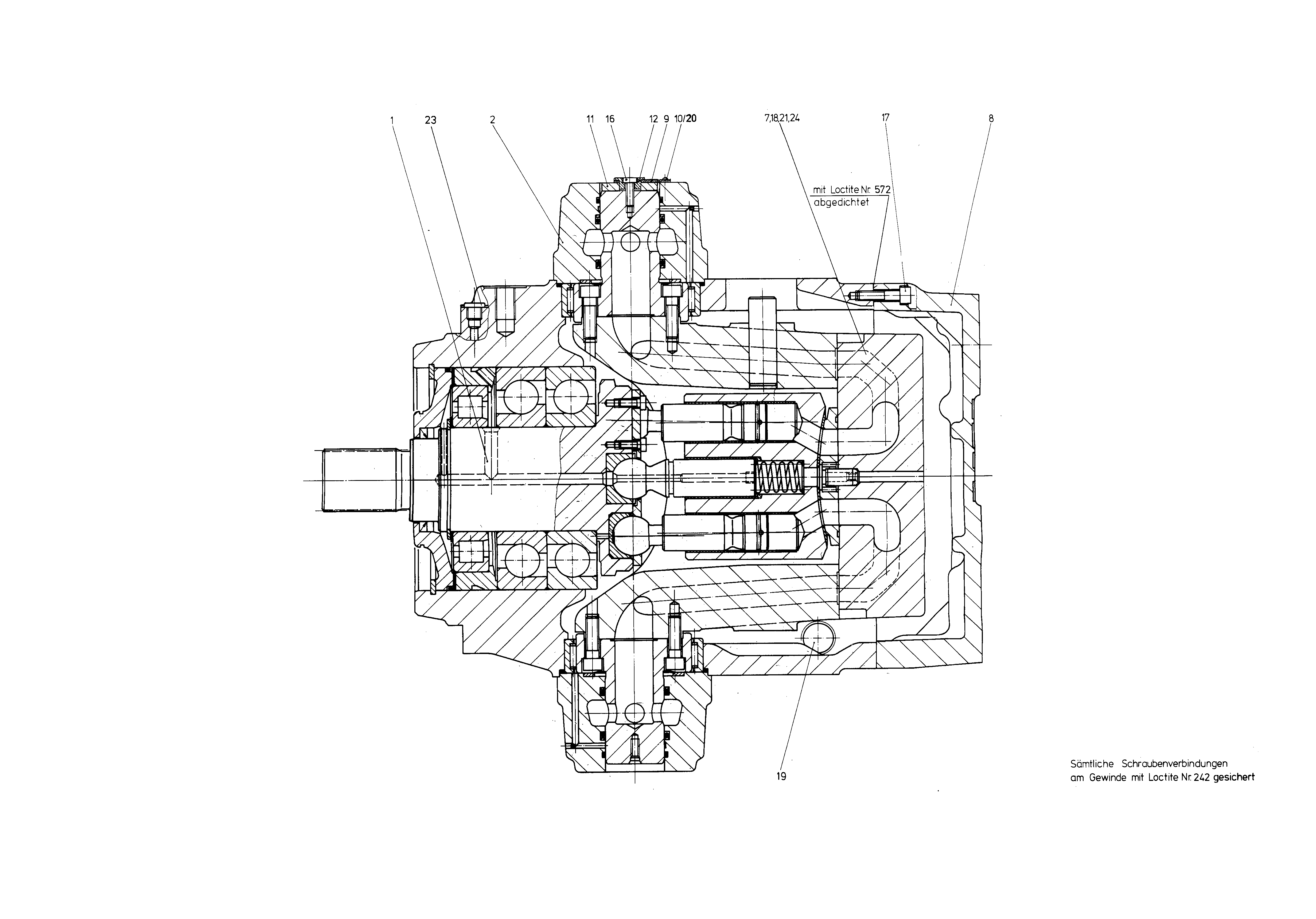

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910711217 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910663123 | PIPE FLANGE Assembly parts list →L | 2 | ||
| R910622931 | CONTROL PLATE | 1 | ||
| 8 | R910629219 | HOUSING COVER | 1 | |
| 9 | R910629057 | POINTER | 1 | |
| 10 | R910630918 | DIAL | 1 | |
| 11 | R910629197 | WASHER | 1 | |
| 12 | R910604623 | BUSHING | 1 | |
| 16 | R910265667 | SOCKET HEAD CAP SCREW | 1 | |
| 17 | R910109649 | SOCKET HEAD CAP SCREW | 14 | |
| 18 | R902570905 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909153861 | SCREW PLUGD | 4 | |
| R910101265 | ROUND-HEAD GROOVED PIN | 2 | ||
| 21 | R910602051 | STRAIGHT PIN | 2 | |
| R909151979 | SCREW PLUGD | 1 | ||
| 24 | R910616508 | SEAL RINGD | 4 |
