Unit · AXIAL-PISTON PUMP
AA7V355EL51LZFOOR910800493
Axial piston pump Bosch Rexroth series A7V, type code AA7V355EL51LZFOO, material number R910800493.
- Number
- R910800493
- Type code
- AA7V355EL51LZFOO
- Group
- A7V 355
- Edition
- 06/2020

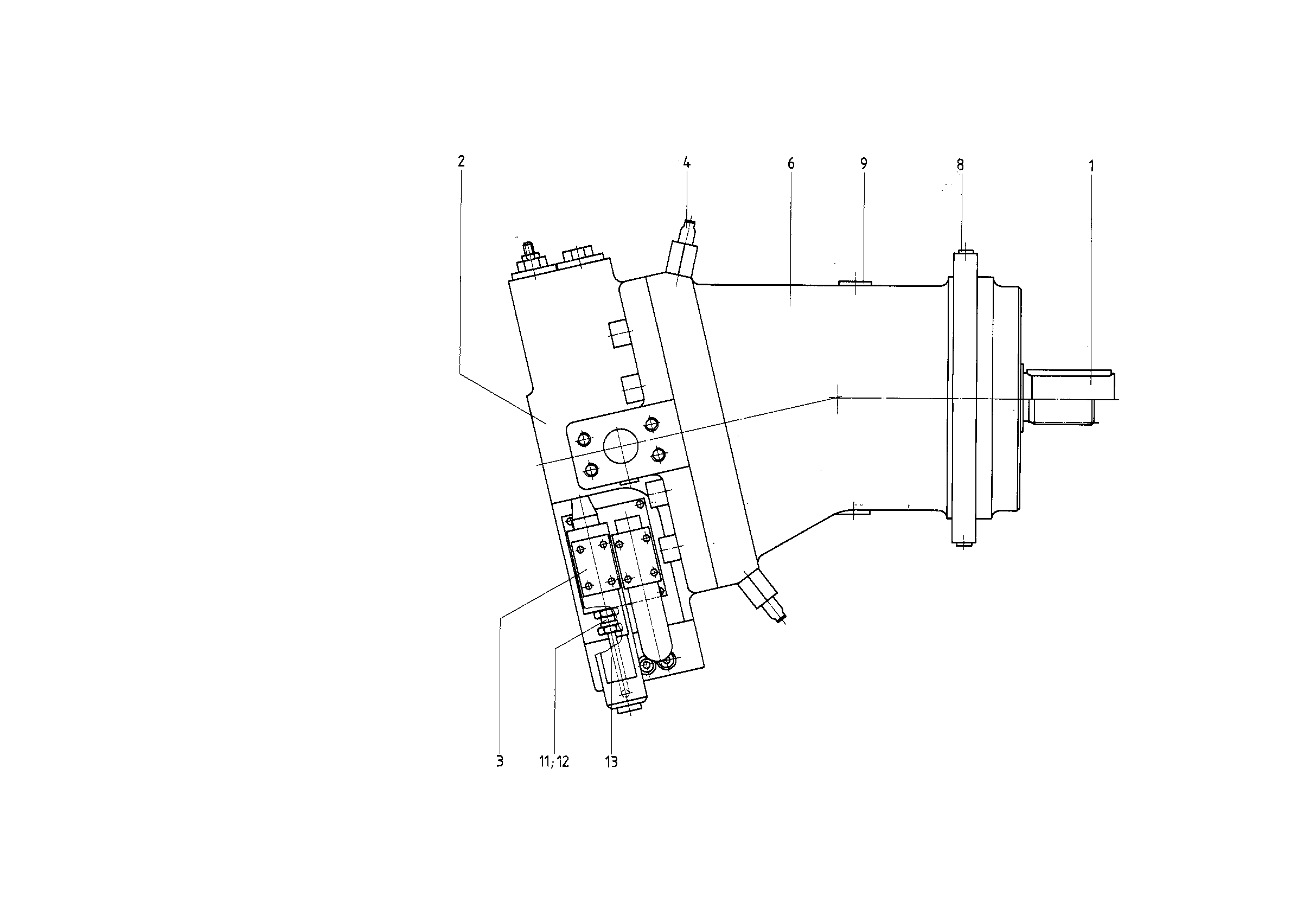

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910713333 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910800494 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910844462 | VALVE BLOCK Assembly parts list →L | 1 | |
| 4 | R910587516 | ADJUSTING PART Assembly parts list →L | 2 | |
| 6 | R910801976 | HOUSING | 1 | |
| 8 | R909151979 | SCREW PLUGD | 2 | |
| 9 | R909153861 | SCREW PLUGD | 2 | |
| 11 | R910913262 | THREADED FASTENER | 1 | |
| 12 | R910903310 | THREADED FASTENER | 1 | |
| 13 | R910136387 | PIPEMYANMAR | 100 |
