Unit · AXIAL-PISTON PUMP
A A7V-SL 1000 EL 51LZFODR910800615
Axial piston pump Bosch Rexroth series A7V, type code AA7V-SL1000EL51LZFOD, material number R910800615.
- Number
- R910800615
- Type code
- A A7V-SL 1000 EL 51LZFOD
- Group
- A7VSL 1000
- Edition
- 06/2020

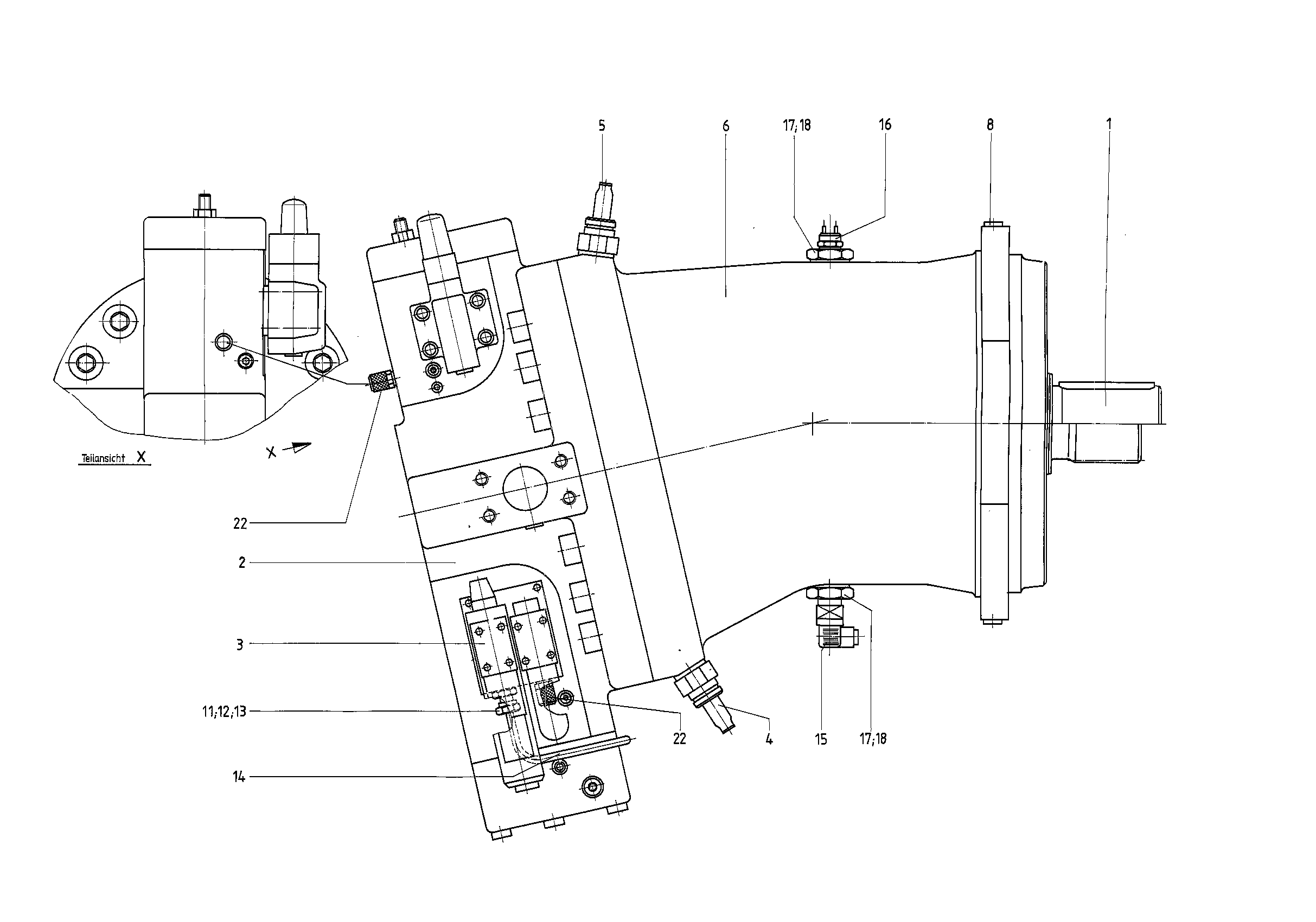

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910942781 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910800616 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910802358 | VALVE BLOCK Assembly parts list →L | 1 | |
| R910800568 | ADJUSTING PART Assembly parts list →L | 1 | ||
| 5 | R910803121 | ADJUSTING PART Assembly parts list →L | 1 | |
| 6 | R910802069 | HOUSING | 1 | |
| 8 | R909156651 | SCREW PLUGD | 2 | |
| 11 | R910913262 | THREADED FASTENER | 1 | |
| 12 | R910903350 | THREADED FASTENER | 1 | |
| 13 | R910913261 | THREADED FASTENER | 1 | |
| 14 | R902466548 | PIPE Assembly parts list →L | 1 | |
| 15 | R902601957 | POLLUTION SWITCH | 1 | |
| R910545368 | THERMOSWITCH | 1 | ||
| R910902855 | REDUCTION THREADED JOINT | 2 | ||
| R910744689 | SEAL RINGD | 2 | ||
| R910939593 | TEST POINT | 2 |
