Unit · ROTARY GROUP
TW A6V-SL1000.W.51.ZR910802324

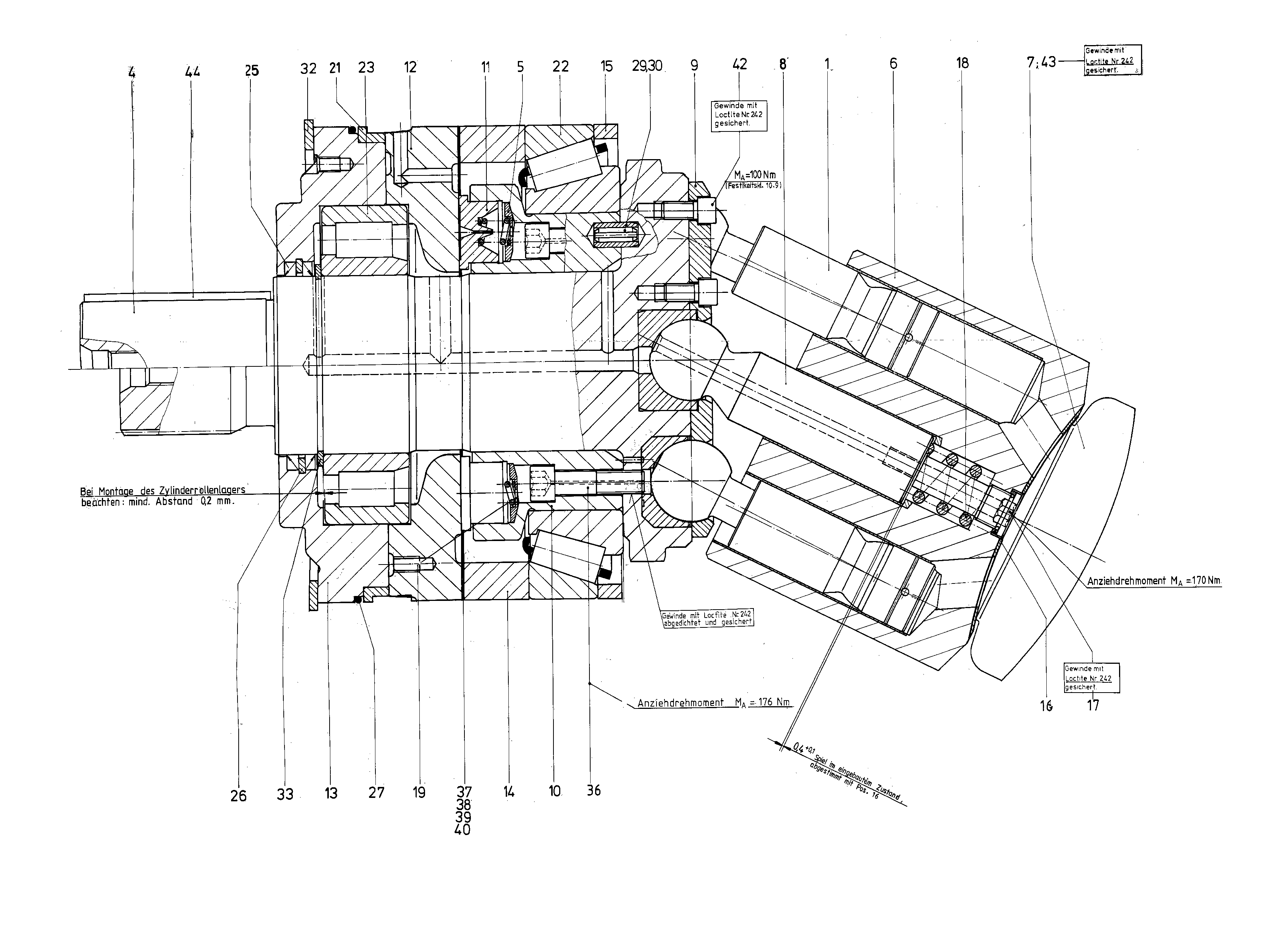

Rotary group Bosch Rexroth series A6VM, type code TWA6V-SL1000.W.51.Z, material number R910802324. Nominal size: NG 1000. Axial piston unit: bent-axis design, variable (A6V).
- Number
- R910802324
- Type code
- TW A6V-SL1000.W.51.Z
- Group
- A6VSL 1000
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910994577 | PISTON | 7 | ||
| R902511720 | DRIVE FLANGE | 1 | ||
| R910928715 | SPRING DISK | 7 | ||
| R910638048 | CYLINDER | 1 | ||
| R910802307 | CONTROL LENS | 1 | ||
| R910795097 | THRUST JOURNAL | 1 | ||
| R910935251 | RETAINING PLATE | 1 | ||
| R910741892 | PAD SUPPORT WITH SEAL | 1 | ||
| R910741973 | PAD | 7 | ||
| R910742651 | SLIDING DISC | 1 | ||
| R910906659 | SEALING FLANGE | 1 | ||
| R910741965 | SPACER RING | 1 | ||
| R910741949 | RING | 1 | ||
| R910941875 | SHIM RING | 1 | ||
| R910941832 | SPACER SCREW | 1 | ||
| R910678759 | COMPRESSION SPRING | 1 | ||
| R910715247 | COMPRESSION SPRING | 7 | ||
| R910905445 | RING | 1 | ||
| R902650821 | TAPERED-ROLLER BEARING | 1 | ||
| R910742139 | CYL. ROLLER BEARING | 1 | ||
| R910702684 | SHAFT SEALING RINGD | 2 | ||
| R910188697 | RETAINING RING | 1 | ||
| R910187364 | O-RINGD | 1 | ||
| R910107018 | SLOTTED SPRING PIN | 1 | ||
| R910921207 | SLOTTED SPRING PIN | 1 | ||
| R910638196 | RETAINING RING | 1 | ||
| R910742147 | RETAINING RING | 1 | ||
| R910928716 | SCREW | 7 | ||
| R910638242 | SHIM RING | 1 | ||
| R910638234 | SHIM RING | 1 | ||
| R910638226 | SHIM RING | 2 | ||
| R910194484 | SOCKET HEAD CAP SCREW | 14 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 1000 | 1000 |
