Unit · AXIAL-PISTON MOTOR
AA6V-SL1000HD51WZHOO-SOR910802326
Axial piston motor Bosch Rexroth series A6VM, type code AA6V-SL1000HD51WZHOO-SO, material number R910802326. Nominal size: NG 1000. Axial piston unit: bent-axis design, variable (A6V). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W).
- Number
- R910802326
- Type code
- AA6V-SL1000HD51WZHOO-SO
- Group
- A6VSL 1000
- Edition
- 06/2020

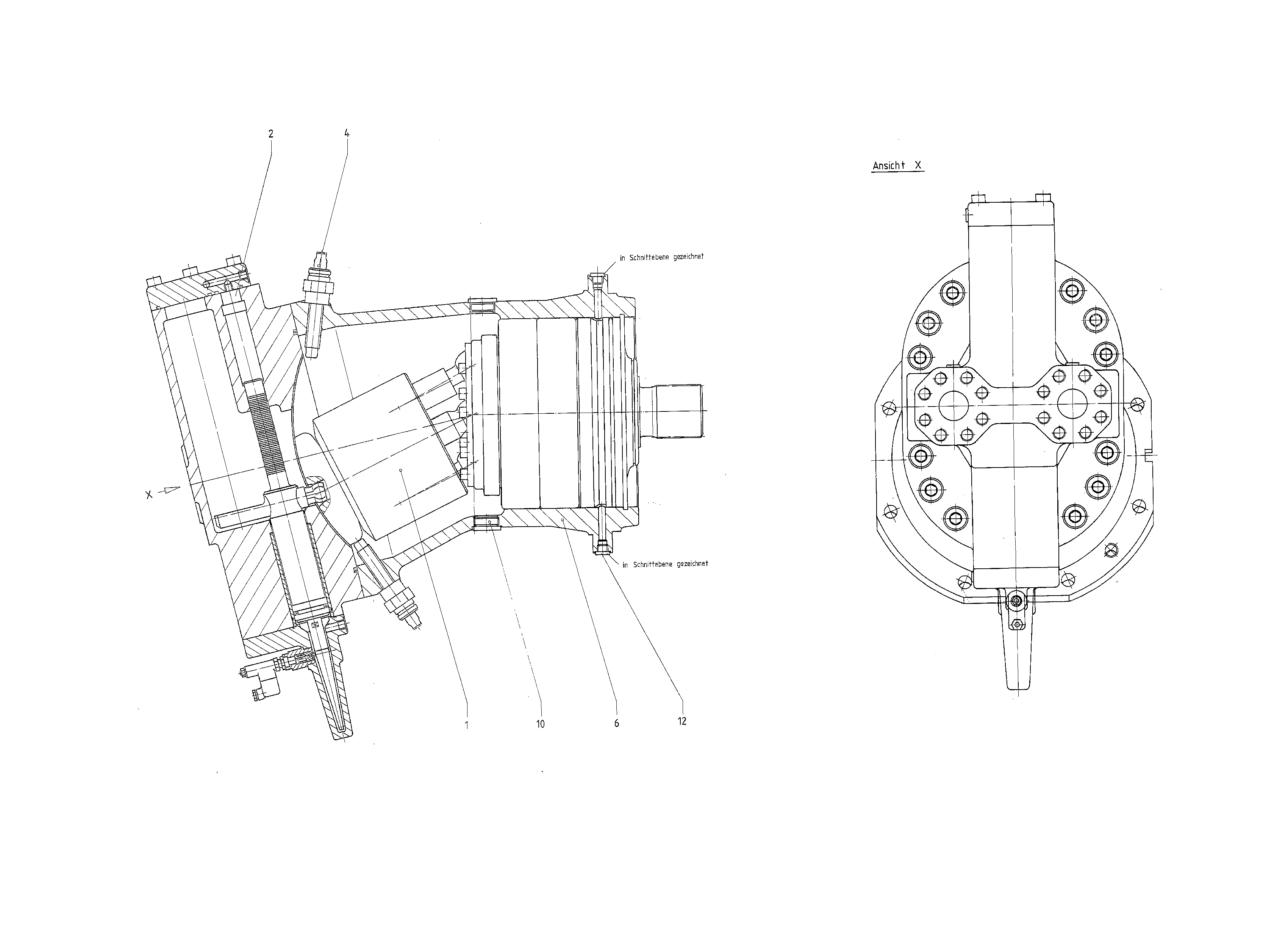

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910802324 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910802321 | CONTROL Assembly parts list →L | 1 | |
| 4 | R910589896 | ADJUSTING PART Assembly parts list →L | 2 | |
| R910802069 | HOUSING | 1 | ||
| R909153862 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 1000 | 1000 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft variable | W |
