Unit · INDUCTIVE DISPL. PICK-UP
WEGGEBER A6V 1000R910802634
Axial piston pump Bosch Rexroth series A6V, type code WEGGEBERA6V1000, material number R910802634.
- Number
- R910802634
- Type code
- WEGGEBER A6V 1000
- Group
- A6V 1000
- Edition
- 06/2020

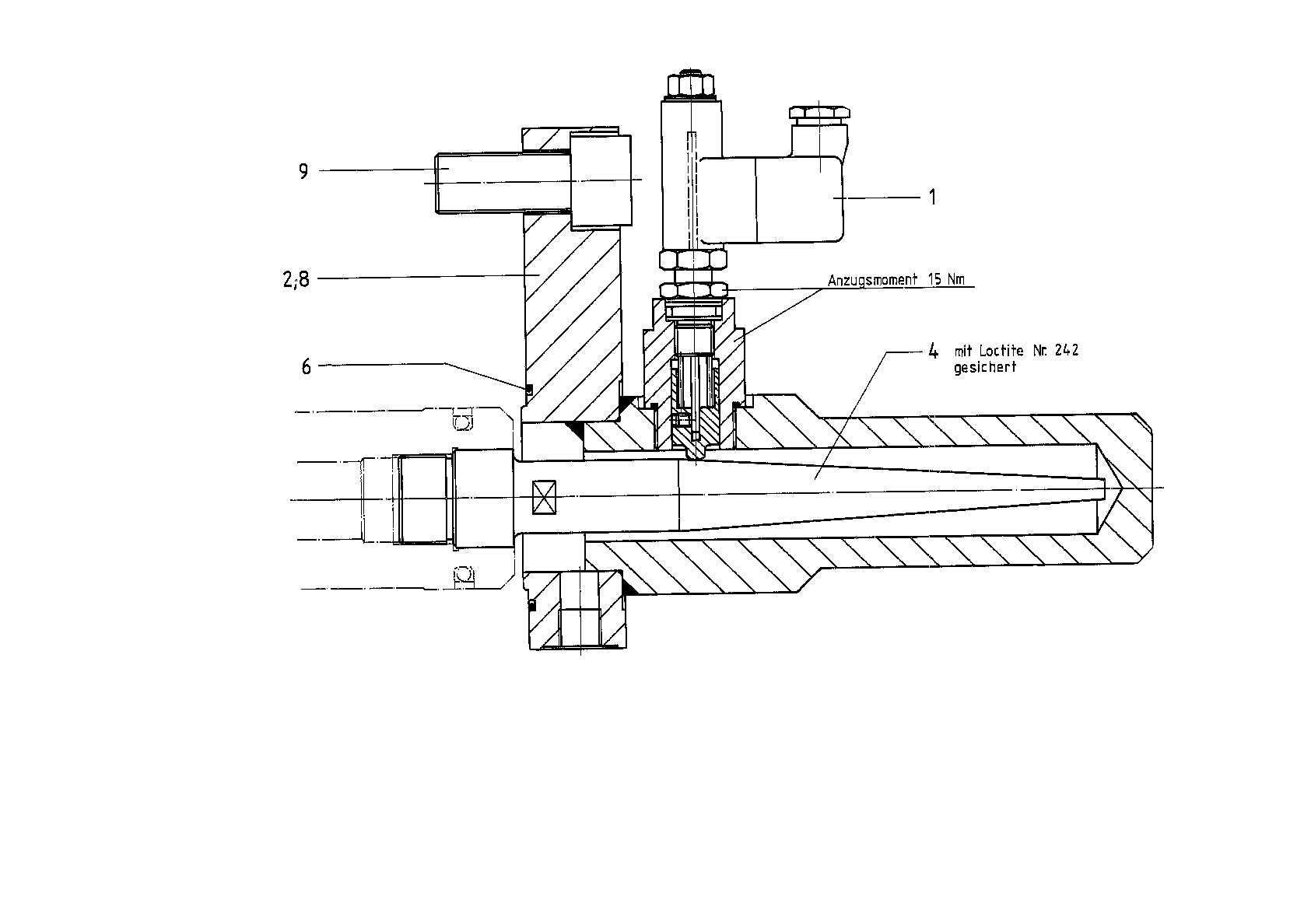

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910901151 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| 2 | R910802632 | SENSOR HOUSING Assembly parts list →L | 1 | |
| 4 | R910802316 | TAPERED BOLT | 1 | |
| 6 | R910514128 | O-RINGD | 1 | |
| 8 | R909151979 | SCREW PLUGD | 1 | |
| 9 | R910277746 | SOCKET HEAD CAP SCREW | 6 |
