Unit · AXIAL-PISTON PUMP
AA7V250MA51RPFOO-VR910802761

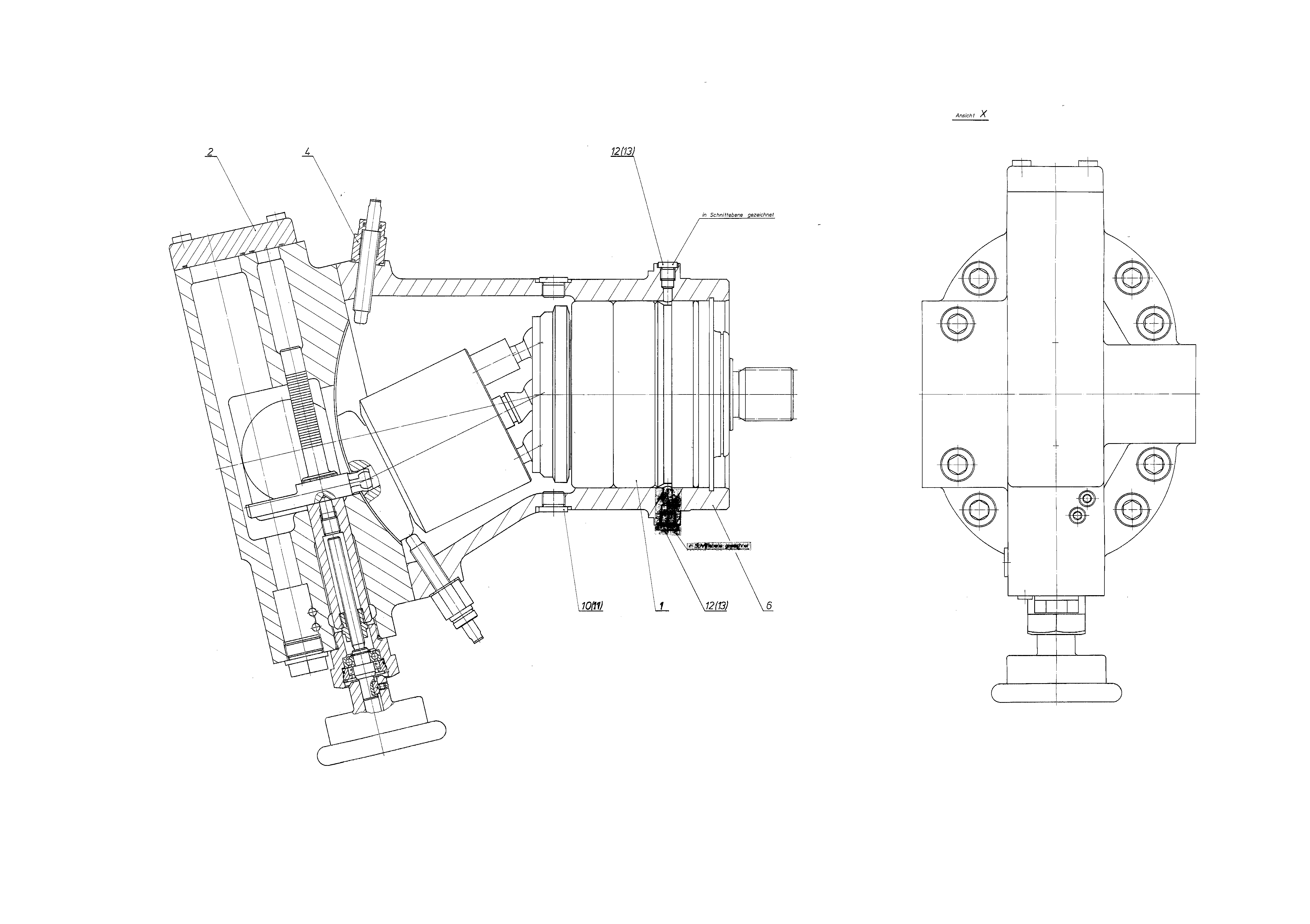

Axial piston pump Bosch Rexroth series A7V, type code AA7V250MA51RPFOO-V, material number R910802761.
- Number
- R910802761
- Type code
- AA7V250MA51RPFOO-V
- Group
- A7V 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910713287 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910802762 | CONTROL Assembly parts list →L | 1 | |
| R910596426 | ADJUSTING PART Assembly parts list →L | 2 | ||
| 6 | R910801844 | HOUSING | 1 | |
| 10 | R909156654 | SCREW PLUGD | 2 | |
| 12 | R909153930 | SCREW PLUGD | 2 |
