Unit · CONTROL
V A7V 355 DRR910803468
Control Bosch Rexroth series A7V, type code VA7V355DR, material number R910803468.
- Number
- R910803468
- Type code
- V A7V 355 DR
- Group
- A7V 355
- Edition
- 06/2020

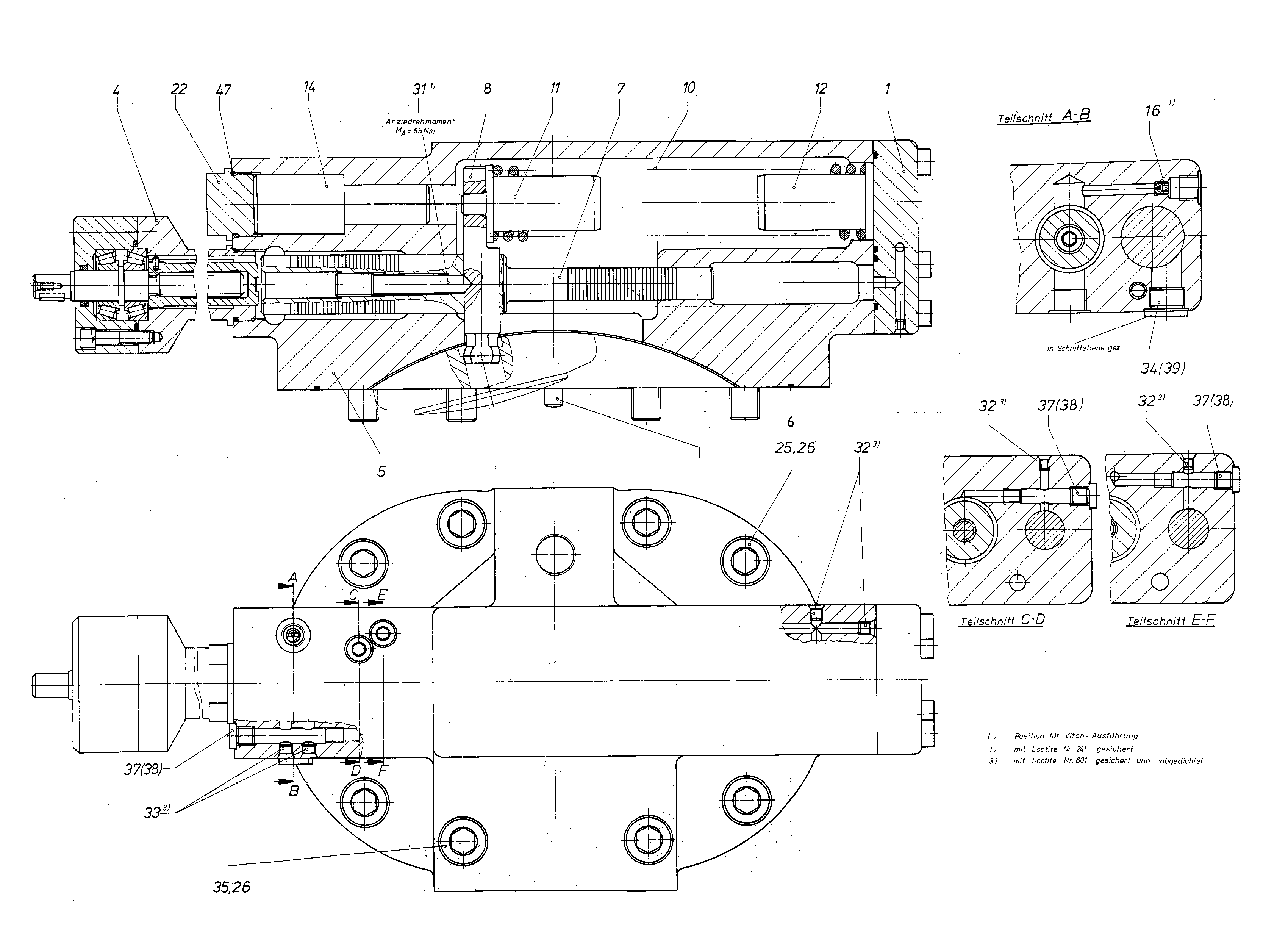

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910587486 | COVER Assembly parts list →L | 1 | ||
| 4 | R910599786 | STROKE LIMITER Assembly parts list →L | 1 | |
| 5 | R910802336 | COVER PLATE | 1 | |
| 6 | R910945102 | O-RINGD | 1 | |
| R910842001 | POSITIONING PISTON | 1 | ||
| R902413797 | POSITIONING STUD | 1 | ||
| 10 | R910585815 | COMPRESSION SPRING | 1 | |
| R910802417 | SPRING BUSH | 1 | ||
| R910802425 | SPRING BUSH | 1 | ||
| R910588652 | PLUG | 1 | ||
| R910571261 | THROTTLE SCREW | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| 31 | R910807001 | SETSCREW | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 34 | R909151694 | SCREW PLUGD | 1 | |
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| 37 | R909151692 | SCREW PLUGD | 3 | |
| R910516481 | O-RINGD | 1 |
