Unit · AXIAL-PISTON PUMP
AA7V-SL1000HD+LR51LZFODR910803633

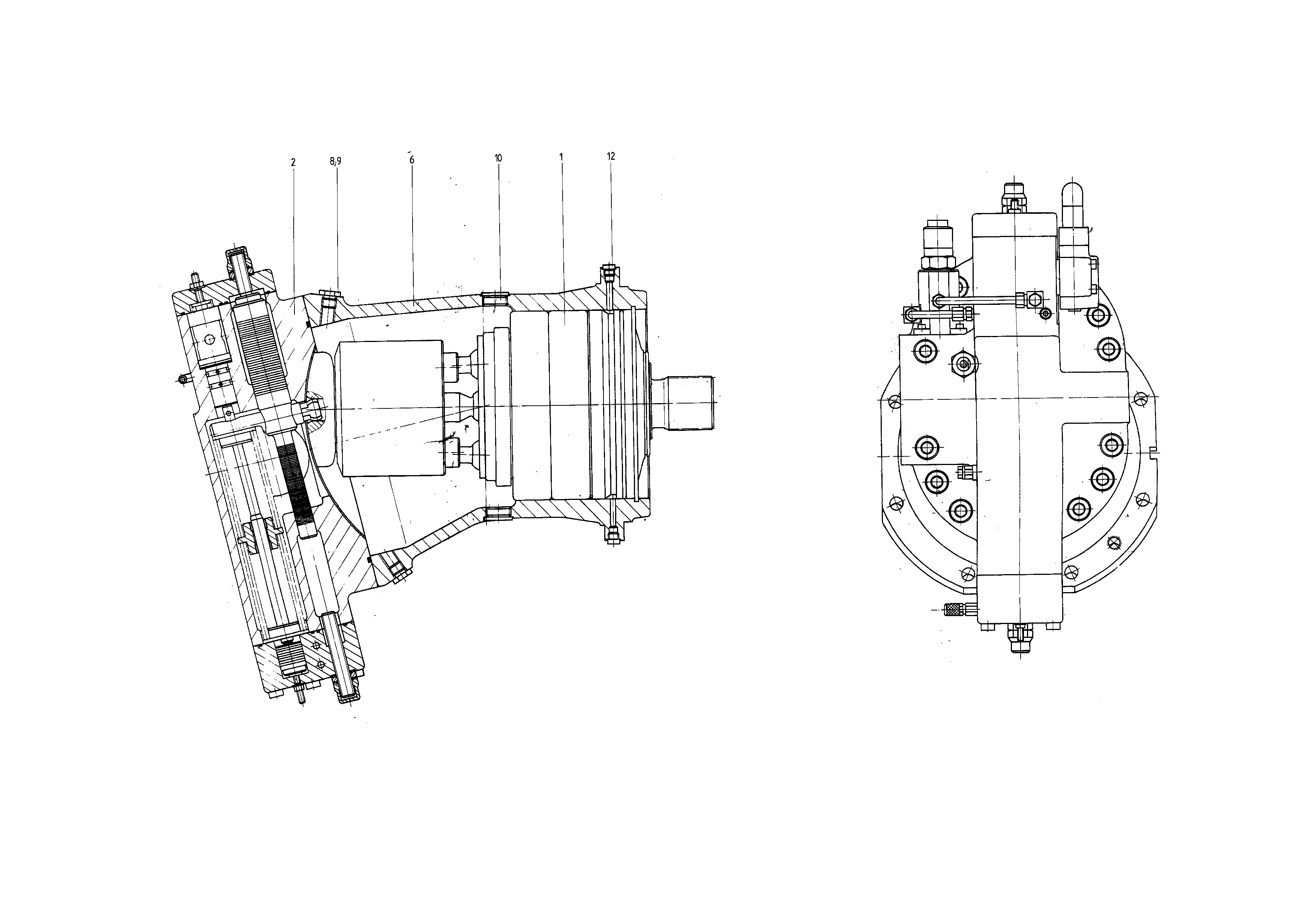

Axial piston pump Bosch Rexroth series A7V, type code AA7V-SL1000HD+LR51LZFOD, material number R910803633.
- Number
- R910803633
- Type code
- AA7V-SL1000HD+LR51LZFOD
- Group
- A7VSL 1000
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910942781 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910803627 | CONTROL Assembly parts list →L | 1 | ||
| R910802069 | HOUSING | 1 | ||
| R910803630 | SCREW PLUG | 2 | ||
| R910744506 | SEAL RINGD | 2 | ||
| R909153862 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 2 |
