Unit · AXIAL-PISTON PUMP
AA7V1000EL51LPFOOR910803757
Axial piston pump Bosch Rexroth series A7V, type code AA7V1000EL51LPFOO, material number R910803757.
- Number
- R910803757
- Type code
- AA7V1000EL51LPFOO
- Group
- A7V 1000
- Edition
- 06/2020

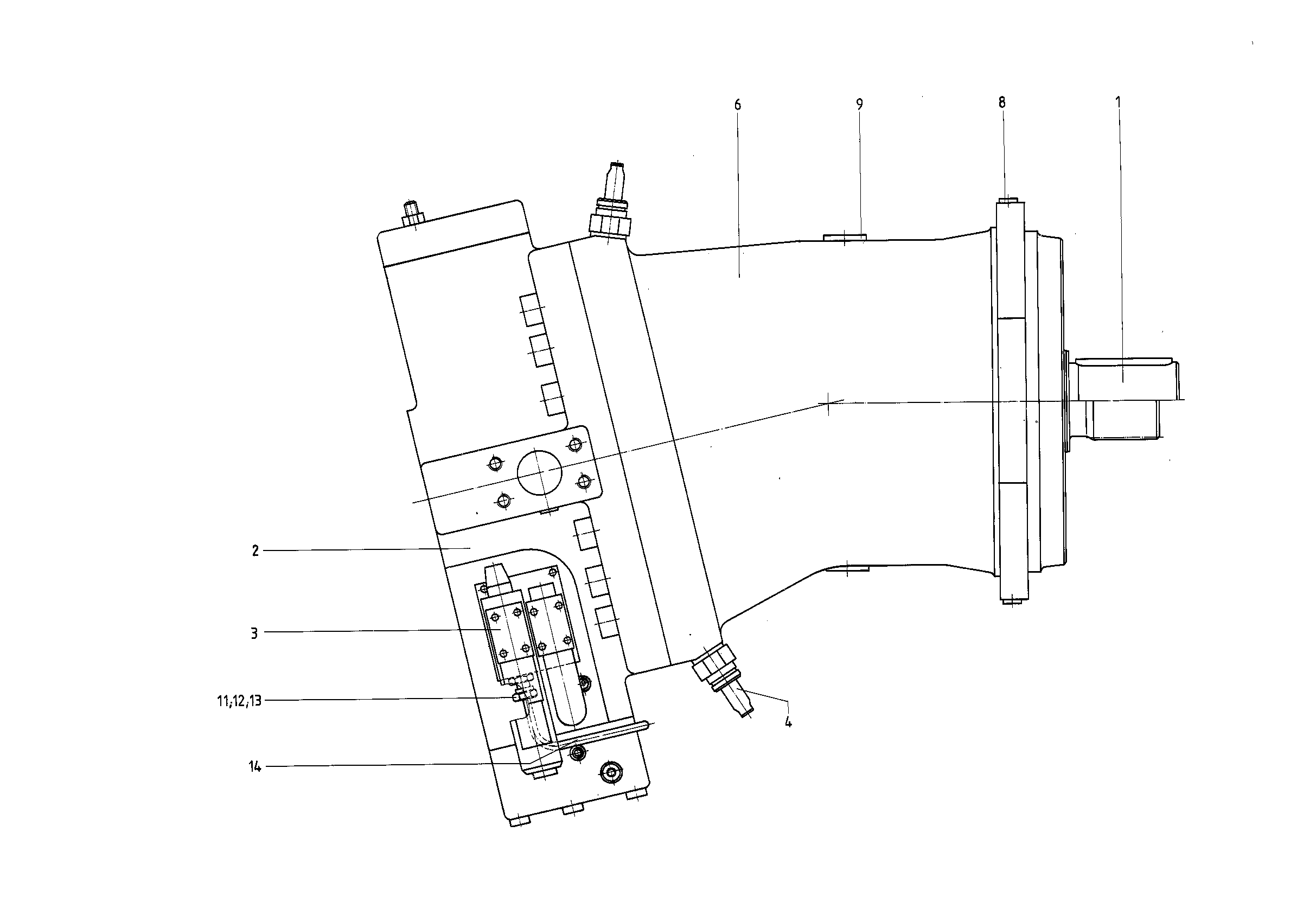

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910713503 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910803761 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 3 | R910844462 | VALVE BLOCK Assembly parts list →L | 1 | |
| 4 | R910589896 | ADJUSTING PART Assembly parts list →L | 2 | |
| 6 | R910802069 | HOUSING | 1 | |
| 8 | R909153815 | SCREW PLUGD | 2 | |
| 9 | R909153862 | SCREW PLUGD | 2 | |
| 11 | R910913262 | THREADED FASTENER | 1 | |
| 12 | R910903350 | THREADED FASTENER | 1 | |
| 13 | R910913261 | THREADED FASTENER | 1 | |
| 14 | R902466548 | PIPE Assembly parts list →L | 1 |
