Unit · AXIAL-PISTON PUMP
A A7V 250 LV 51RPFHO -SOR910803891
Axial piston pump Bosch Rexroth series A7V, type code AA7V250LV51RPFHO-SO, material number R910803891.
- Number
- R910803891
- Type code
- A A7V 250 LV 51RPFHO -SO
- Group
- A7V 250
- Edition
- 06/2020

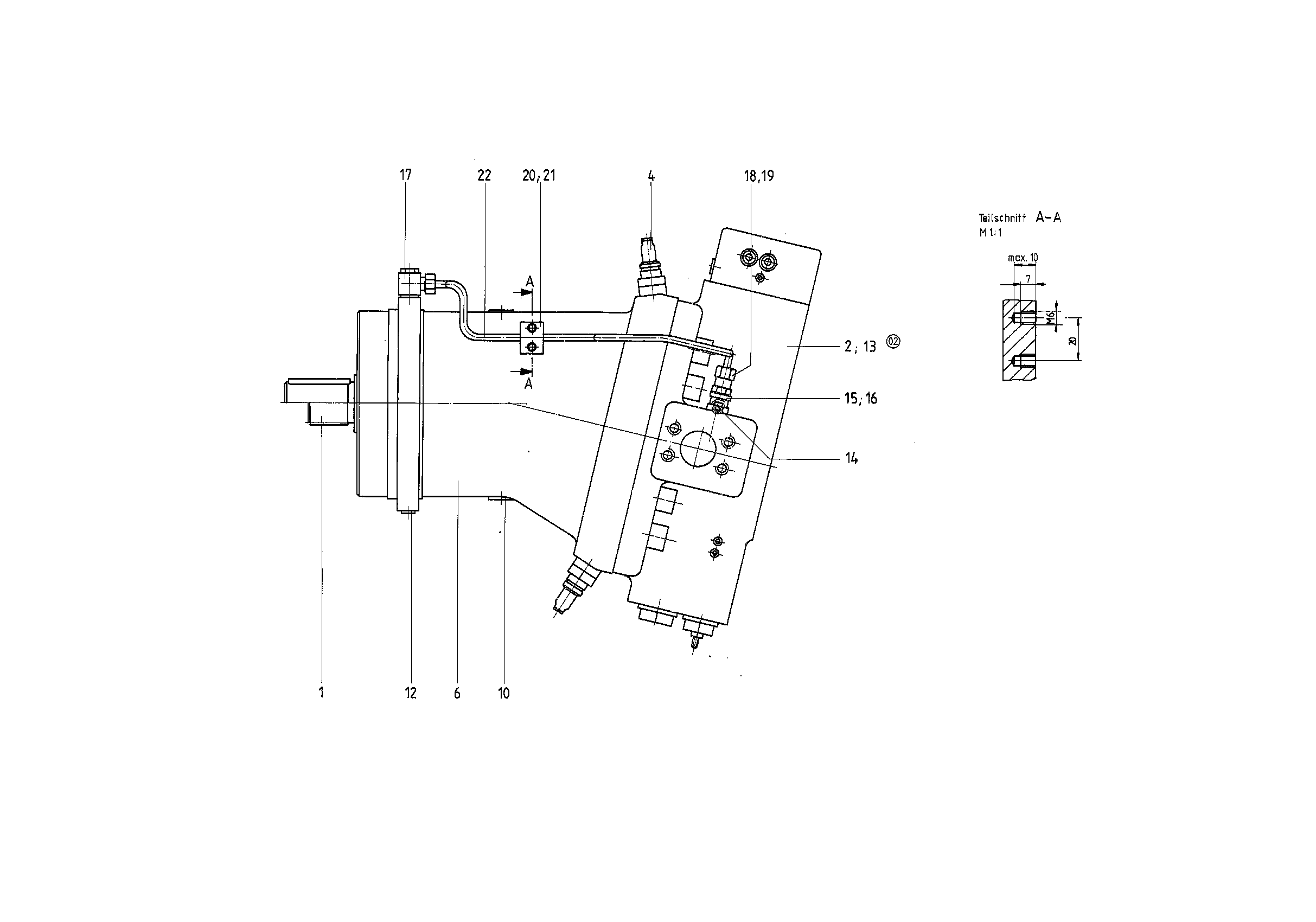

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910713201 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910849766 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910590789 | ADJUSTING PART Assembly parts list →L | 2 | ||
| R910801844 | HOUSING | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910847453 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R910736538 | NOZZLE | 1 | ||
| R910789232 | O-RINGD | 1 | ||
| R910949116 | THREADED FASTENER | 1 | ||
| R910778788 | THREADED FASTENER | 1 | ||
| R910797596 | THREADED FASTENER | 1 | ||
| R910913262 | THREADED FASTENER | 1 | ||
| R910533211 | CLAMP | 1 | ||
| R910109312 | SOCKET HEAD CAP SCREW | 2 | ||
| R910997196 | PIPEMYANMAR | 500 |
