Unit · AXIAL-PISTON PUMP
AA7V-SL500EL51LZFODR910803941
Axial piston pump Bosch Rexroth series A7V, type code AA7V-SL500EL51LZFOD, material number R910803941.
- Number
- R910803941
- Type code
- AA7V-SL500EL51LZFOD
- Group
- A7VSL 500
- Edition
- 06/2020

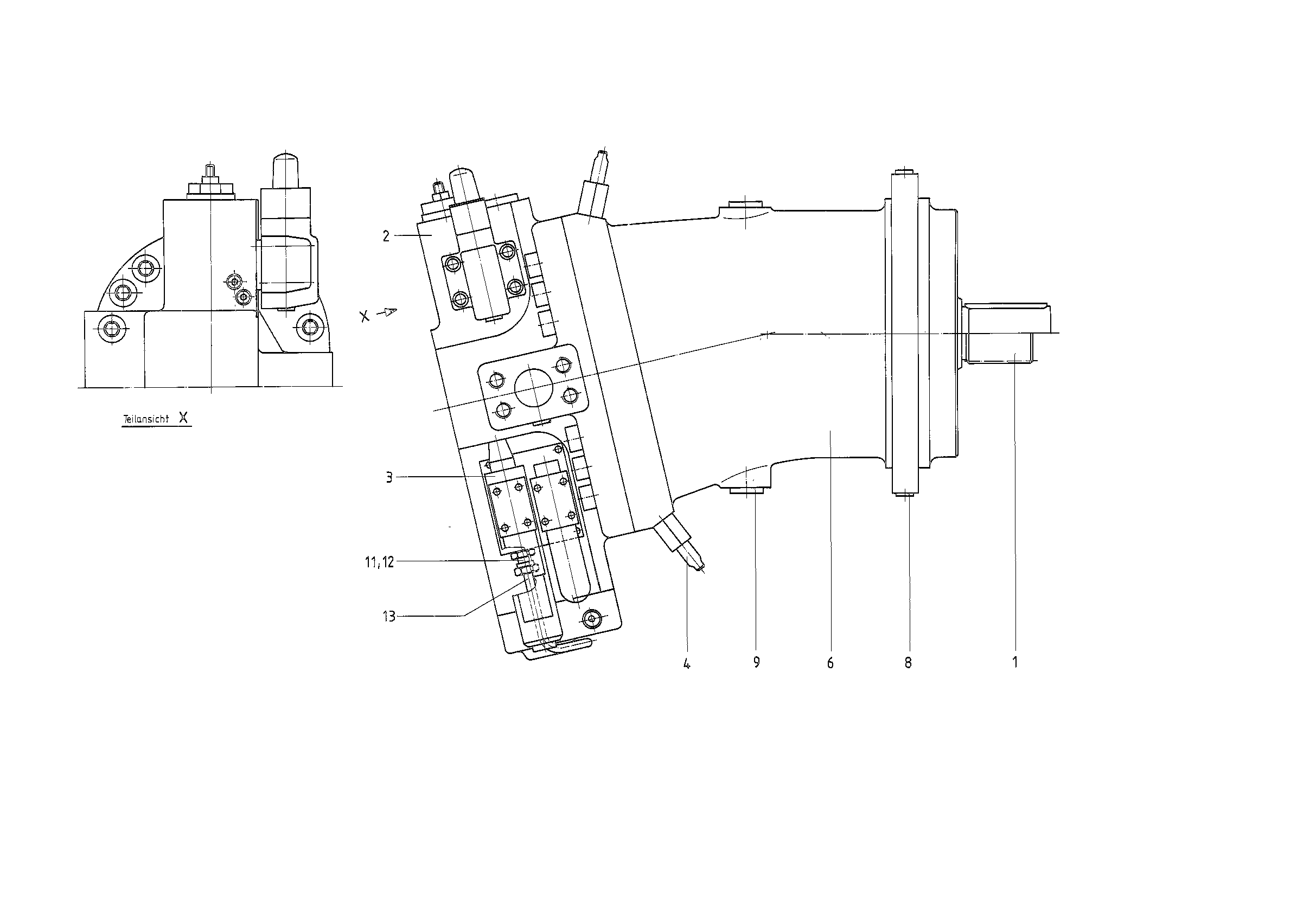

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910715166 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910800514 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910844462 | VALVE BLOCK Assembly parts list →L | 1 | |
| R910588571 | ADJUSTING PART Assembly parts list →L | 2 | ||
| 6 | R910811386 | HOUSING | 1 | |
| 8 | R909153815 | SCREW PLUGD | 2 | |
| 9 | R909153861 | SCREW PLUGD | 2 | |
| 11 | R910913262 | THREADED FASTENER | 1 | |
| R910903310 | THREADED FASTENER | 1 | ||
| 13 | R910136387 | PIPEMYANMAR | 300 |
