Unit · ADJUSTING PIECE
VERST. A7V 355 DR FERNGEST.R910817422
Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V355DRFERNGEST., material number R910817422.
- Number
- R910817422
- Type code
- VERST. A7V 355 DR FERNGEST.
- Group
- A7V 355
- Edition
- 06/2020

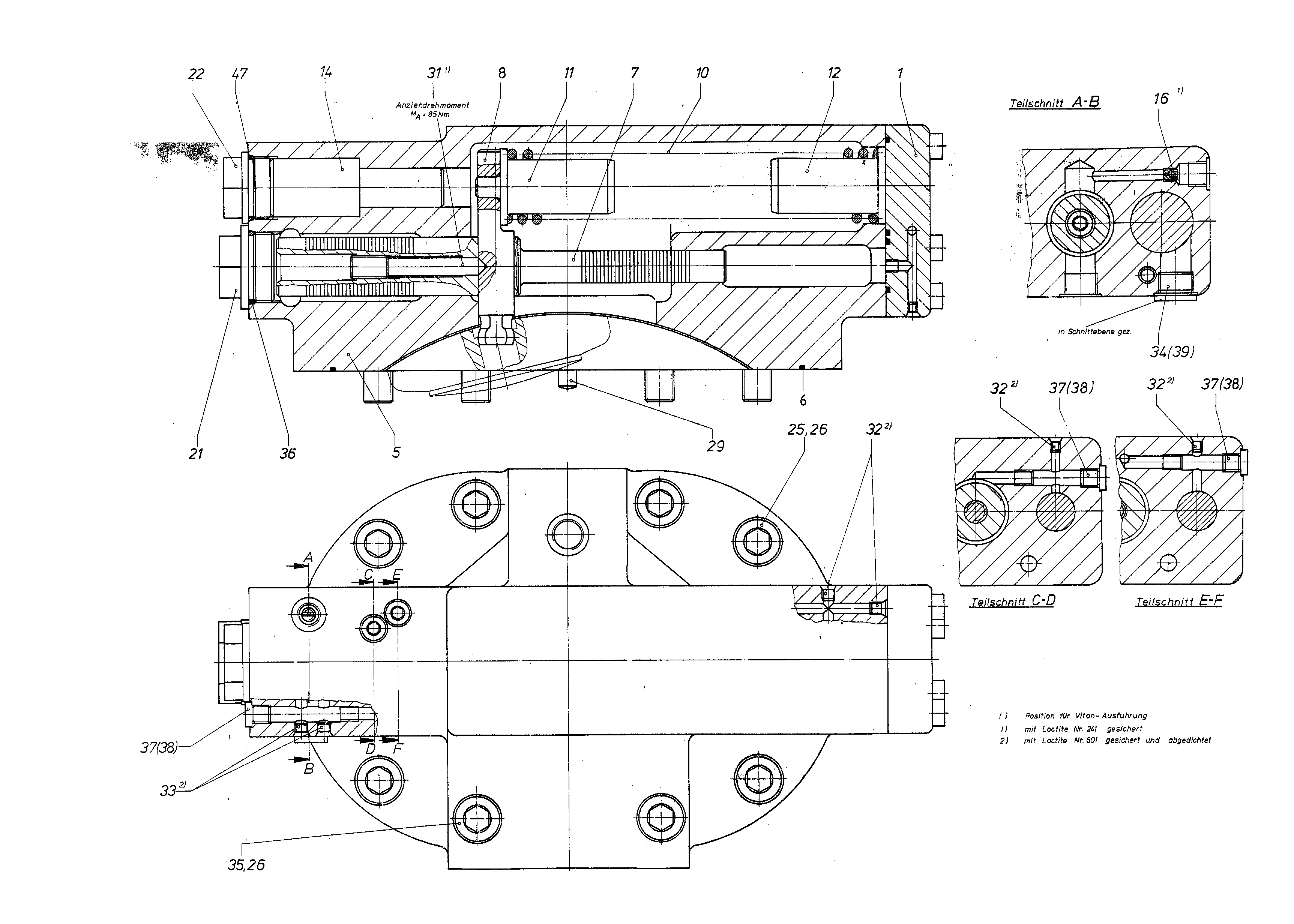

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 40 | R910587486 | COVER Assembly parts list →L | 1 | |
| 50 | R910804576 | COVER PLATE | 1 | |
| 50 | R910945102 | O-RINGD | 1 | |
| 50 | R910842001 | POSITIONING PISTON | 1 | |
| 50 | R902413797 | POSITIONING STUD | 1 | |
| 51 | R910585815 | COMPRESSION SPRING | 1 | |
| 51 | R910802417 | SPRING BUSH | 1 | |
| 51 | R910802425 | SPRING BUSH | 1 | |
| 51 | R910588652 | PLUG | 1 | |
| 51 | R910571261 | THROTTLE SCREW | 1 | |
| 52 | R910583758 | SCREW PLUG | 1 | |
| 52 | R910591483 | SCREW PLUG | 1 | |
| 53 | R910807001 | SETSCREW | 1 | |
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R909151694 | SCREW PLUGD | 1 | |
| 63 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910586897 | O-RINGD | 1 | |
| 63 | R909151692 | SCREW PLUGD | 3 | |
| 64 | R910516481 | O-RINGD | 1 |
