Unit · ADJUSTING PIECE
VERST.A7V 250 DR FOERDERSTR.RR910830305

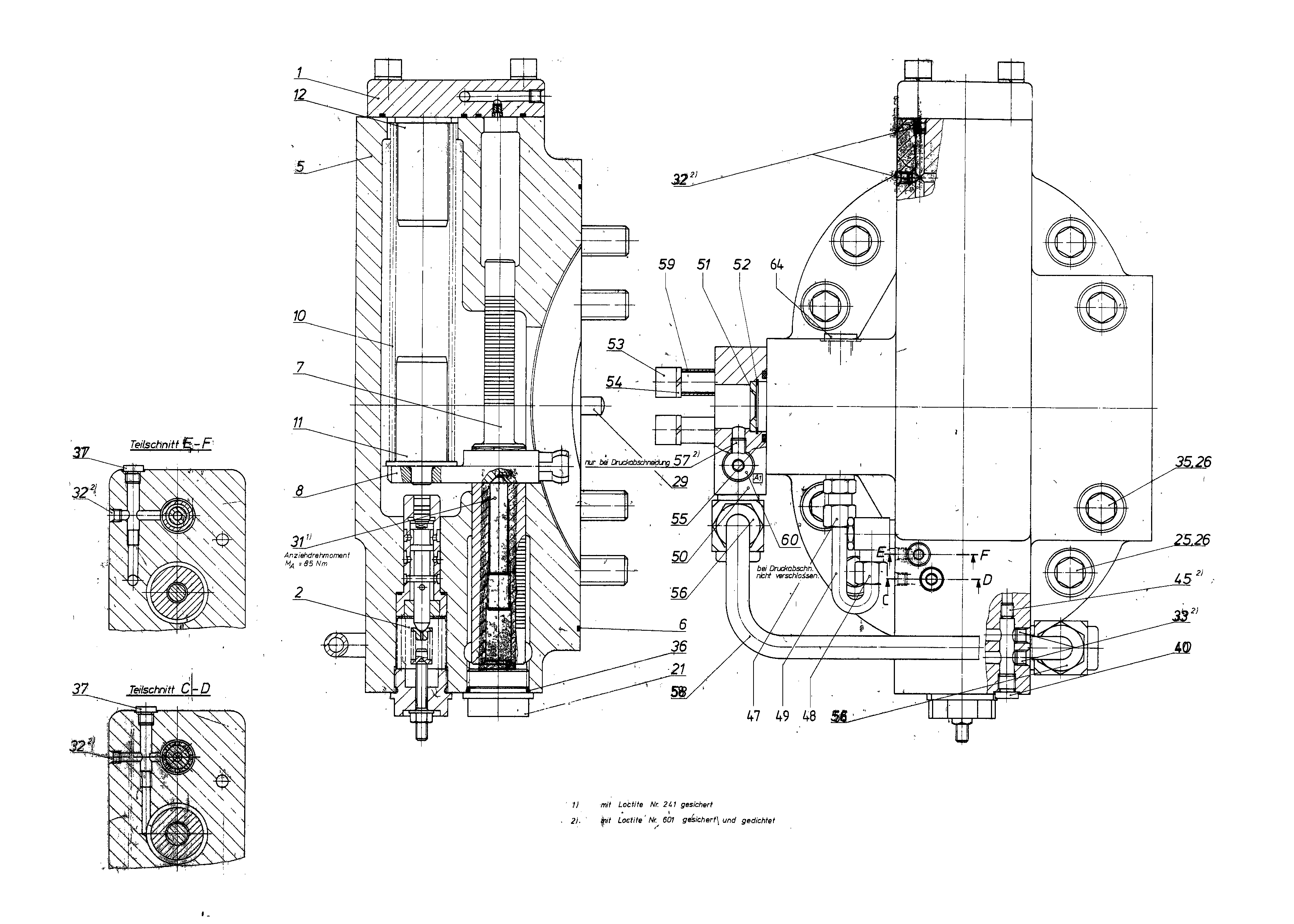

Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V250DRFOERDERSTR.R, material number R910830305.
- Number
- R910830305
- Type code
- VERST.A7V 250 DR FOERDERSTR.R
- Group
- A7V 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910595349 | COVER Assembly parts list →L | 1 | ||
| R910846708 | CONTROL PART Assembly parts list →L | 1 | ||
| R910844896 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591548 | COMPRESSION SPRING | 1 | ||
| R910801798 | SPRING BUSH | 1 | ||
| R910801828 | SPRING BUSH | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R910800236 | ORIFICE FLANGE | 1 | ||
| R910841307 | ORIFICE | 1 | ||
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910516481 | O-RINGD | 1 | |
| 63 | R909153364 | SCREW PLUGD | 2 | |
| R909151692 | SCREW PLUGD | 1 | ||
| R910118664 | SETSCREW | 1 | ||
| R910913262 | THREADED FASTENER | 1 | ||
| R910903310 | THREADED FASTENER | 1 | ||
| 65 | R910800368 | RETAINING RING | 1 | |
| 65 | R910119008 | SOCKET HEAD CAP SCREW | 4 | |
| 65 | R910100781 | SPRING LOCK WASHER | 4 | |
| 65 | R910515663 | O-RINGD | 1 | |
| 65 | R910903350 | THREADED FASTENER | 2 | |
| 66 | R909153816 | SCREW PLUGD | 1 | |
| 74 | R910136387 | PIPEMYANMAR | 200 | |
| 75 | R910521647 | PIPEMYANMAR | 470 | |
| 75 | R910094099 | PIPEMYANMAR | 25 |
