Unit · ADJUSTING PIECE
VERST. A7V 500 LV FERNGEST. VR910841714

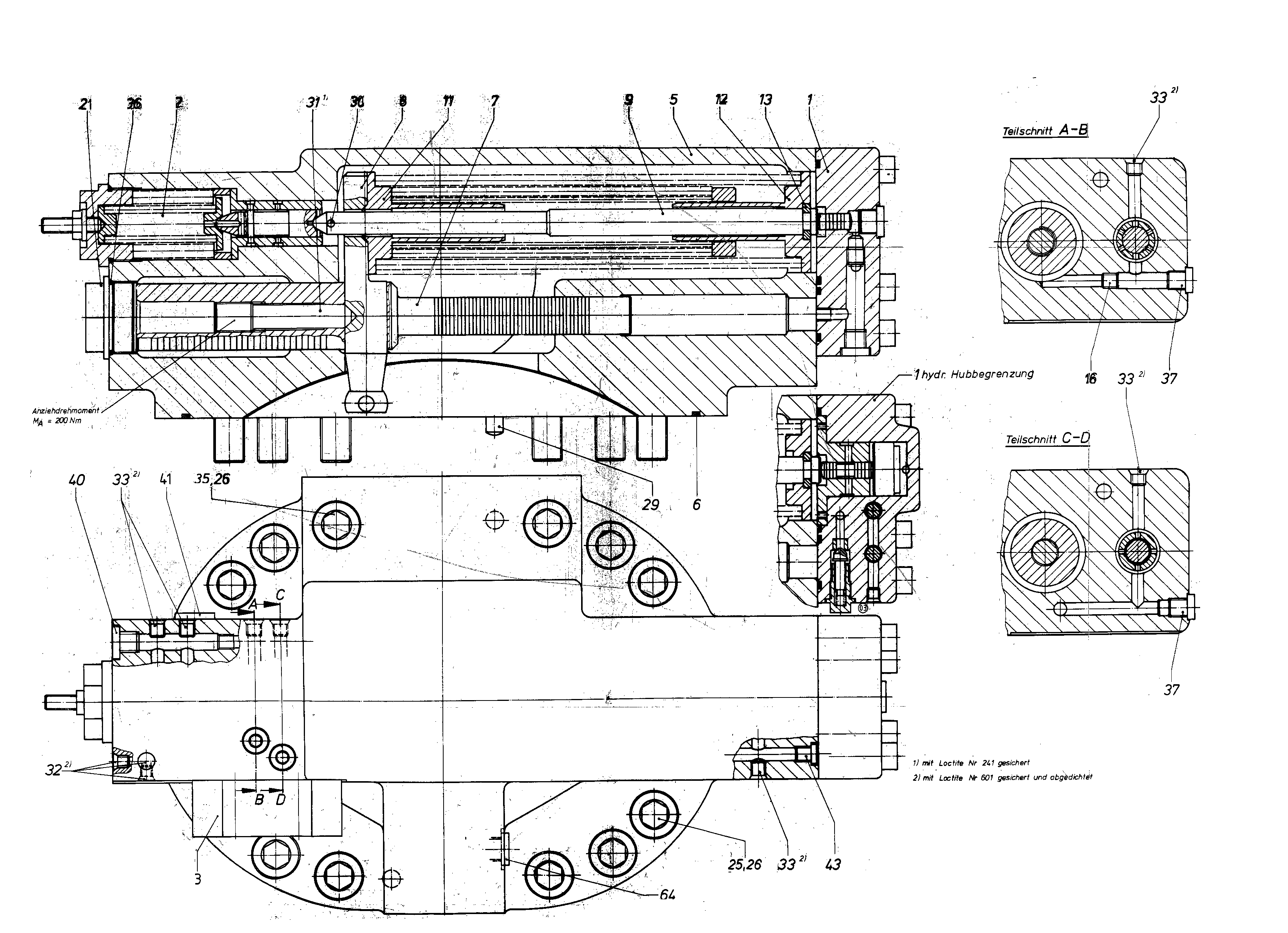

Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V500LVFERNGEST.V, material number R910841714.
- Number
- R910841714
- Type code
- VERST. A7V 500 LV FERNGEST. V
- Group
- A7V 500
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910850004 | COVER Assembly parts list →L | 1 | ||
| 2 | R910588547 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910809322 | CONNECTING PIECE | 1 | |
| 5 | R910803464 | COVER PLATE | 1 | |
| 6 | R910801399 | O-RINGD | 1 | |
| 7 | R910841994 | POSITIONING PISTON | 1 | |
| 8 | R902413796 | POSITIONING STUD | 1 | |
| 9 | R910596752 | GUIDE ROD | 1 | |
| 11 | R910802522 | SPRING BUSH | 1 | |
| 12 | R910802549 | SPRING BUSH | 1 | |
| R910582743 | RING | 1 | ||
| R910571288 | THROTTLE SCREW | 1 | ||
| 21 | R910583758 | SCREW PLUG | 1 | |
| 25 | R910705799 | SOCKET HEAD CAP SCREW | 10 | |
| 26 | R910100838 | SPRING LOCK WASHER | 12 | |
| R910514179 | STRAIGHT PIN | 2 | ||
| 30 | R910529206 | SLOTTED SPRING PIN | 1 | |
| 31 | R902533059 | SETSCREW | 1 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831320 | DOUBLE BREAK-OFF PLUG | 3 | ||
| 35 | R910801402 | SOCKET HEAD CAP SCREW | 2 | |
| 36 | R910587214 | O-RINGD | 1 | |
| R909156650 | SCREW PLUGD | 2 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| 41 | R909151694 | SCREW PLUGD | 1 | |
| 43 | R909156649 | SCREW PLUGD | 1 | |
| R909156864 | SCREW PLUGD | 1 |
