Unit · AXIAL-PISTON PUMP
AA7V250EL51LZFODR910849006
Axial piston pump Bosch Rexroth series A7V, type code AA7V250EL51LZFOD, material number R910849006.
- Number
- R910849006
- Type code
- AA7V250EL51LZFOD
- Group
- A7V 250
- Edition
- 06/2020

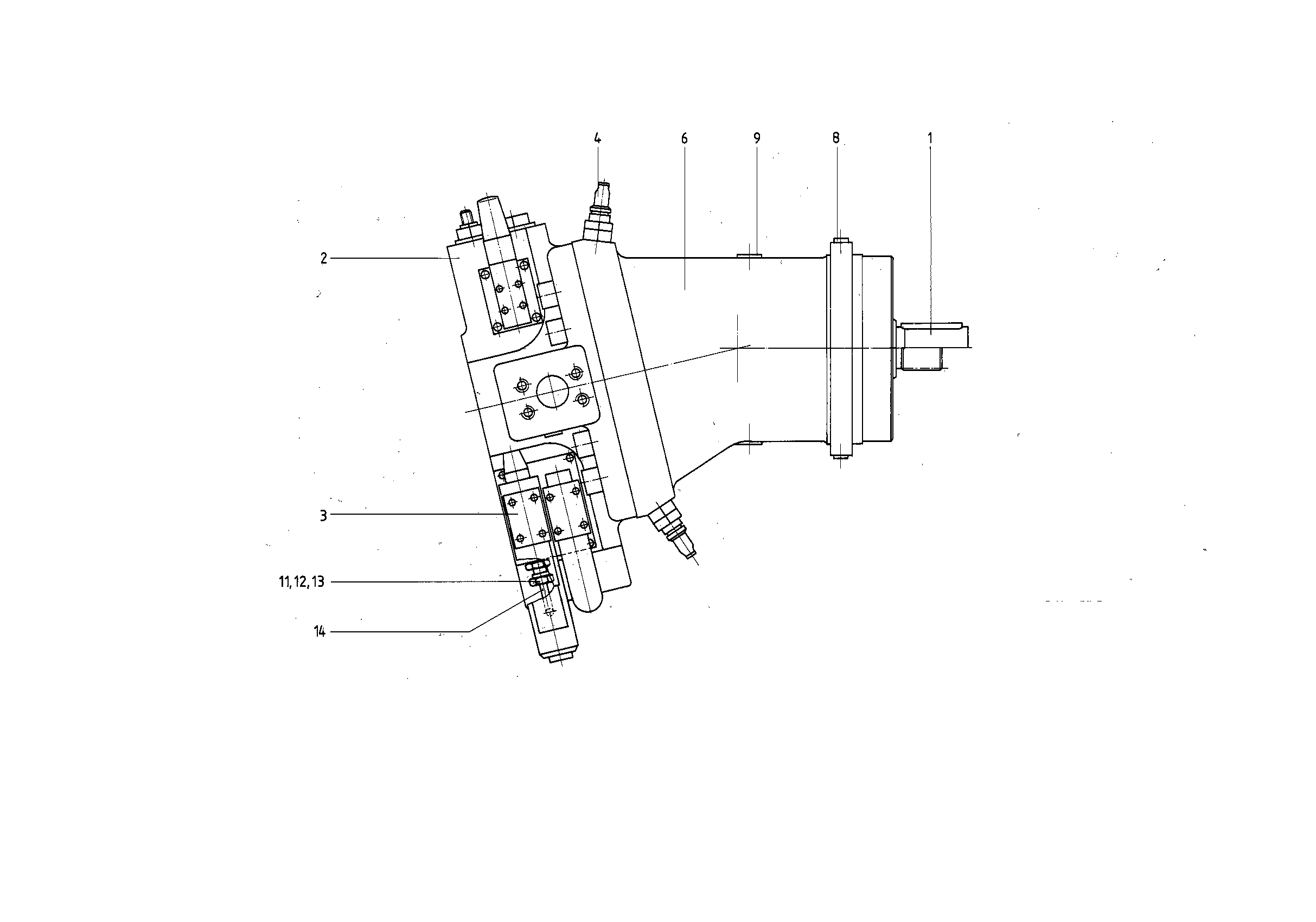

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910713244 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910844489 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910844462 | VALVE BLOCK Assembly parts list →L | 1 | |
| 4 | R910590789 | ADJUSTING PART Assembly parts list →L | 2 | |
| 6 | R910801844 | HOUSING | 1 | |
| 8 | R909151979 | SCREW PLUGD | 2 | |
| 9 | R909151694 | SCREW PLUGD | 2 | |
| R910913262 | THREADED FASTENER | 1 | ||
| R910797596 | THREADED FASTENER | 1 | ||
| R910778788 | THREADED FASTENER | 1 | ||
| 14 | R910997196 | PIPEMYANMAR | 200 |
