Unit · ADJUSTING PIECE
VERST.A7V1000LVHYDR.HUBBEGR.-SOR910850268

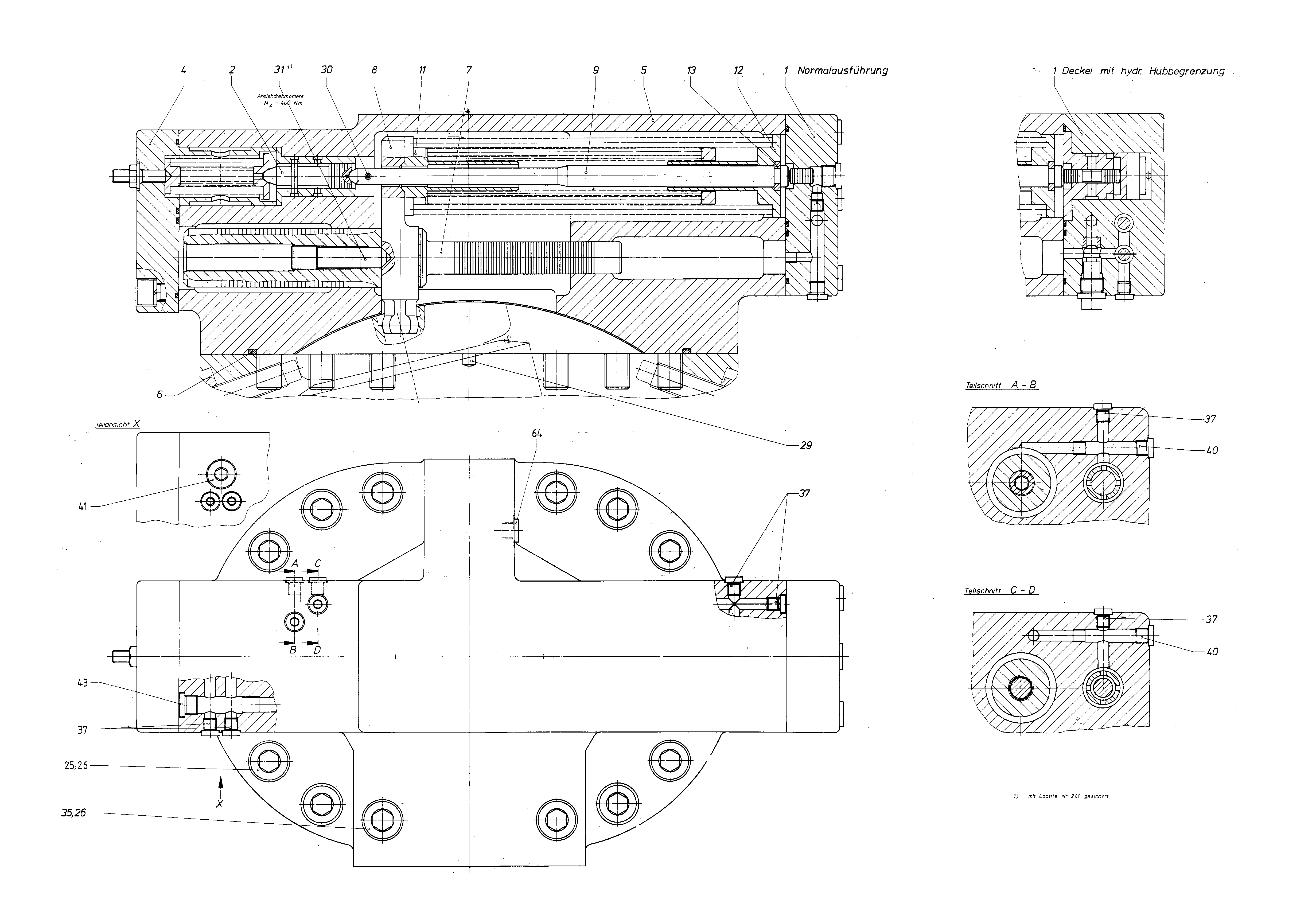

Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V1000LVHYDR.HUBBEGR.-SO, material number R910850268.
- Number
- R910850268
- Type code
- VERST.A7V1000LVHYDR.HUBBEGR.-SO
- Group
- A7V 1000
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910850284 | COVER Assembly parts list →L | 1 | ||
| R910590681 | CONTROL PART Assembly parts list →L | 1 | ||
| R910805556 | COVER Assembly parts list →L | 1 | ||
| R910805335 | COVER PLATE | 1 | ||
| R910544752 | O-RINGD | 1 | ||
| R910841803 | POSITIONING PISTON | 1 | ||
| R902414363 | POSITIONING STUD | 1 | ||
| R910590304 | GUIDE ROD | 1 | ||
| R910806749 | SPRING BUSH | 1 | ||
| R910806757 | SPRING BUSH | 1 | ||
| R910590207 | RING | 1 | ||
| R910414751 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100846 | SPRING LOCK WASHER | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910672009 | SLOTTED SPRING PIN | 1 | ||
| R902533060 | SETSCREW | 1 | ||
| R910579947 | SOCKET HEAD CAP SCREW | 2 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
