Unit · ADJUSTING PIECE
VERST. A7V 250 DR EL.FERNGESTR910850918

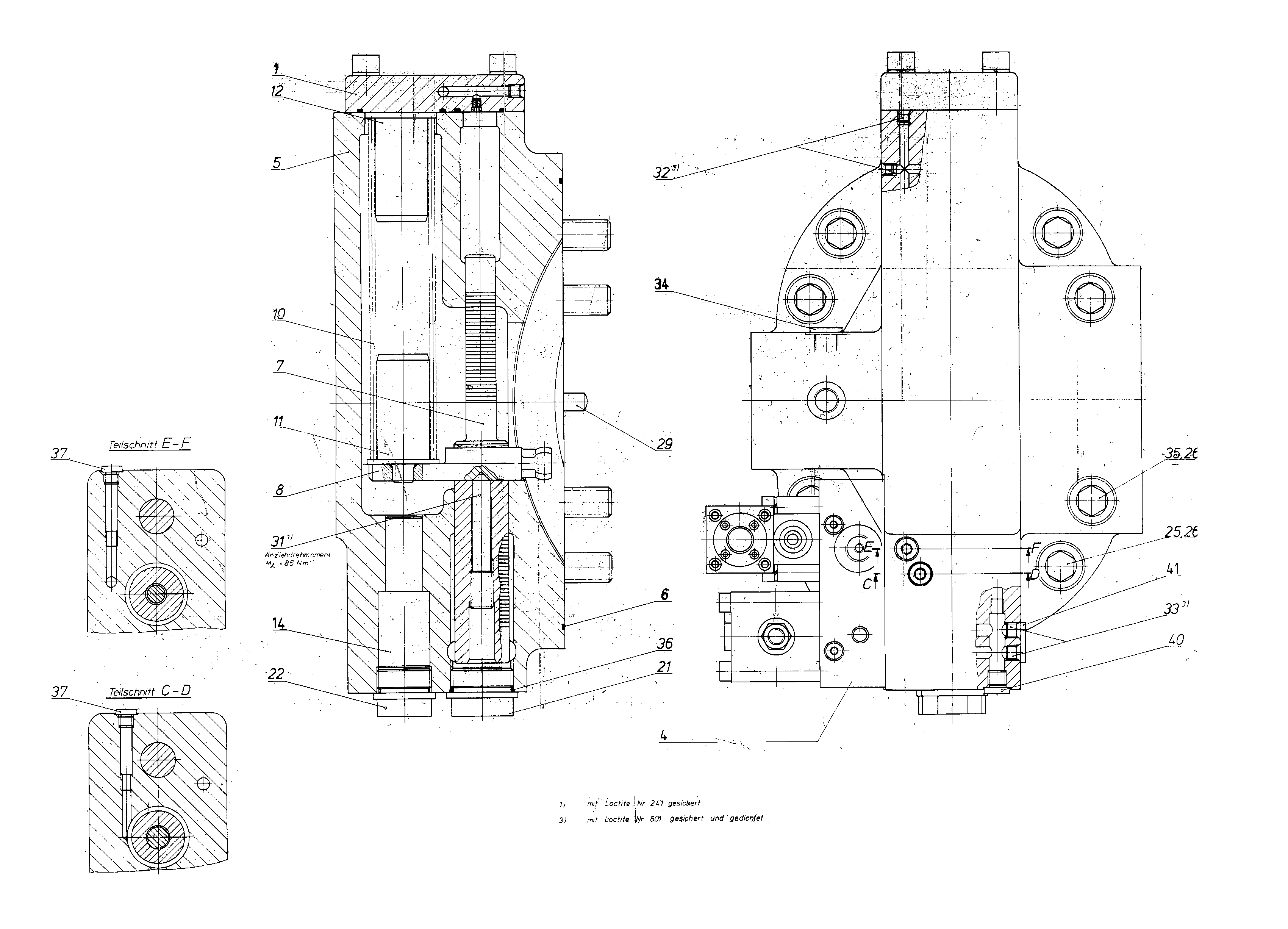

Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V250DREL.FERNGEST, material number R910850918.
- Number
- R910850918
- Type code
- VERST. A7V 250 DR EL.FERNGEST
- Group
- A7V 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910595349 | COVER Assembly parts list →L | 1 | ||
| R910850888 | CONNECTING BLOCK Assembly parts list →L | 1 | ||
| R910850845 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591548 | COMPRESSION SPRING | 1 | ||
| R910801798 | SPRING BUSH | 1 | ||
| R910801828 | SPRING BUSH | 1 | ||
| R910595381 | PLUG | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910595403 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R910516481 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 1 |
