Unit · ADJUSTING PIECE
VERST. A7V 355 MECH.HUBBEGR.R910851973

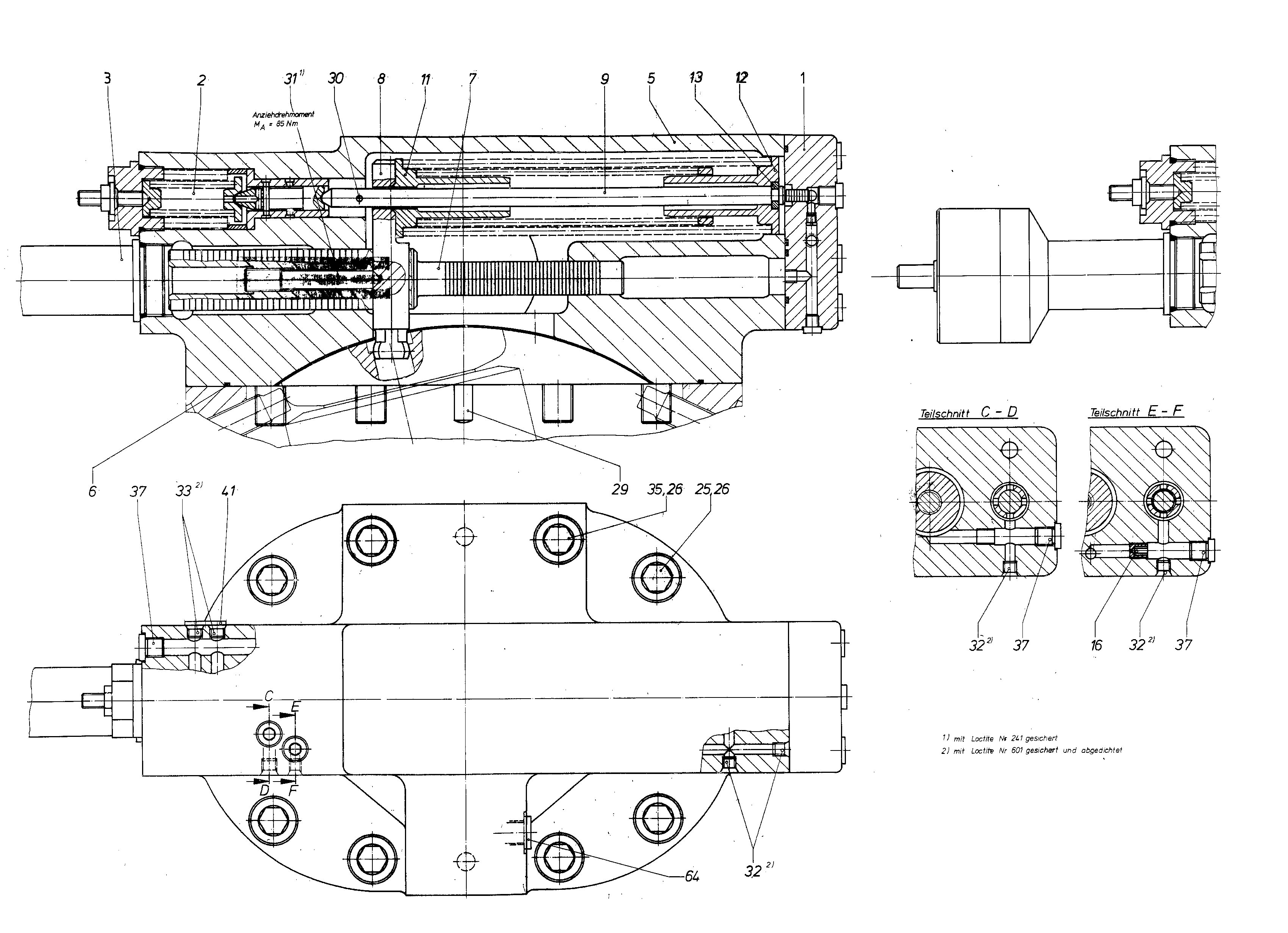

Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V355MECH.HUBBEGR., material number R910851973.
- Number
- R910851973
- Type code
- VERST. A7V 355 MECH.HUBBEGR.
- Group
- A7V 355
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910587893 | COVER Assembly parts list →L | 1 | ||
| R910587451 | CONTROL PART Assembly parts list →L | 1 | ||
| R910599786 | STROKE LIMITER Assembly parts list →L | 1 | ||
| R910803073 | COVER PLATE | 1 | ||
| R910945102 | O-RINGD | 1 | ||
| R910842001 | POSITIONING PISTON | 1 | ||
| R902413797 | POSITIONING STUD | 1 | ||
| R910583979 | GUIDE ROD | 1 | ||
| R910801615 | SPRING DISK | 1 | ||
| R910801607 | SPRING DISK | 1 | ||
| R910583855 | RING | 1 | ||
| R910507431 | THROTTLE SCREW | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 2 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
