Unit · REGULATOR
R A4VSO 71 LR2R910904386
Control Bosch Rexroth series A4VSO, type code RA4VSO71LR2, material number R910904386. Nominal size: NG 71. Axial piston unit (Variable swashplate design): nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (A4VS). Operating mode: pump, open circuit (O). Control device: power controller with hyperbolic characteristic curve; basic setting Vg max (LR).
- Number
- R910904386
- Type code
- R A4VSO 71 LR2
- Group
- A4VSO 71
- Edition
- 05/2020

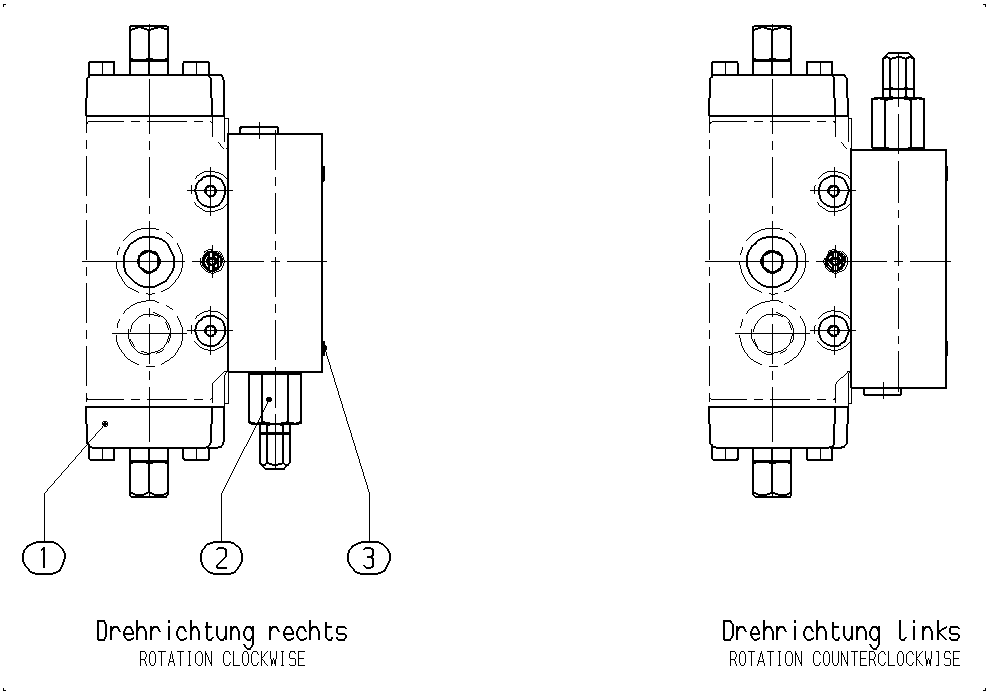

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910904373 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910984429 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910903670 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit (Variable swashplate design) | Nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Power controller with hyperbolic characteristic curve; basic setting Vg max | LR |
| mechanically adjustable | 2 |
