Unit · CONTROL
V A4VS 40 DR -VR910904938

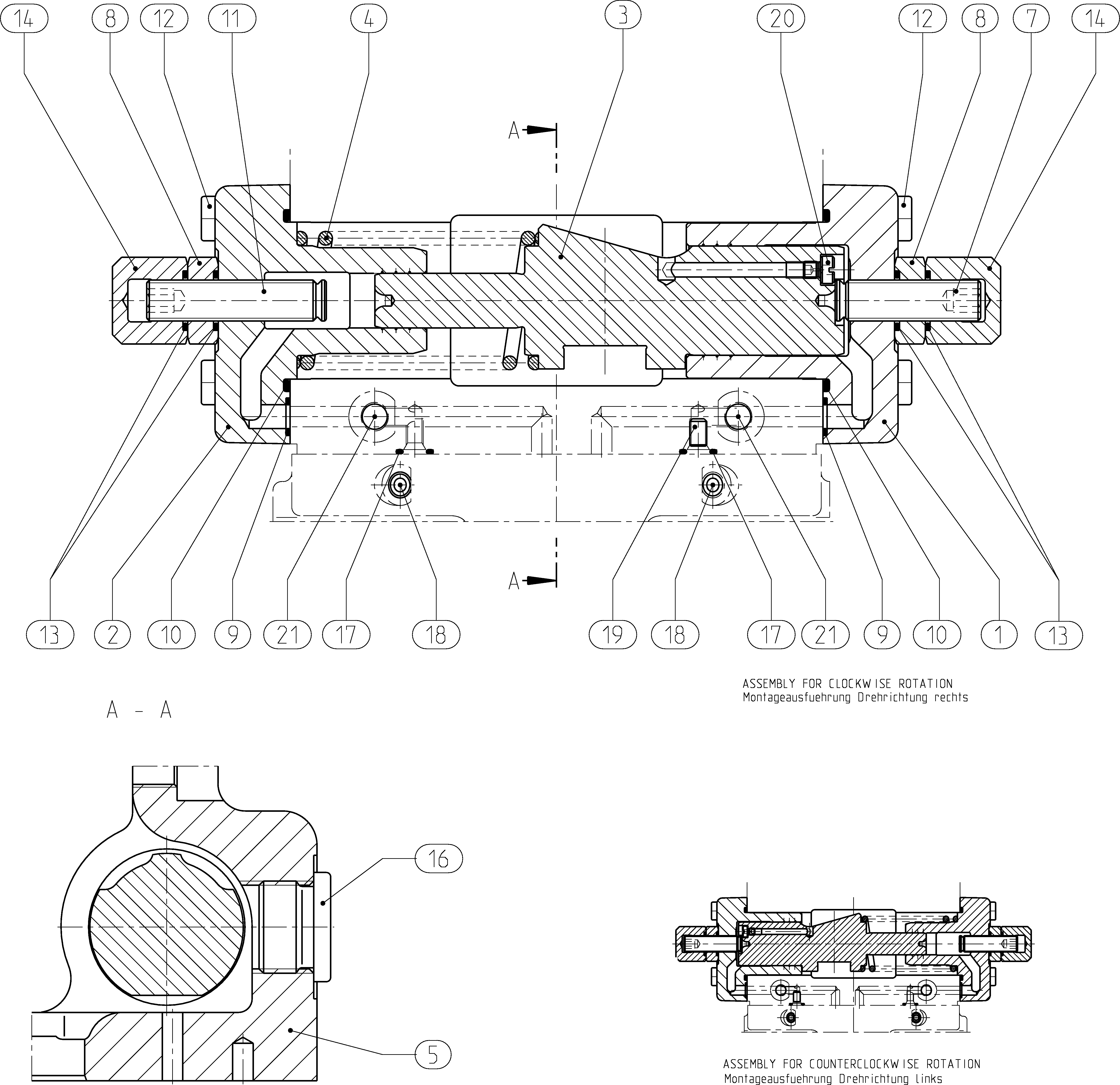

Control Bosch Rexroth series A4VS, type code VA4VS40DR-V, material number R910904938.
- Number
- R910904938
- Type code
- V A4VS 40 DR -V
- Group
- A4VS 40
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910945978 | PISTON HOUSING | 1 | ||
| R910945951 | PISTON HOUSING | 1 | ||
| R902531052 | ADJUSTING PISTON | 1 | ||
| R910943109 | COMPRESSION SPRING | 1 | ||
| R910922438 | PUMP HOUSING | 1 | ||
| R902519538 | STUD BOLT | 1 | ||
| R910903390 | NUT | 2 | ||
| R910942133 | R-RINGD | 2 | ||
| R910904936 | O-RINGD | 2 | ||
| R902519539 | STUD BOLT | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 8 | ||
| R910919314 | O-RINGD | 4 | ||
| R910903349 | CAP NUT | 2 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910678899 | SETSCREW | 1 | ||
| R910134112 | NOZZLE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
