Unit · AXIAL-PISTON PUMP
A AA10VSO 45 DFR /31L-PKC62N00 -SO 89R910910413
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO45DFR/31L-PKC62N00-SO89, material number R910910413. Nominal size: NG 45. Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 89.
- Number
- R910910413
- Type code
- A AA10VSO 45 DFR /31L-PKC62N00 -SO 89
- Group
- A10VSO 45
- Edition
- 06/2020

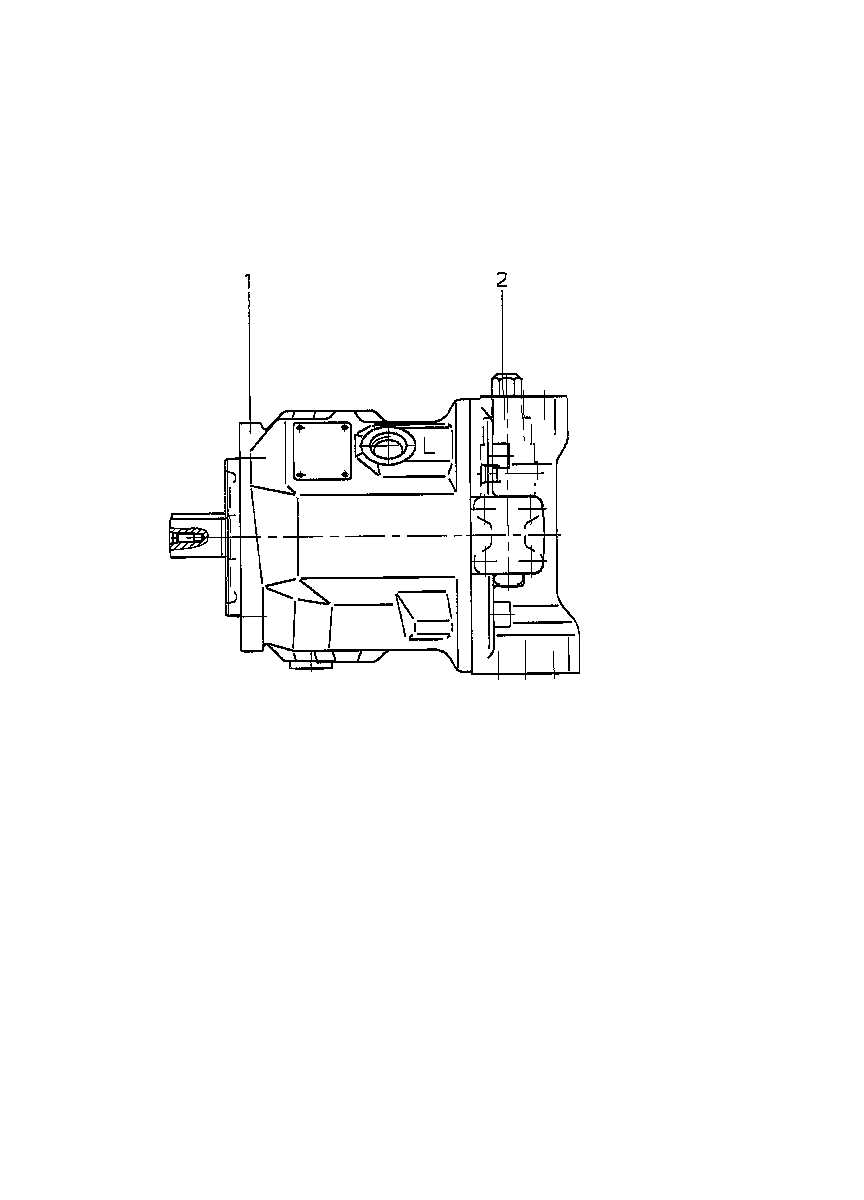

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910910358 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902453430 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
