Unit · AXIAL-PISTON PUMP
A A10V O 45 DFR1/31R-VSC61N00 -S1504R910910711
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR1/31R-VSC61N00-S1504, material number R910910711. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00). Special version no. 1504.
- Number
- R910910711
- Type code
- A A10V O 45 DFR1/31R-VSC61N00 -S1504
- Group
- A10VO 45
- Edition
- 05/2020

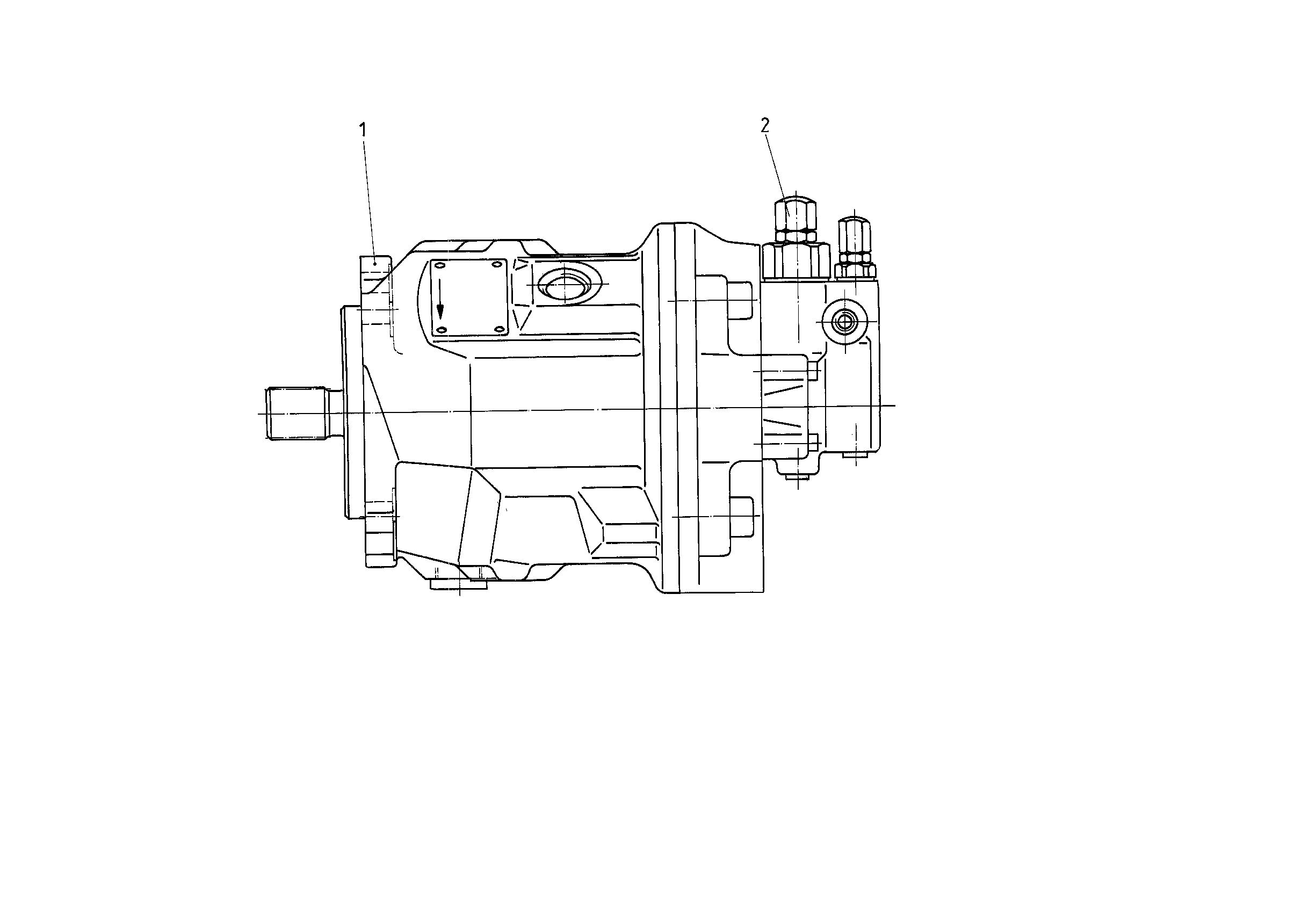

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902423416 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902450439 | CONTROL VALVE Assembly parts list →L | 1 | |
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421948 | SHIPPING PROTECTION | 1 | |
| 72 | R902603190 | SEAL SCREW | 1 | |
| 73 | R902602014 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive | 61 |
| Through drive | Without through drive | N00 |
