Unit · CONTROL
V A6V M 250 HA2 /61-V027AR910910964
Control Bosch Rexroth series A6VM, type code VA6VM250HA2/61-V027A, material number R910910964. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R910910964
- Type code
- V A6V M 250 HA2 /61-V027A
- Group
- A6VM 250
- Edition
- 06/2020

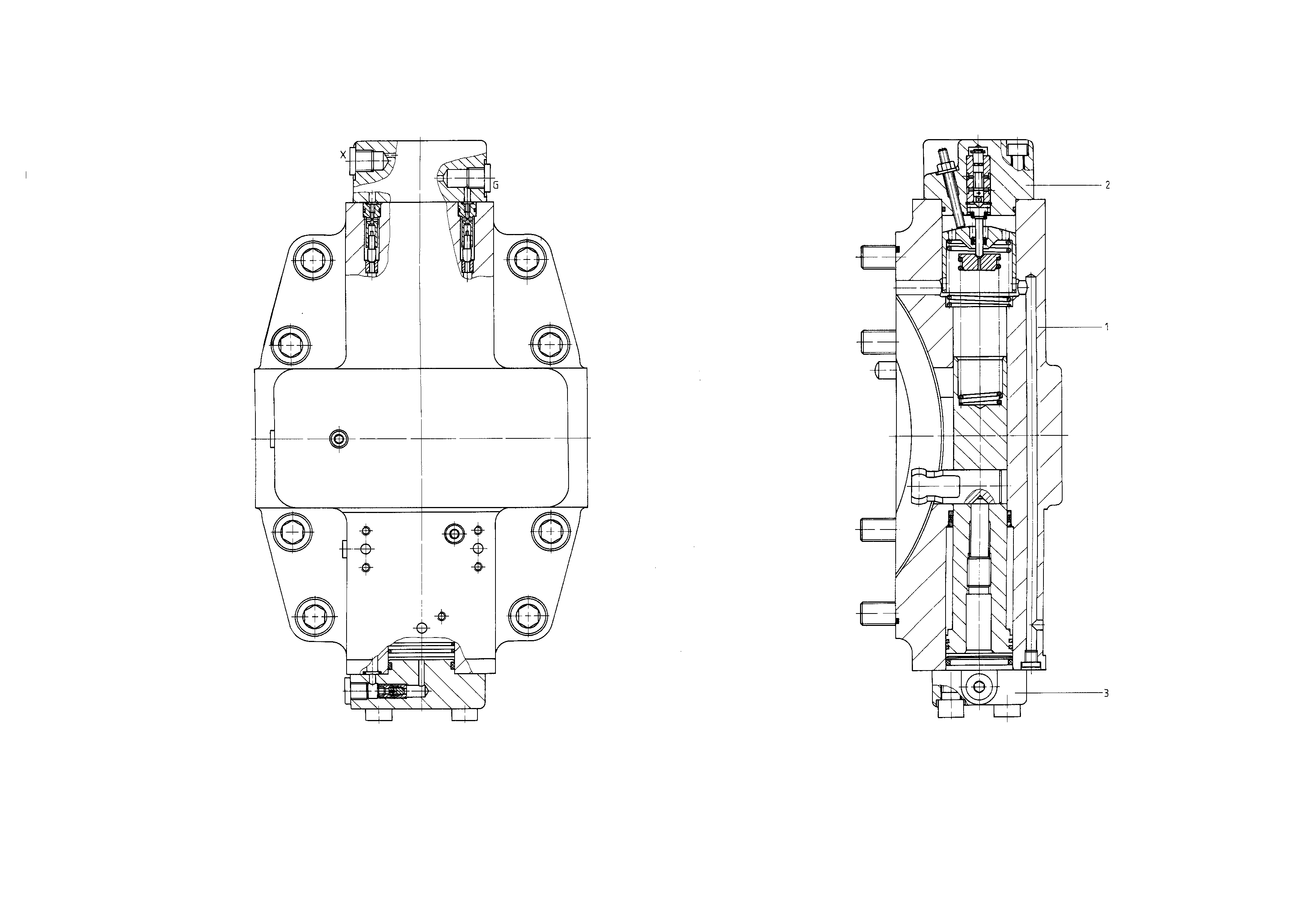

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910910966 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| 2 | R910908741 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910908742 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg min (standard for HA) | A |
