Unit · CONTROL
V A6V M 250 HA1 /61-P020AR910911644
Control Bosch Rexroth series A6VM, type code VA6VM250HA1/61-P020A, material number R910911644. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R910911644
- Type code
- V A6V M 250 HA1 /61-P020A
- Group
- A6VM 250
- Edition
- 06/2020

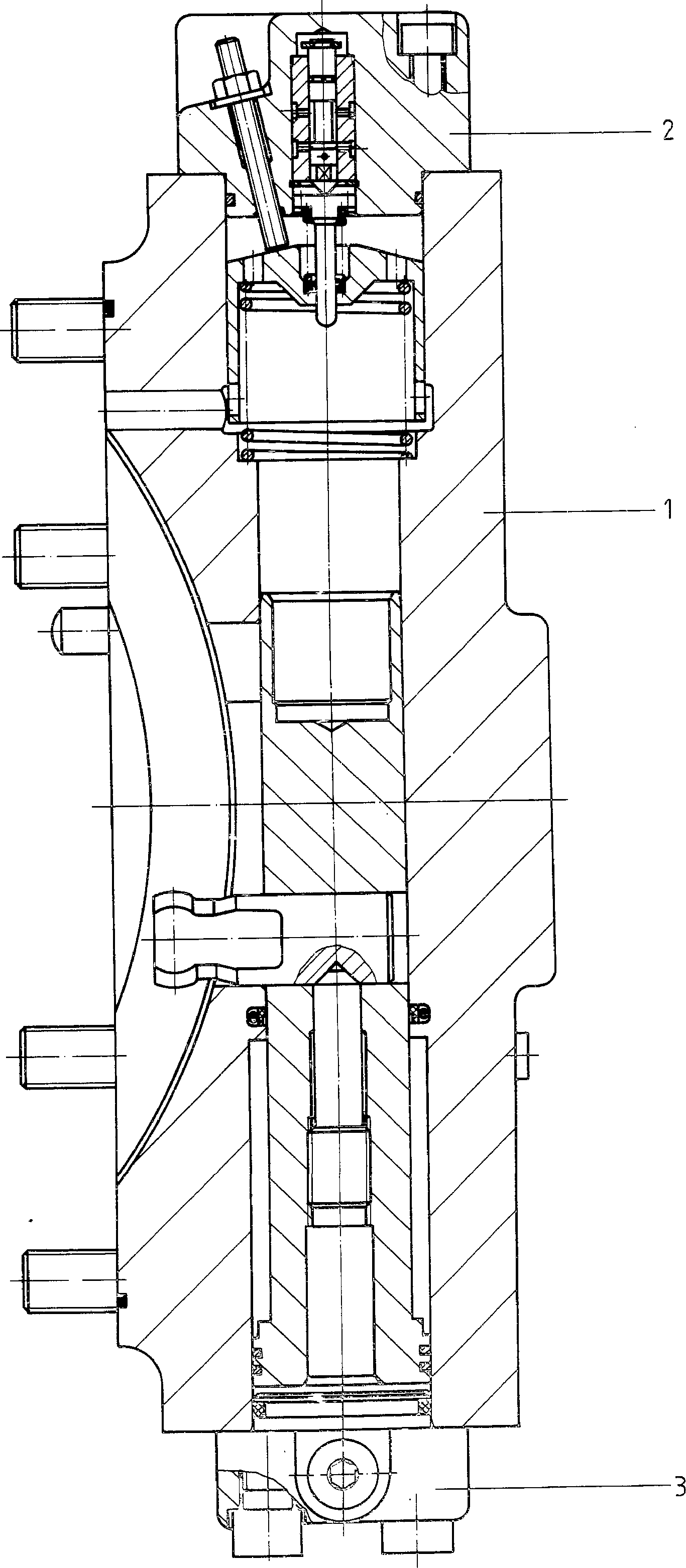

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910905250 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910801388 | CONTROL PART Assembly parts list →L | 1 | ||
| R910802528 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
