Unit · AXIAL-PISTON PUMP

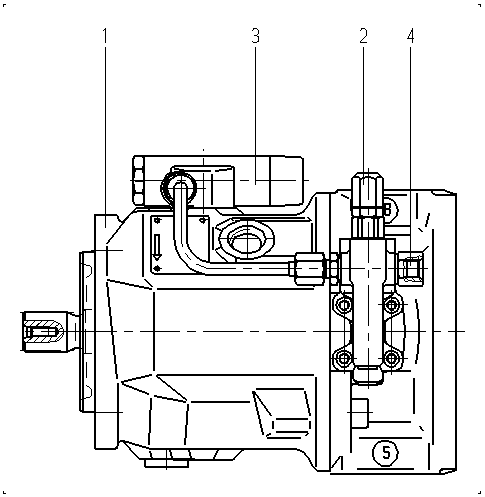

AA10VO45+DFLR/31R-PSC62K01-SO20R910912303
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45+DFLR/31R-PSC62K01-SO20, material number R910912303. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O).
- Number
- R910912303
- Type code
- AA10VO45+DFLR/31R-PSC62K01-SO20
- Group
- A10VO 45
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910908904 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533275 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932940 | ADAPTER Assembly parts list →L | 1 | ||
| 10 | R910960164 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
