Unit · CONTROL
V A6V M 250 DA /61-P027B -SO 14R910912350
Control Bosch Rexroth series A6VM, type code VA6VM250DA/61-P027B-SO14, material number R910912350. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 14.
- Number
- R910912350
- Type code
- V A6V M 250 DA /61-P027B -SO 14
- Group
- A6VM 250
- Edition
- 06/2020

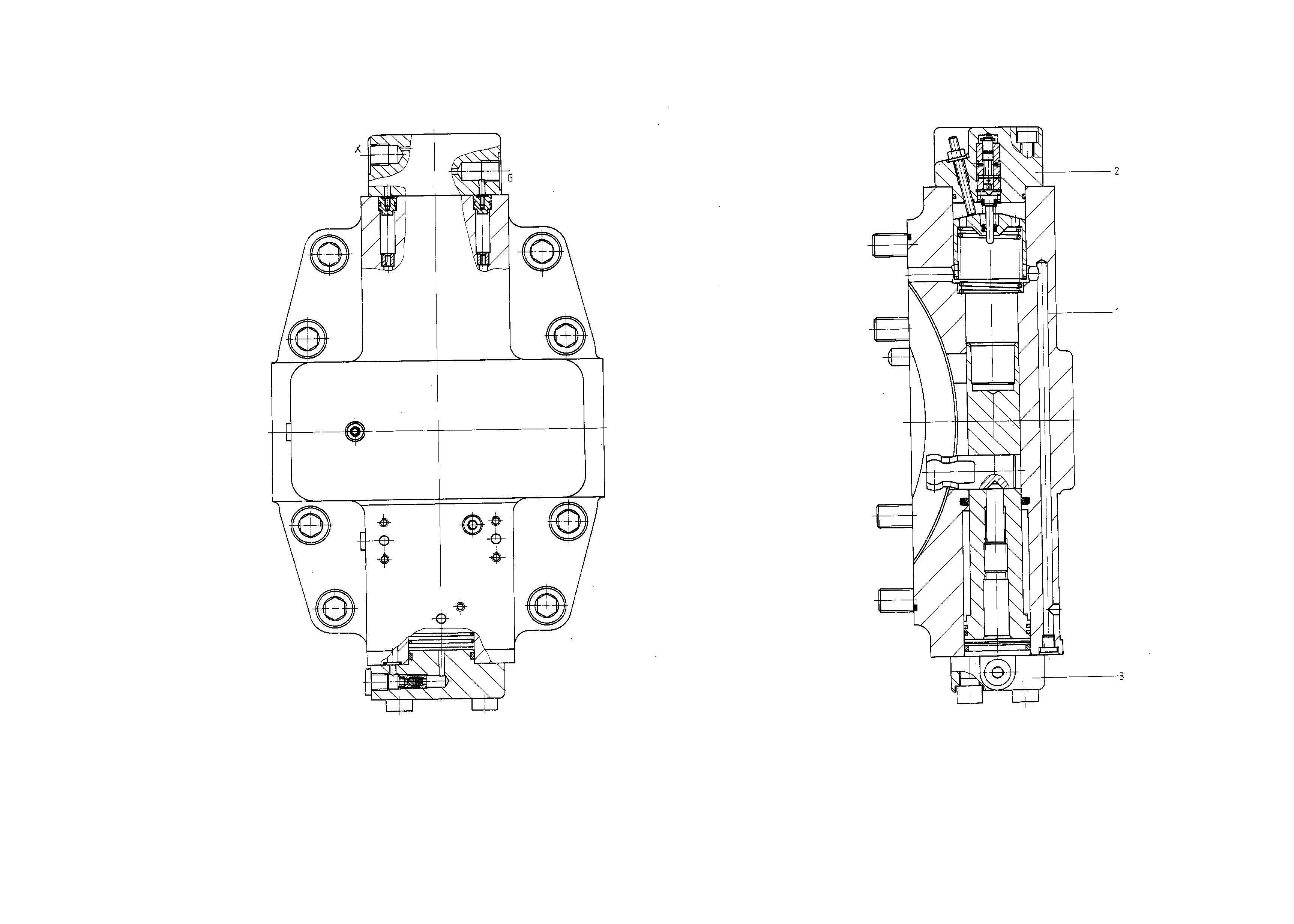

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910909428 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910912349 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910802528 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve | DA |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
