Unit · AXIAL-PISTON MOTOR
AAA6VM250HD1D/61W-VSD520BR910912866
Axial piston motor Bosch Rexroth series A6VM, type code AAA6VM250HD1D/61W-VSD520B, material number R910912866. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 145 psi (10 bar) (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R910912866
- Type code
- AAA6VM250HD1D/61W-VSD520B
- Group
- A6VM 250
- Edition
- 06/2020

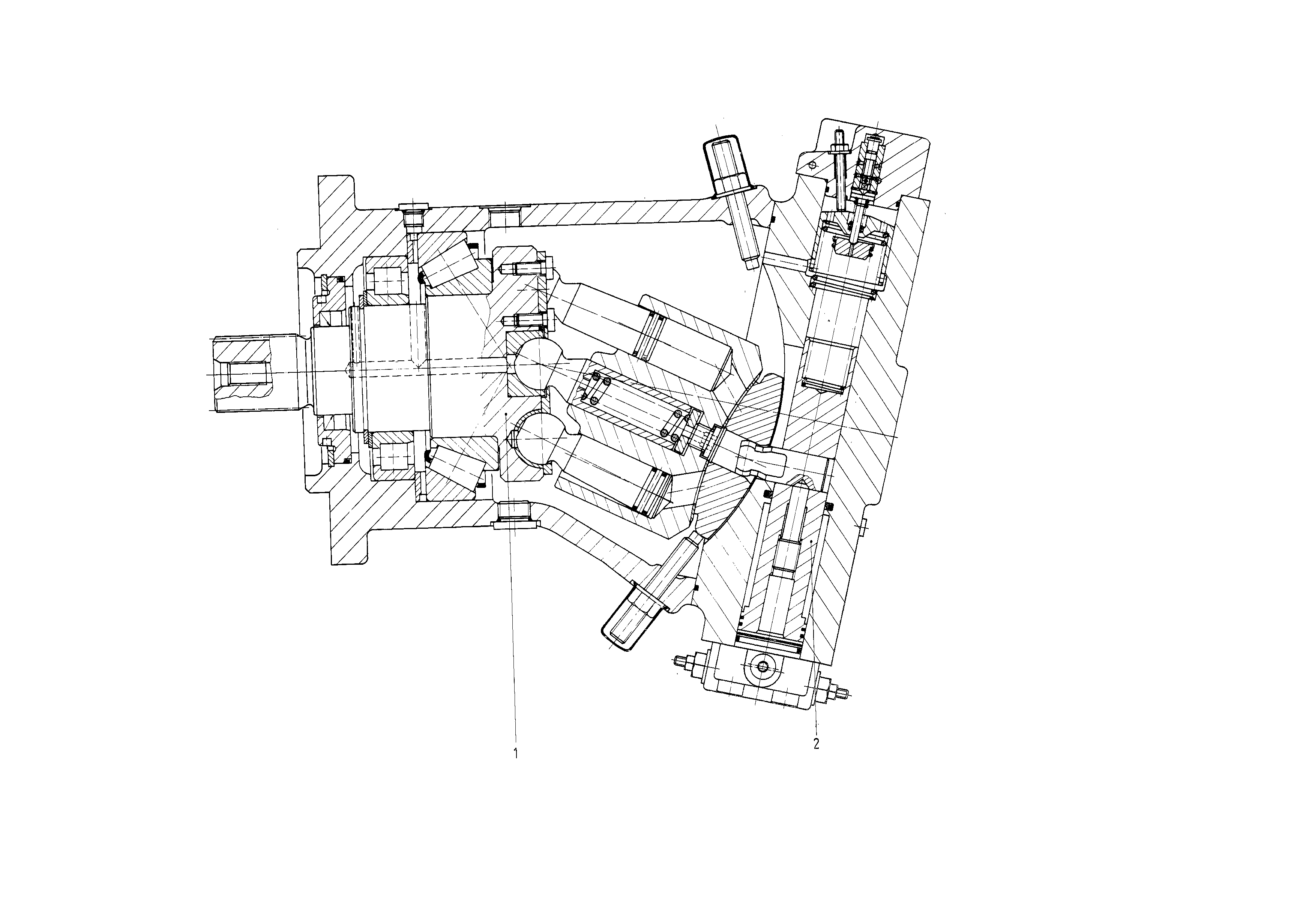

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910909652 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910912750 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, hydraulic ΔpSt = 145 psi (10 bar) | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 52 | 520 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
