Unit · AXIAL-PISTON PUMP
A A10V O 45+DFE /31R-PSC62K04R910912963
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45+DFE/31R-PSC62K04, material number R910912963. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O).
- Number
- R910912963
- Type code
- A A10V O 45+DFE /31R-PSC62K04
- Group
- A10VO 45
- Edition
- 06/2020

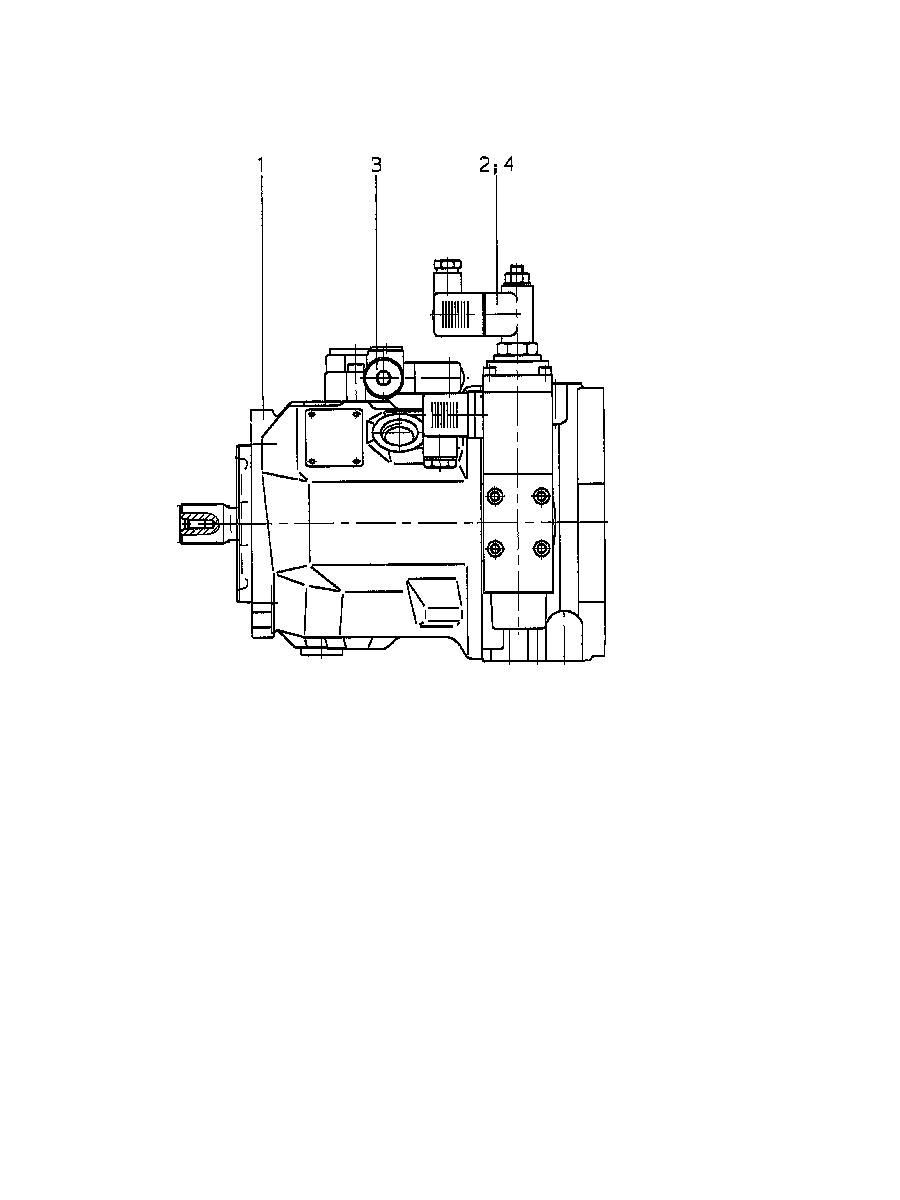

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910941667 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902425762 | ELECTRONIC CONTROLS Assembly parts list →L | 1 | |
| 3 | R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | |
| 4 | R910110159 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
