Unit · AXIAL-PISTON MOTOR
G A6V M 355 /61W-VPHR910913033
Axial piston motor Bosch Rexroth series A6VM, type code GA6VM355/61W-VPH, material number R910913033. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 8-hole (H).
- Number
- R910913033
- Type code
- G A6V M 355 /61W-VPH
- Group
- A6VM 355
- Edition
- 06/2020

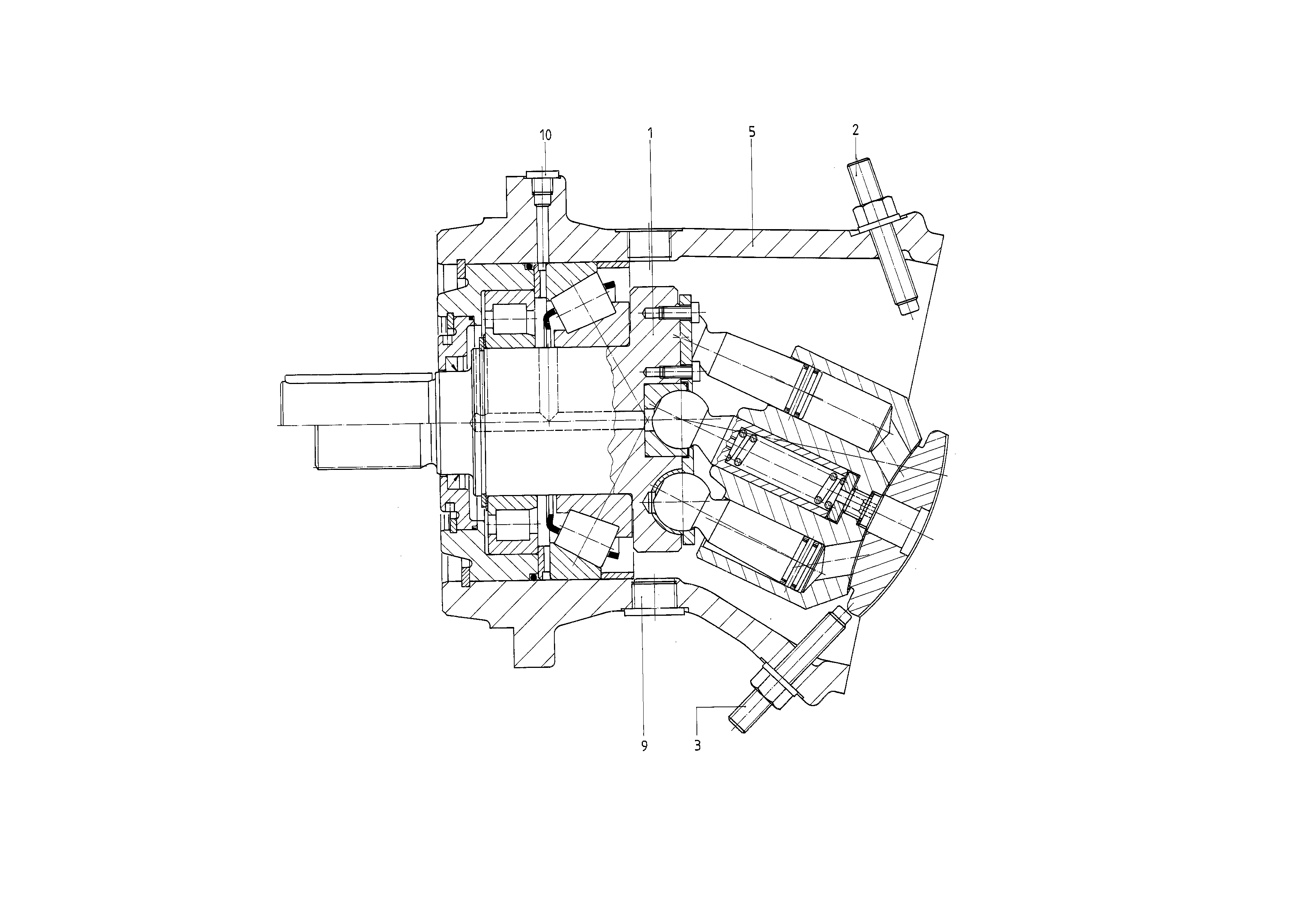

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910913141 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910910535 | ADJUSTING PART Assembly parts list →L | 1 | |
| 3 | R910910535 | ADJUSTING PART Assembly parts list →L | 1 | |
| 5 | R910910532 | PUMP HOUSING | 1 | |
| 9 | R909156652 | SCREW PLUGD | 1 | |
| R909153930 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 8-hole | H |
