Unit · BASE UNIT
G A10V O 71 OV /30L-PSC12N00 LR -SO 62R910913770
Base unit Bosch Rexroth series A10VO, type code GA10VO71OV/30L-PSC12N00LR-SO62, material number R910913770. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00).
- Number
- R910913770
- Type code
- G A10V O 71 OV /30L-PSC12N00 LR -SO 62
- Group
- A10VO 71
- Edition
- 06/2020

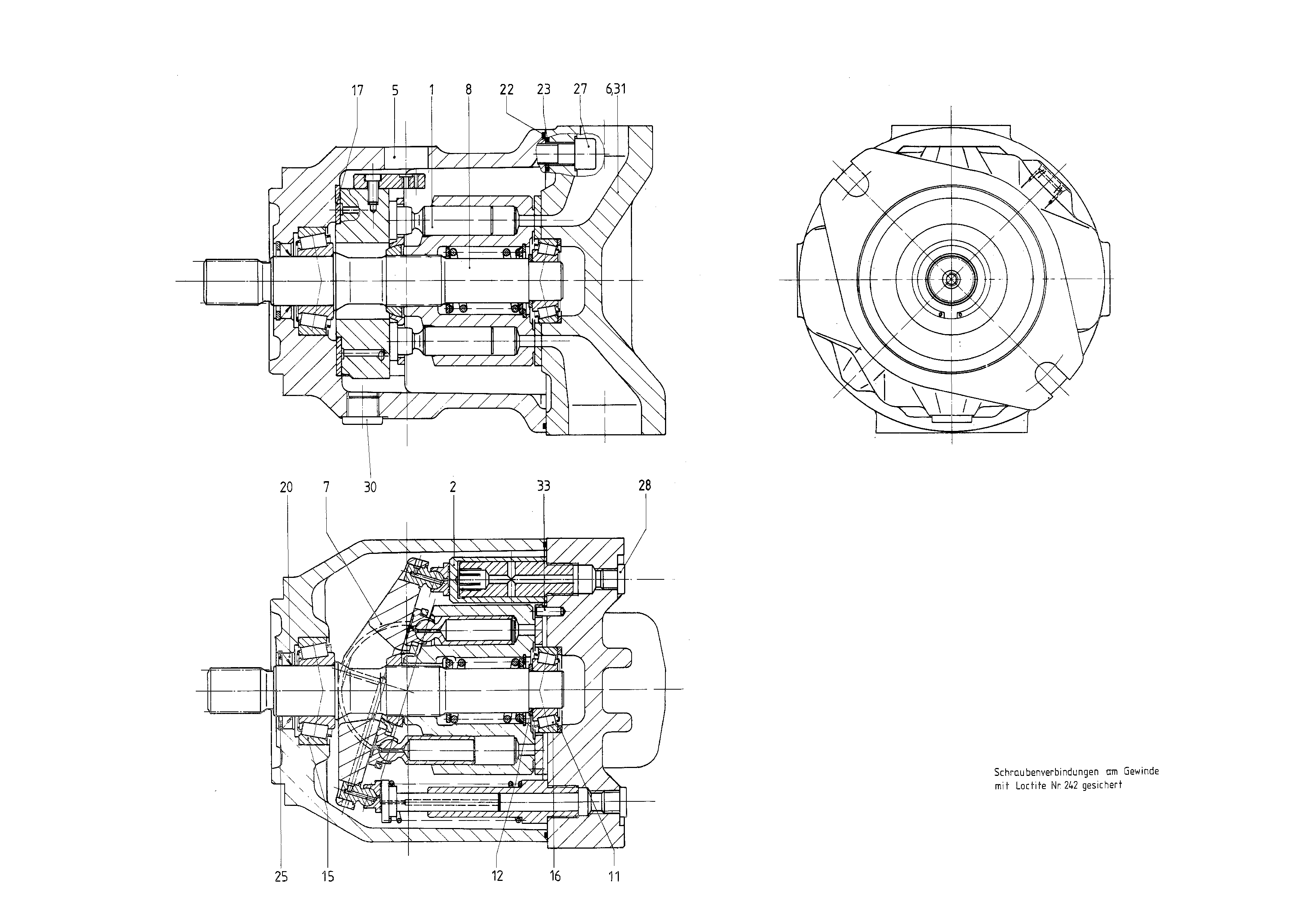

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910911929 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910873 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910917320 | PUMP HOUSING | 1 | ||
| R902426031 | CONNECTION PLATE | 1 | ||
| R910960947 | SWASH PLATE | 1 | ||
| R910998844 | DRIVE SHAFT | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| R910720194 | O-RINGD | 1 | ||
| R913052118 | R-RINGD | 4 | ||
| R910791555 | V-RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
