Unit · AXIAL-PISTON PUMP
AA10VSO45+DFR1/31R-PPA12K26-SO86R910913775
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45+DFR1/31R-PPA12K26-SO86, material number R910913775. Nominal size: NG 45. Operating mode: pump, open circuit (O).
- Number
- R910913775
- Type code
- AA10VSO45+DFR1/31R-PPA12K26-SO86
- Group
- A10VSO 45
- Edition
- 06/2020

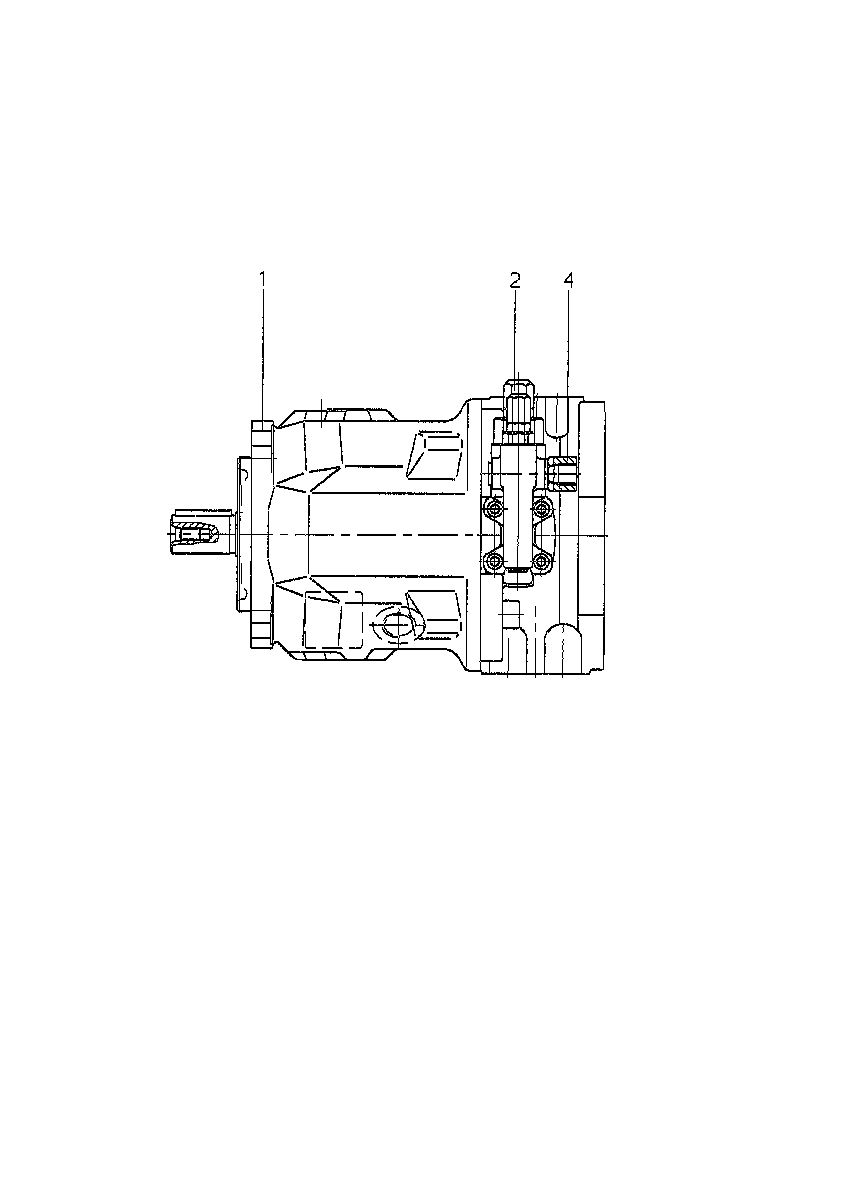

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910909846 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902460431 | CONTROL VALVE Assembly parts list →L | 1 | |
| 4 | R909154478 | SCREW PLUGD | 1 | |
| 5 | R910903523 | HUB | 1 | |
| 6 | R910109789 | SOCKET HEAD CAP SCREW | 2 | |
| 7 | R910186732 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
